THERMALTAKE Core P5 Ti ATX Mid Tower Cabinet (Space Grey)

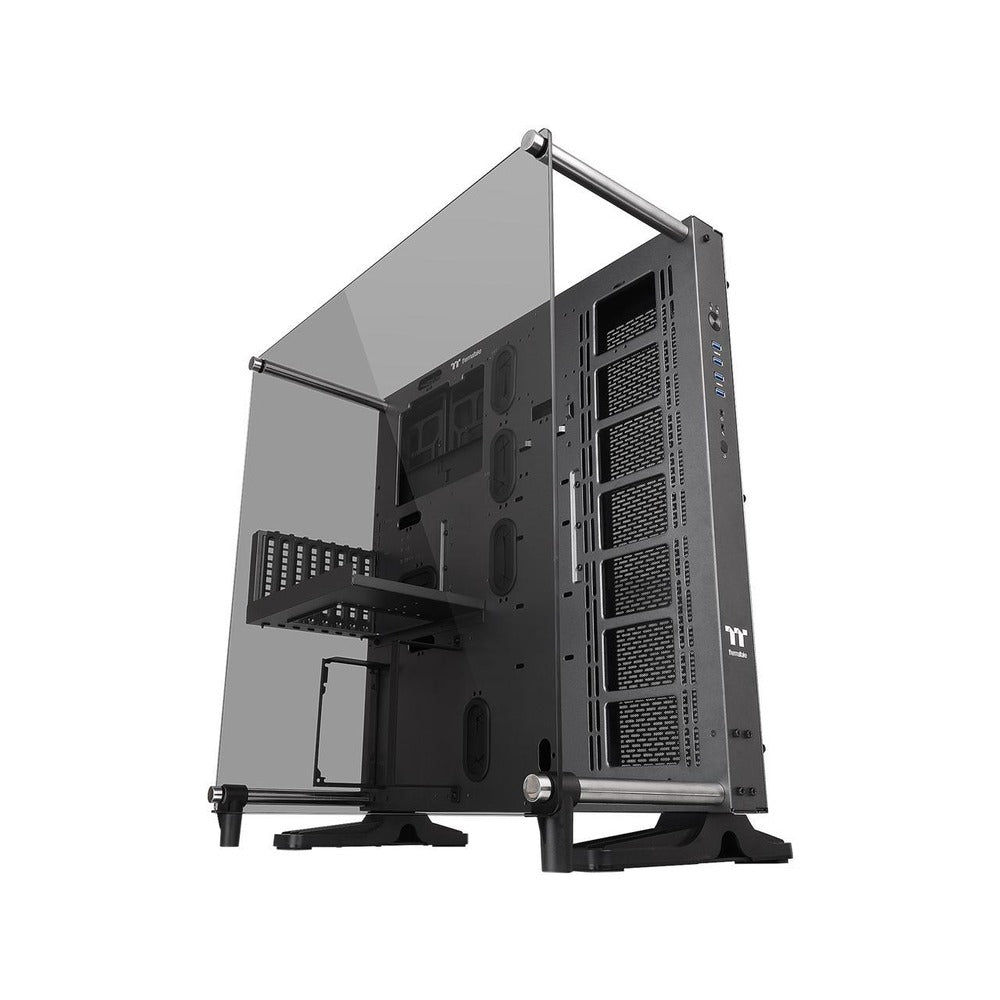

The Thermaltake Core P5 TG Ti is an ATX open-frame mid-tower PC cabinet finished in Space Grey, designed for PC enthusiasts who want full panoramic visibility of their build. Its defining feature is the fully open-frame construction paired with a 5mm-thick tempered glass panel secured by a stainless-steel mechanism, giving an unobstructed view of every component inside. The chassis carries Tt LCS Certification, Thermaltake’s in-house designation confirming compatibility with demanding liquid-cooling configurations. It supports radiators up to 480mm or 420mm on the left side and accommodates up to four 120mm or three 140mm fans in the same position. For air-cooling, tower coolers up to 180mm tall are supported. One of the standout attributes is the 3-Way Placement Layout: the case can be oriented vertically, horizontally, or wall-mounted (wall-mount hardware sold separately). The Dismantlable Modular Design (DMD) lets builders freely reconfigure panels, racks, and brackets without awkward screw placements. A rotation-capable motherboard tray supports Mini-ITX, Micro-ATX, and standard ATX boards and is compatible with AIO liquid coolers without requiring an additional bracket. GPU and PSU orientations are also flexible. Graphics cards up to 320mm fit without a reservoir, or up to 280mm when a reservoir is installed. An included riser cable enables vertical GPU mounting. PSU length is limited to 200mm, and the unit accepts a standard PS2 form-factor power supply (sold separately). Storage is handled by modular drive racks: one 3.5-inch or 2.5-inch HDD tray plus two 2.5-inch or 3.5-inch HDD bracket positions are accessible, while three additional 3.5-inch or 2.5-inch bays sit behind the motherboard tray. Removing drive bays opens up to 45mm of cable-management clearance. The I/O panel provides four USB 3.0 ports and one HD Audio combo jack; a Y-cable adapter for USB 3.1 and USB 2.0 motherboard headers is included. Verified Specifications: – Part Number: CA-1E7-00M9WN-00 – Model: Core P5 TG Ti | Series: Core – Case Type: Mid Tower (Open Frame) – Dimensions (H x W x D): 608 x 333 x 570 mm (23.9 x 13.1 x 22.4 in) – Color: Space Grey | Material: SGCC steel – Motherboard Support: Mini-ITX, Micro-ATX, ATX – Expansion Slots: 8 – Fan Support (Left): 4 x 120mm or 3 x 140mm – Radiator Support (Left): 1 x 480mm or 1 x 420mm – CPU Cooler Clearance: 180mm – GPU Clearance: 320mm (without reservoir), 280mm (with reservoir) – PSU Clearance: 200mm (Standard PS2, sold separately) – I/O: 4 x USB 3.0, 1 x HD Audio – Drive Bays: 1 x 3.5″/2.5″ (HDD tray), 2 x 2.5″/3.5″ (bracket), 3 x 3.5″/2.5″ (behind M/B tray) – Warranty: 3 Years
