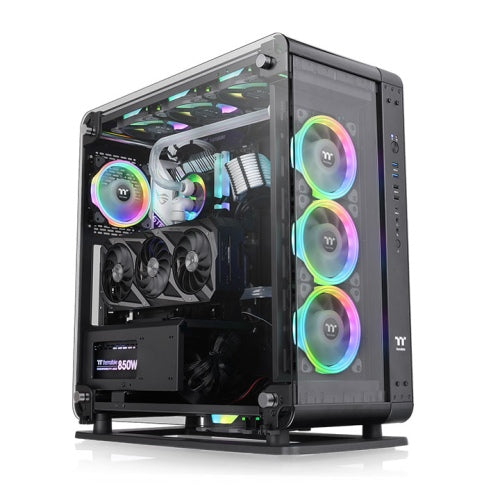

THERMALTAKE Core P6 ATX Mid Tower Cabinet (Black)

The Thermaltake Core P6 TG is a dual-form ATX mid tower chassis that bridges the gap between a traditional closed-panel build and a showpiece open-frame display. At its core is a transformable design philosophy: remove the front and top 4 mm tempered glass panels and the enclosure opens up entirely, giving enthusiasts unrestricted access to components and an unobstructed view of their liquid-cooling loop or RGB hardware. Three 4 mm tempered glass panels wrap the main viewing faces of the chassis, providing a clear, wide-angle window into the system from multiple angles. The case carries Tt LCS Certification, Thermaltake’s internal standard for chassis that have been validated against demanding liquid-cooling configurations. It supports up to a 360 mm radiator at the front, top, and right motherboard side, plus a 280 mm radiator at those same positions, and a 240 mm radiator at the bottom. Air-cooling flexibility is equally impressive: the chassis can accommodate up to thirteen 120 mm fans or eight 140 mm fans across front, top, right, bottom, and rear positions combined. A rotational PCI-E slot system (seven slots total, patented design) lets builders orient the graphics card either horizontally or vertically. A built-in PSU cover conceals cabling while maintaining adequate airflow, and an included L-shaped GPU support bracket helps bear the weight of heavy, high-end graphics cards during both horizontal and vertical GPU installations. Motherboard compatibility spans Mini-ITX (6.7″ × 6.7″), Micro-ATX (9.6″ × 9.6″), ATX (12″ × 9.6″), and CEB (12″ × 10.5″) form factors. Storage options include up to four 3.5″ HDD or eight 2.5″ SSD drive bays. The front I/O panel features one USB 3.2 Gen 2 Type-C port, two USB 3.0 ports, two USB 2.0 ports, and HD Audio. Three super-fine magnetic dust filters — positioned at the right side, top, and bottom — are removable for easy cleaning. The Dismantlable Modular Design (DMD) philosophy underpins the entire build process, allowing panels, racks, and brackets to be freely reconfigured. The chassis also supports wall-mounting or desktop vertical placement, offering flexible display options for showcase builds. Verified Specifications: P/N: CA-1V2-00M1WN-00 | Dimensions (H×W×D): 565 × 255 × 530 mm (22.2 × 10 × 20.9 in) | Net Weight: 17.84 kg / 39.33 lbs | Material: SPCC steel | Side Panels: 4 mm Tempered Glass × 3 | Expansion Slots: 7 (rotational patented) | Motherboard Support: Mini-ITX, Micro-ATX, ATX, CEB | I/O: USB 3.2 Gen 2 Type-C × 1, USB 3.0 × 2, USB 2.0 × 2, HD Audio × 1 | CPU Cooler Clearance: 180 mm | Max GPU Length: 458 mm (without radiator) | PSU Length: up to 200 mm (Standard PS2, optional) | Drive Bays: 4 × 3.5″ or 8 × 2.5″ | Color: Black
