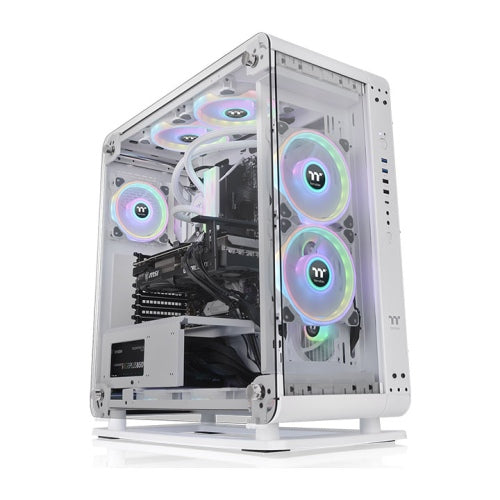

THERMALTAKE Core P6 ATX Mid Tower Cabinet (Snow)

The Thermaltake Core P6 TG Snow is a dual-form ATX mid-tower chassis that belongs to Thermaltake’s iconic open-frame Core Series. Bearing the part number CA-1V2-00M6WN-00 and finished in white, it is constructed from SPCC steel and features three 4mm tempered glass panels that provide panoramic visibility into the system. The case carries Tt LCS Certification, confirming it meets Thermaltake’s stringent standards for liquid-cooling compatibility. One of the Core P6 TG Snow’s defining characteristics is its transformable design. By removing the front and top tempered glass panels, the chassis converts from a conventional closed tower into an open-frame display case. It also supports two placement styles — vertical floor-standing and wall-mounted — so builders can orient the system however best suits their workspace or showcase setup. The seven rotational PCI-E expansion slots (a patented design) allow graphics cards to be mounted either horizontally or vertically, giving enthusiasts full flexibility over GPU orientation and presentation. A built-in PSU cover hides cables while maintaining ventilation, and an included L-shaped GPU support bracket reduces stress on PCI-E slots when housing heavy, high-end graphics cards. Cooling headroom is extensive. The chassis accommodates up to thirteen 120mm or eight 140mm fans across the front, top, rear, right motherboard side, and bottom positions. Radiator support reaches 360mm or 280mm at the front, top, and right motherboard side, making it equally suited to high-performance AIO and custom DIY liquid-cooling loops. Three removable magnetic dust filters on the right, top, and bottom help keep internals clean. Storage and connectivity are well-covered: up to four 3.5-inch HDDs or eight 2.5-inch SSDs can be installed, and the front I/O panel provides one USB 3.2 Gen 2 Type-C, two USB 3.0, two USB 2.0, and one HD Audio port. Verified Specifications: – P/N: CA-1V2-00M6WN-00 – Case Type: Mid Tower – Dimensions (H x W x D): 565 x 255 x 530 mm (22.2 x 10 x 20.9 in) – Net Weight: 17.84 kg / 39.33 lbs – Color: White (Snow) – Material: SPCC steel – Side Panels: 4mm tempered glass x 3 – Motherboard Support: Mini-ITX, Micro-ATX, ATX, CEB – Expansion Slots: 7 (rotatable, patented) – Drive Bays: 4 x 3.5-inch or 8 x 2.5-inch – Max CPU Cooler Height: 180mm – Max GPU Length: 458mm (without radiator) – Max PSU Length: 200mm – Fan Support: up to 13 x 120mm or 8 x 140mm total – Radiator Support: up to 360mm (front, top, right M/B side) – I/O: USB 3.2 Gen 2 Type-C x1, USB 3.0 x2, USB 2.0 x2, HD Audio x1 – PSU: Standard PS2 ATX (not included)
