Thermaltake CTE E550 TG Matcha Green E-ATX Mid Tower Case
MPN CA-1Z8-00MEWN-00 · Brand THERMALTAKE · ATX, E-ATX, mATX, Mini-ITX
The Thermaltake CTE E550 TG Matcha Green is a dual-chamber E-ATX mid-tower with three 4 mm tempered glass panels, up to 420 mm AIO radiator support, and a three-way GPU installation system — combining panoramic aesthetics with broad hardware compatibility
Inclusive of GST · GST invoice available
Overview
The Thermaltake CTE E550 TG Matcha Green is a dual-chamber mid-tower chassis finished in a distinctive Matcha Green colourway. Its three 4 mm tempered glass panels — front, left side, and rear — create a near-panoramic window into your build, showcasing components from angles typically reserved for open-frame frames. The dual-chamber layout keeps cables and power supplies neatly hidden in the right compartment, while the left motherboard chamber remains clean and visually uncluttered. One of the CTE E550 TG's standout features is its three-way GPU installation system. You can position your graphics card horizontally in the traditional configuration, mount it vertically in a floating arrangement using the enclosed bracket (a separately sold 400 mm PCIe 4.0 riser cable is required), or orient it upright-forward so the cooler faces the side panel. This flexibility lets builders highlight flagship GPUs rather than hide them. The chassis is engineered for next-generation motherboard compatibility. Alongside standard Mini-ITX, Micro-ATX, ATX, and E-ATX (up to 12" × 10.5") boards, it accommodates hidden-connector motherboards from ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth series, routing power and data cables behind the board for an ultra-clean aesthetic. Cooling headroom is generous. Up to eight 120 mm fans (or six 140 mm fans) can be installed across the top, motherboard side, and bottom positions. AIO radiators up to 420 mm are supported on the motherboard side, up to 360 mm at the bottom (DIY only), and up to 240 mm at the top. A CPU cooler up to 166 mm tall and a GPU up to 443.8 mm long (without radiator, 415 mm with) fit comfortably. Cable management is aided by numerous anchor points, Velcro straps, and cable ties included in the accessory box. Front I/O on the top panel includes two USB 3.0 ports, one USB 3.2 Gen 2 Type-C port, and HD Audio. Fine mesh dust filters at the top, bottom, and right side are removable for easy cleaning. Verifiable Specifications: • Model: CTE E550 TG Matcha Green | Part No.: CA-1Z8-00MEWN-00 • Case Type: Mid Tower | Colour: Matcha Green • Dimensions (H × W × D): 558.5 × 270 × 513 mm (21.99 × 10.63 × 20.2 in) • Net Weight: 14.5 kg / 31.97 lbs • Panel: 4 mm Tempered Glass × 3 | Material: SPCC + Tempered Glass • Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX (up to 12" × 10.5") • Expansion Slots: 7 • Drive Bays: 3 × 3.5" HDD or 2 × 3.5" + 2 × 2.5" SSD • Fan Support: Up to 8 × 120 mm or 6 × 140 mm (top, M/B side, bottom) • Radiator Support: Up to 420 mm (M/B side & bottom DIY); up to 240 mm (top) • Max CPU Cooler Height: 166 mm • Max GPU Length: 443.8 mm (no radiator) / 415 mm (with radiator) • Max PSU Length: 220 mm (Standard PS2) • I/O: 2 × USB 3.0, 1 × USB Type-C, HD Audio • Warranty: 3 Years

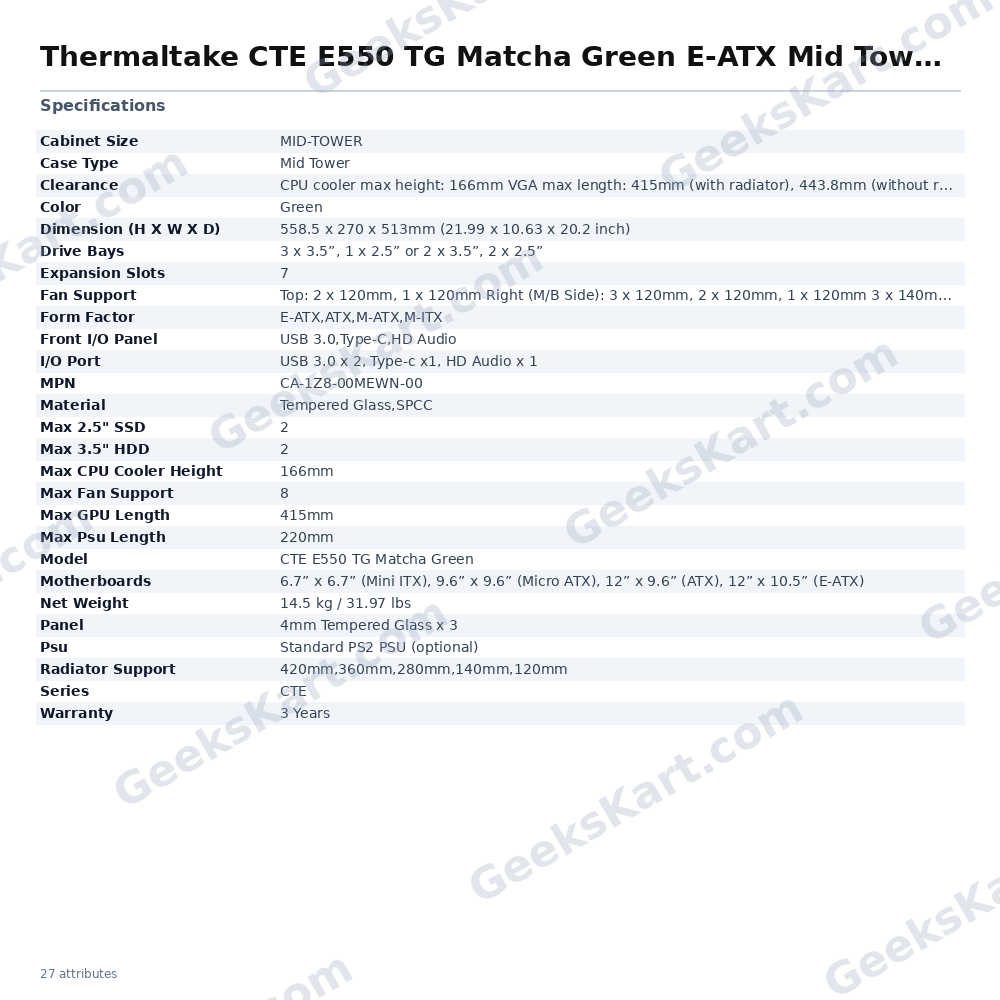

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX, E-ATX, mATX, Mini-ITX |
| color | Green |
| Psu | Standard PS2 PSU (optional) |
| Panel | 4mm Tempered Glass x 3 |
| Series | CTE |
| I/O Port | USB 3.0 x 2, Type-c x1, HD Audio x 1 |
| Material | Tempered Glass,SPCC |
| Case Type | Mid Tower |
| Clearance | CPU cooler max height: 166mm VGA max length: 415mm (with radiator), 443.8mm (without radiator) PSU max length: 220mm |
| Drive Bays | 3 x 3.5”, 1 x 2.5” or 2 x 3.5”, 2 x 2.5” |
| Model | CTE E550 TG Matcha Green |
| Net Weight | 14.5 kg / 31.97 lbs |
| Fan Support | Top: 2 x 120mm, 1 x 120mm Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2x 140mm, 1 x 140mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2x 140mm, 1 x 140mm |
| Cabinet Size | MID-TOWER |
| Max 2.5" SSD | 2 |
| Max 3.5" HDD | 2 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 10.5” (E-ATX) |
| Max GPU Length | 415mm |
| Max Psu Length | 220mm |
| Expansion Slots | 7 |
| Front I/O Panel | USB 3.0,Type-C,HD Audio |
| Max Fan Support | 8 |
| Radiator Support | 420mm,360mm,280mm,140mm,120mm |
| Dimension (H X W X D) | 558.5 x 270 x 513mm (21.99 x 10.63 x 20.2 inch) |
| Max CPU Cooler Height | 166mm |
