THERMALTAKE H330 ATX Mid Tower Cabinet (Black)

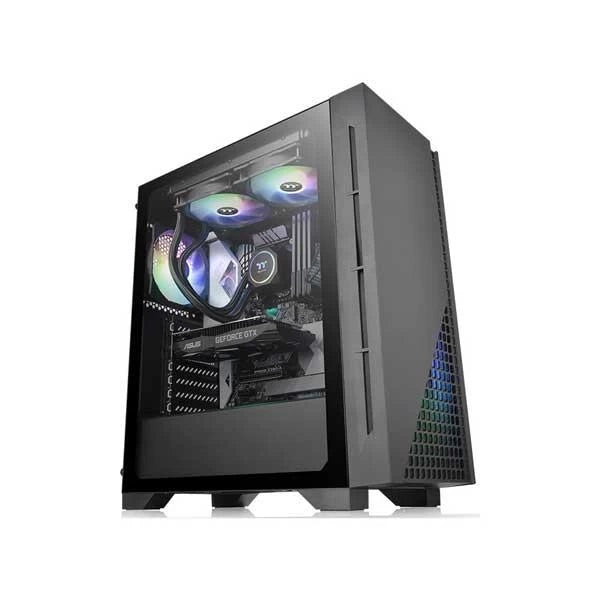

The Thermaltake H330 TG is an ATX mid tower chassis from Thermaltake’s H Series, designed to balance clean aesthetics with practical airflow. Its mesh front panel promotes strong front intake while keeping the exterior streamlined. The left-side 4mm tempered glass panel lets you display your internal components without sacrificing structural rigidity — tempered glass at this thickness is notably more resistant to scratches and impact than standard acrylic panels. Airflow and cooling flexibility are central to the H330 TG. One 120 x 120 x 25 mm rear exhaust fan comes preinstalled, running at 1000 RPM and rated at 16 dBA for quiet baseline operation. The case can accommodate up to three 120mm, two 140mm, or two 200mm fans at the front, and up to two 120mm or two 140mm fans on the top. For liquid cooling enthusiasts, the front supports radiators up to 360mm and the top supports up to 240mm, giving you room to build a robust custom loop or drop in an AIO cooler. The full-length PSU shroud hides cables at the base and includes ventilation cutouts to maintain airflow around the power supply. A magnetic dust filter on the top panel and additional filters at the base help reduce particulate build-up over time, making maintenance more manageable. Motherboard compatibility spans Mini-ITX (6.7″ x 6.7″), Micro-ATX (9.6″ x 9.6″), and ATX (12″ x 9.6″) form factors, with seven expansion slots. The front I/O panel provides one USB 3.0 port, two USB 2.0 ports, and one HD Audio jack for convenient daily access. Storage options include two 3.5-inch or 2.5-inch drive bays via the HDD rack and two additional 2.5-inch drive positions via HDD brackets. Verified Specifications: • Part Number: CA-1R8-00M1WN-00 • Case Type: Mid Tower • Dimensions (H x W x D): 419 x 210 x 480 mm (16.5 x 8.27 x 18.9 in) • Net Weight: 6.12 kg / 13.49 lb • Material: SPCC steel • Side Panel: 4mm Tempered Glass (left) • Colour: Black (exterior and interior) • Preinstalled Fan: 1 x 120mm rear exhaust (1000 RPM, 16 dBA) • Fan Support — Front: up to 3 x 120mm / 2 x 140mm / 2 x 200mm; Top: up to 2 x 120mm / 2 x 140mm; Rear: 1 x 120mm • Radiator Support — Front: up to 360mm; Top: up to 240mm; Rear: 120mm • CPU Cooler Clearance: 150mm • GPU Length Clearance: 300mm • RAM Height Clearance: 60mm (with radiator series) • PSU Length: 160mm (with HDD rack) / 200mm (without HDD rack); Standard PS2 form factor • Drive Bays: 2 x 3.5″ or 2.5″ (HDD rack) + 2 x 2.5″ (HDD bracket) • Expansion Slots: 7 • I/O: 1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio • Warranty: 3 Years
