Thermaltake H590 TG White ARGB E-ATX Mid Tower Case
MPN CA-1X4-00M6WN-00 · Brand THERMALTAKE · ATX, E-ATX, mATX, Mini-ITX
The Thermaltake H590 TG Snow ARGB mid-tower case supports E-ATX motherboards, 360mm radiators front and top, and features dual ARGB lighting strips with a 4mm hinged tempered glass panel in a clean white finish
Inclusive of GST · GST invoice available
Overview
The Thermaltake H590 TG Snow ARGB is a white mid-tower chassis built for enthusiast-grade PC builds that demand both visual appeal and thermal flexibility. Its standout front panel carries two ARGB lighting strips arranged around a T-shaped pillar, creating a distinctive illuminated look that can be adjusted via the dedicated LED button on the I/O panel or through motherboard software from ASUS, GIGABYTE, MSI, and ASRock—offering seamless integration with popular RGB ecosystems without extra controllers. Built on an SPCC steel frame with a 4mm hinged tempered glass side panel, the H590 TG Snow provides a clear view of internal components while remaining durable and scratch-resistant. The hinged mechanism makes access quick and straightforward during builds or upgrades. A full-length PSU shroud keeps cabling tidy and maintains airflow toward storage drives and the power supply unit. Cooling headroom is a key strength of this chassis. Two 120mm standard fans (1,100 RPM, 22.5 dBA each) come pre-installed—one at the front for intake and one at the rear for exhaust—giving you a functional thermal baseline out of the box. Beyond that, the front panel accommodates up to three 120mm or three 140mm fans, while the top supports up to three 120mm or two 140mm fans. For liquid cooling, the front and top positions each support radiators up to 360mm, making it straightforward to mount a 360mm AIO cooler in either location. Motherboard compatibility spans Mini-ITX (6.7" × 6.7"), Micro-ATX (9.6" × 9.6"), ATX (12" × 9.6"), and E-ATX (12" × 13"), giving builders flexibility across platform sizes. Seven expansion slots handle multi-GPU or high-lane-count add-in cards. A single magnetic dust filter on the top panel helps reduce particulate ingress. Verified Specifications: - Part Number: CA-1X4-00M6WN-00 - Model: H590 TG ARGB Snow - Case Type: Mid Tower - Dimensions (H × W × D): 487 × 216 × 467 mm (19.2 × 8.5 × 18.4 in) - Net Weight: 7.45 kg (16.42 lbs) - Material: SPCC steel + 4mm tempered glass side panel - Color: White - Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX (up to 12" × 13") - Pre-installed Fans: 2 × 120mm standard (1,100 RPM, 22.5 dBA) - Fan Support: Front up to 3 × 120mm or 3 × 140mm; Top up to 3 × 120mm or 2 × 140mm; Rear 1 × 120mm (7 fans total) - Radiator Support: Front & Top up to 360mm; Rear 120mm - Drive Bays: 2 × 3.5", 2 × 2.5" (or 4 × 2.5" configuration) - Expansion Slots: 7 - I/O Panel: 2 × USB 3.0, HD Audio, ARGB LED button - CPU Cooler Clearance: 160mm - GPU Length Clearance: 360mm - PSU Length Clearance: 180mm (with HDD rack) - PSU Standard: PS2 (not included) - Warranty: 3 Years

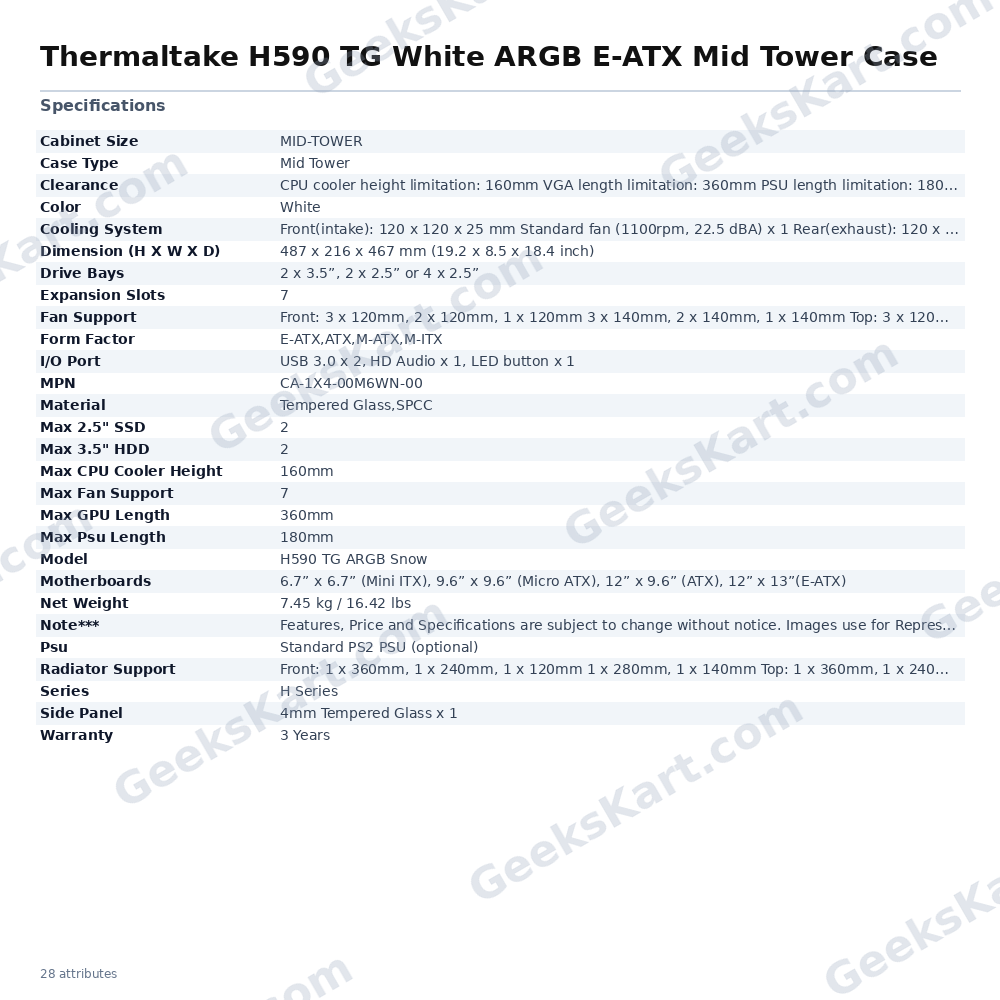

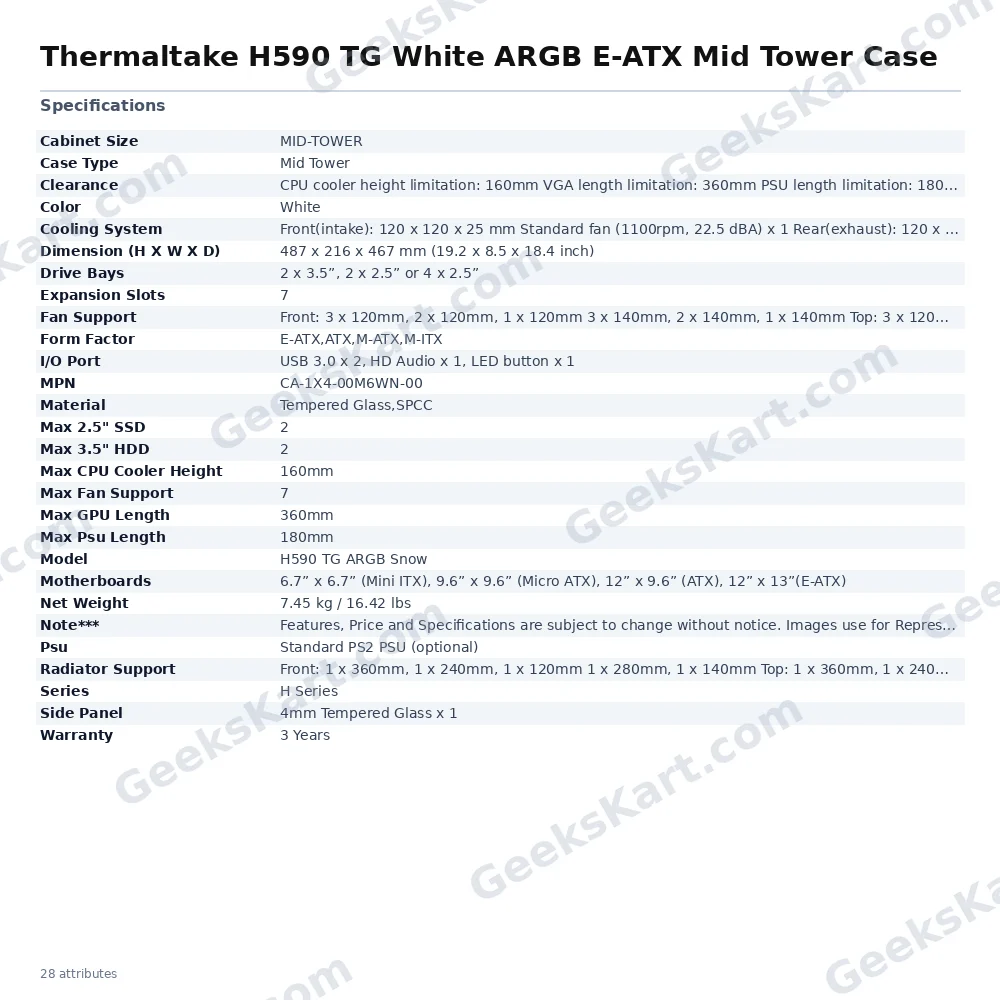

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX, E-ATX, mATX, Mini-ITX |
| color | White |
| Psu | Standard PS2 PSU (optional) |
| Model | H590 TG ARGB Snow |
| Series | H Series |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| I/O Port | USB 3.0 x 2, HD Audio x 1, LED button x 1 |
| Material | Tempered Glass,SPCC |
| Case Type | Mid Tower |
| Clearance | CPU cooler height limitation: 160mm VGA length limitation: 360mm PSU length limitation: 180mm |
| Drive Bays | 2 x 3.5”, 2 x 2.5” or 4 x 2.5” |
| Net Weight | 7.45 kg / 16.42 lbs |
| Side Panel | 4mm Tempered Glass x 1 |
| Fan Support | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm Rear: 1 x 120mm |
| Cabinet Size | MID-TOWER |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX) |
| Max 2.5" SSD | 2 |
| Max 3.5" HDD | 2 |
| Cooling System | Front(intake): 120 x 120 x 25 mm Standard fan (1100rpm, 22.5 dBA) x 1 Rear(exhaust): 120 x 120 x 25 mm Standard fan (1100rpm, 22.5 dBA) x 1 |
| Max GPU Length | 360mm |
| Max Psu Length | 180mm |
| Expansion Slots | 7 |
| Max Fan Support | 7 |
| Radiator Support | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm |
| Dimension (H X W X D) | 487 x 216 x 467 mm (19.2 x 8.5 x 18.4 inch) |
| Max CPU Cooler Height | 160mm |
