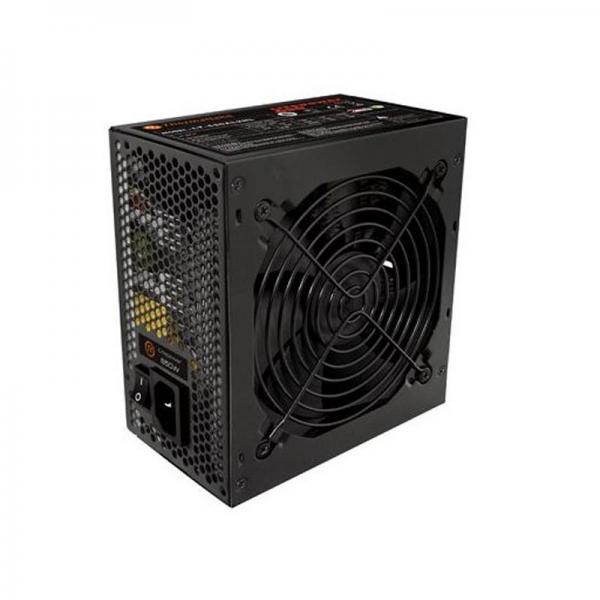

THERMALTAKE Litepower 650W Non Modular ATX 2.0 Power Supply

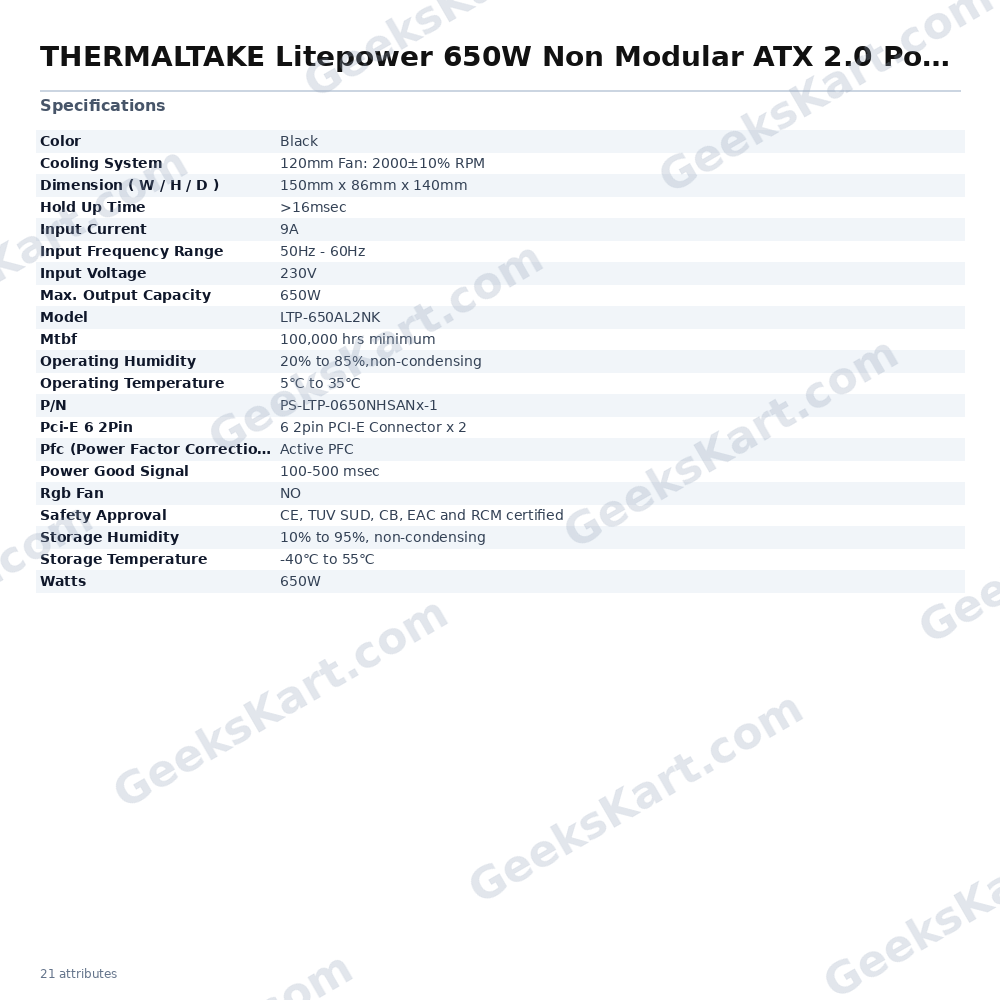

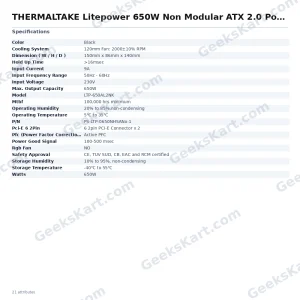

The Thermaltake Litepower 650W (Model: LTP-650AL2NK, P/N: PS-LTP-0650NHSANx-1) is a non-modular ATX power supply designed for desktop PC builds that demand stable, continuous power delivery. Conforming to the ATX 12V 2.3 specification, it provides a maximum output capacity of 650W and operates at an efficiency of up to 85%, helping to reduce energy consumption during daily use. A single +12V rail architecture underpins the unit’s power delivery, channelling dedicated output to the most demanding components in your system. The Active PFC (Power Factor Correction) circuit ensures cleaner power draw from the wall, which is especially useful on 230V single-phase supplies. Two 6+2-pin PCIe connectors allow connection of a discrete graphics card, while the extra-long 550mm EPS/ATX 12V 4+4-pin CPU cable provides sufficient reach in full-tower chassis. The 24-pin motherboard cable features sleeving to aid cable management and reduce airflow obstruction inside the case. Cooling is handled by a 120mm fan running at 2000 ±10% RPM, maintaining airflow at a comparatively low acoustic level without an RGB lighting element (RGB Fan: No). The unit ships in a black finish and measures 150mm × 86mm × 140mm (W/H/D), fitting standard ATX form-factor cases. Key Specifications: • Model: LTP-650AL2NK | P/N: PS-LTP-0650NHSANx-1 • Max Output Capacity: 650W • ATX Standard: ATX 12V 2.3 • Efficiency: Up to 85% • PFC: Active PFC • Input Voltage: 230V | Input Current: 9A | Frequency: 50–60Hz • Cooling: 120mm Fan at 2000 ±10% RPM • PCIe Connectors: 2× 6+2-pin • Dimensions (W/H/D): 150mm × 86mm × 140mm • Operating Temperature: 5°C to 35°C • Operating Humidity: 20% to 85%, non-condensing • Storage Temperature: -40°C to 55°C • Storage Humidity: 10% to 95%, non-condensing • Hold-Up Time: >16ms | Power Good Signal: 100–500ms • MTBF: 100,000 hours minimum • Safety Certifications: CE, TÜV SÜD, CB, EAC, RCM • Color: Black Safety certifications from CE, TÜV SÜD, CB, EAC, and RCM provide assurance that the unit has passed recognised international electrical safety standards. With an MTBF rating of 100,000 hours minimum, the Litepower 650W is a dependable non-modular option for mid-range and budget-conscious PC builds
