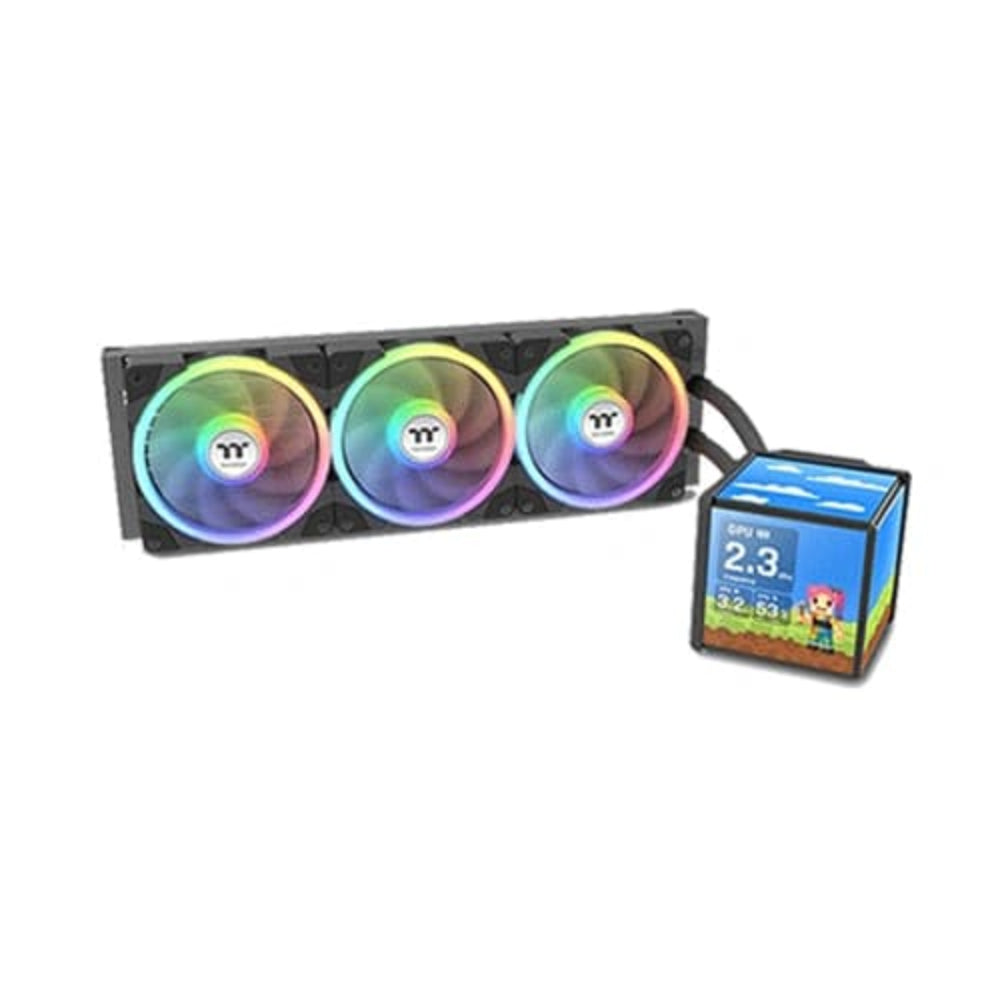

THERMALTAKE Minecube 360 Ultra ARGB Sync 360mm CPU Liquid Cooler ( Black )

The Thermaltake Minecube 360 Ultra ARGB Sync is a 360mm all-in-one CPU liquid cooler that sets itself apart through its patented Quad-LCD Cube Display — four independent 3.95-inch TFT-LCD panels, each running at 720×720 (RGB) resolution, that can operate individually or merge into a single seamless multi-screen canvas. Whether you want live system telemetry, custom artwork, or a blend of both, the bundled TT LCD Screen Software gives you granular control over layout, fonts, colours, and background imagery without any hardware changes. Three SWAFAN EX 120mm PWM fans are included, each featuring the Swappable Fan Blade Design so you can switch between standard and reversed blades — changing airflow direction from intake to exhaust and back — without losing the dual-ring ARGB lighting effect. The upgraded MagForce 2.0 connector uses Pogo pin contact pads that are twice the size of the previous generation, reducing misalignment during daisy-chain or cable connections and streamlining cable management inside your chassis. The slim 27mm aluminium radiator (396 × 120 × 27 mm) incorporates a thickened 20mm copper chamber that enlarges the thermal exchange surface while keeping installation straightforward in standard 360mm radiator mounts. The copper base plate maximises contact and thermal conductivity with the CPU heat spreader, and the pump runs at 1500–3300 RPM (PWM) on 12V/0.43A for efficient coolant circulation. A dedicated VRM fan built into the water block spins at up to 3500 RPM, actively cooling the surrounding VRM components, motherboard area, and the LCD display electronics — preventing localised heat build-up even under sustained heavy loads. Socket compatibility is broad: Intel LGA2066, LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, and LGA1150, plus AMD AM5, AM4, AM3+, and AM3. The LCD display interface uses Micro USB to a 9-pin USB header, and software support is limited to Windows 10 and 11. Verifiable Specifications: • Model: CL-W481-PL12SW-A • Radiator: 396 × 120 × 27 mm aluminium, 360W TDP rating • Fans: 3 × 120 × 120 × 25 mm SWAFAN EX, PWM 500–2000 RPM, 12V/5V • Fan airflow (standard blade): 57.11 CFM per fan; (reverse blade): 56.26 CFM per fan • Fan static pressure (standard): 2.39 mm-H₂O; (reverse): 2.02 mm-H₂O • Fan noise (standard): 30.6 dB-A; (reverse): 32.5 dB-A • Pump: PWM 1500–3300 RPM, 12V, 0.43A, 5.16W • VRM/pump fan: 3500 RPM max, 12V, 0.06A, 0.72W, 20 dB-A, 6.8 CFM • Displays: 4 × 3.95-inch TFT-LCD, 720×720 px, 5V/1.2A/6W • Tubes: 460mm rubber • Warranty: 2 years • Lighting: ARGB Sync • PWM control: Yes
