THERMALTAKE S200 ARGB ATX Mid Tower Cabinet (White)
MPN CA-1X2-00M6WN-00 · Brand Thermaltake · ATX, mATX, Mini-ITX

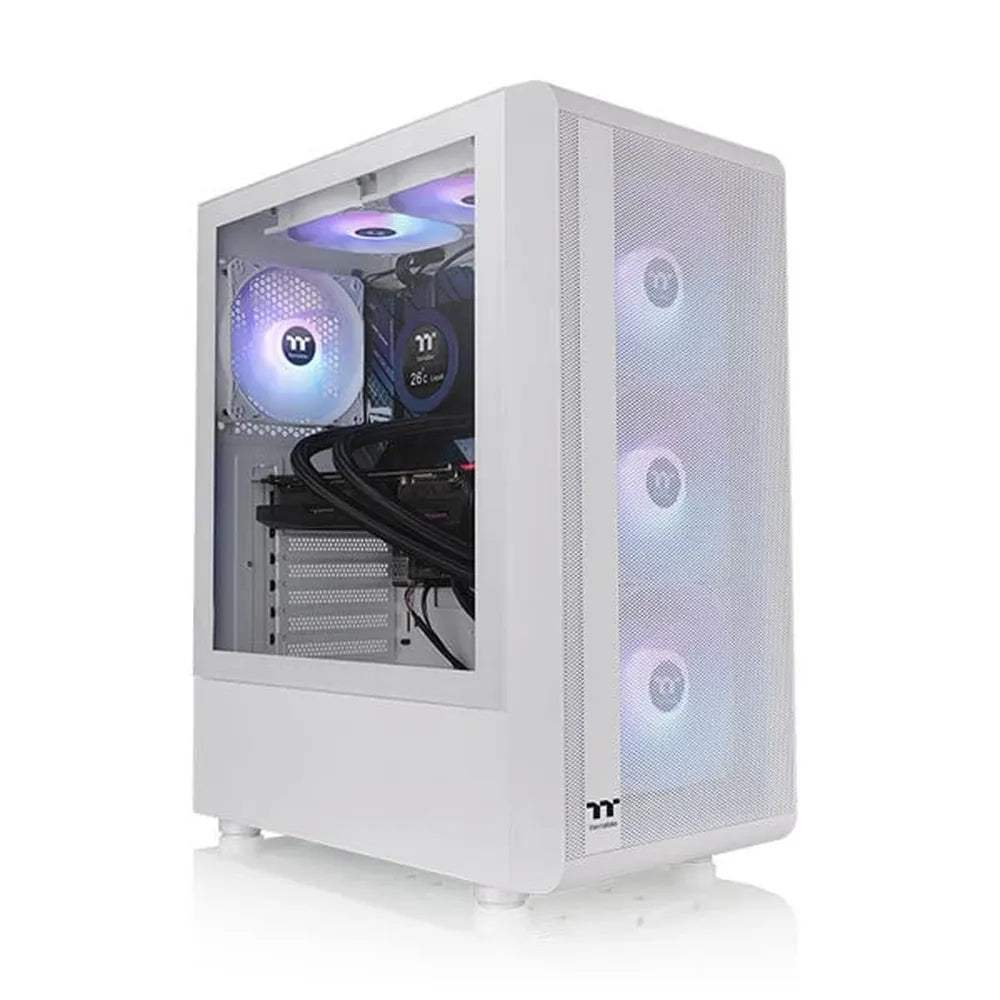

The Thermaltake S200 TG ARGB White Mid Tower Cabinet features a mesh front panel, three pre-installed 120 mm ARGB Lite fans, a 3 mm tempered glass side panel, and support for up to a 360 mm radiator — offering excellent airflow and RGB versatility for ATX, Micro-ATX, and Mini-ITX builds
Inclusive of GST · GST invoice available
Overview

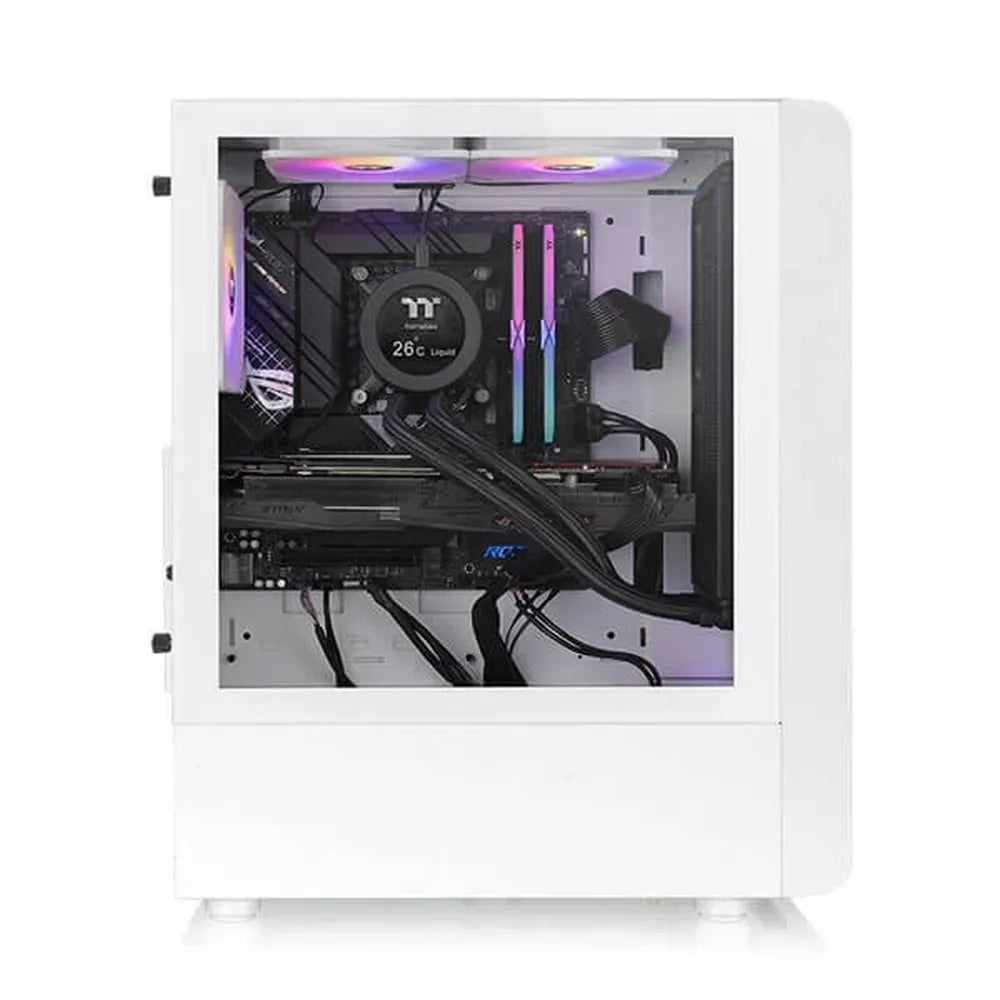

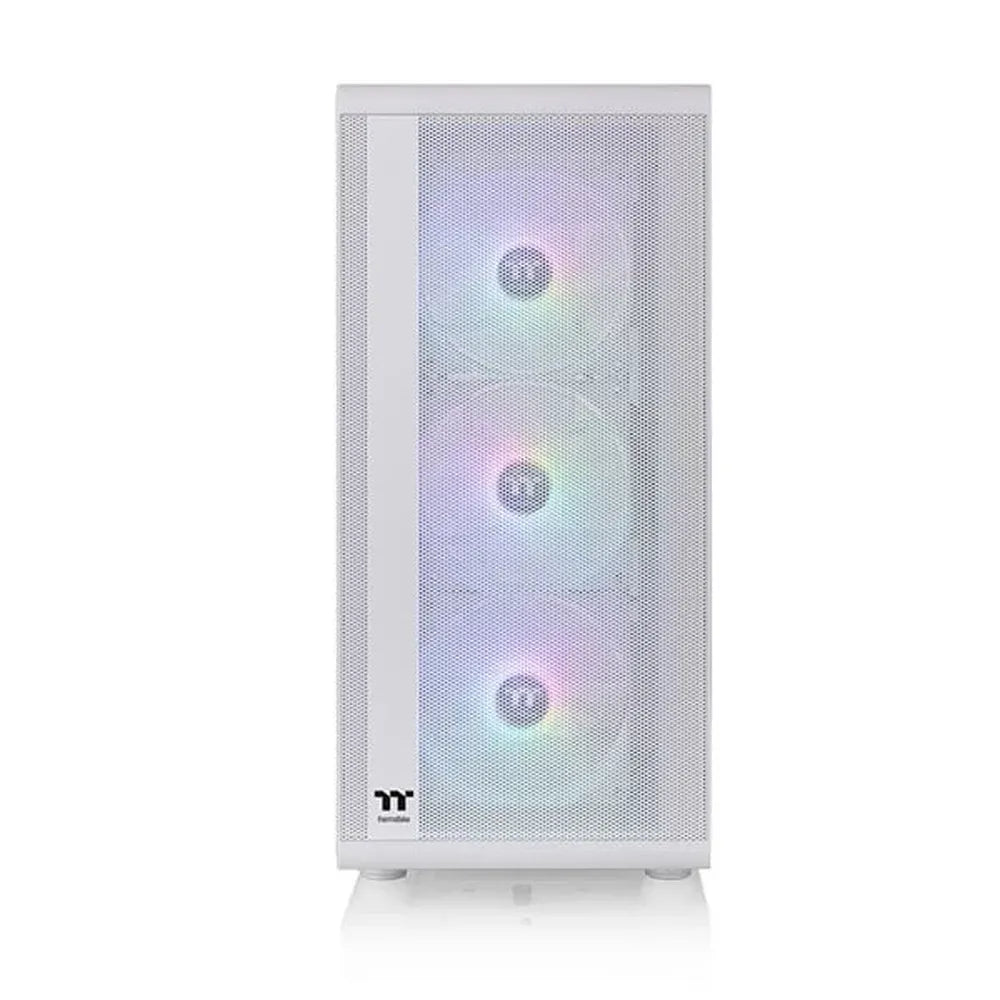

The Thermaltake S200 TG ARGB (Snow) is a well-rounded ATX mid-tower cabinet designed for builders who want strong airflow, vibrant RGB lighting, and a clean white aesthetic. At its core, the case ships with three pre-installed 120 mm ARGB Lite fans at the front intake, each rated at 1,000 RPM and 22.3 dBA, using hydraulic bearings for quiet, long-lasting operation. The full-size mesh front panel promotes maximum airflow into the chassis, keeping your components cool during extended sessions. The left side panel is made from a single piece of 3 mm tempered glass — thicker and more scratch-resistant than standard acrylic panels — offering an unobstructed view of your build. A full-length PSU shroud keeps cable management tidy while maintaining clear airflow paths to the power supply and storage drives. RGB synchronisation is handled natively through a 5 V ARGB header, making the fans fully compatible with ASUS Aura Sync, GIGABYTE RGB Fusion 2.0, MSI Mystic Light Sync, and ASRock Polychrome Sync — no proprietary controller software is required. Cooling flexibility is a highlight: the front supports up to a 360 mm radiator, the top accommodates a 240 mm radiator, and the rear fits a 120 mm radiator or fan. Overall fan support spans front (up to 3 × 120 mm or 2 × 140 mm), top (up to 2 × 120 mm or 2 × 140 mm), and rear (1 × 120 mm), giving you up to six 120 mm positions in total. The chassis is built from SPCC steel, measures 460 × 210 × 395.3 mm (H × W × D), and weighs 4.8 kg. It accommodates ATX, Micro-ATX, and Mini-ITX motherboards across seven expansion slots. CPU coolers up to 166 mm tall and graphics cards up to 330 mm long (300 mm with a front radiator installed) will fit without issue. The PSU bay accepts standard PS2 units up to 190 mm in length when an HDD cage is installed. Storage options are flexible: the drive bay configuration supports either 2 × 3.5-inch HDD plus 2 × 2.5-inch SSD, or 1 × 3.5-inch HDD plus 3 × 2.5-inch SSD. Front I/O on the top panel includes two USB 3.0 ports and one HD Audio combo jack for convenient everyday connectivity. Thermaltake backs this cabinet with a 3-year warranty. Verified Specifications: • Part Number: CA-1X2-00M6WN-00 • Series: S Series | Case Type: Mid Tower | Color: White • Dimensions (H × W × D): 460 × 210 × 395.3 mm (18.11 × 8.27 × 15.56 in) • Net Weight: 4.8 kg / 10.6 lbs • Material: SPCC Steel • Panel: 3 mm Tempered Glass × 1 (left side) • Motherboard Support: ATX (12" × 9.6"), Micro-ATX (9.6" × 9.6"), Mini-ITX (6.7" × 6.7") • Expansion Slots: 7 • Pre-installed Fans: 3 × 120 × 120 × 25 mm ARGB Lite (1,000 RPM, 22.3 dBA, hydraulic bearing) • Fan Support — Front: 3 × 120 mm / 2 × 140 mm; Top: 2 × 120 mm / 2 × 140 mm; Rear: 1 × 120 mm • Radiator Support — Front: up to 360 mm; Top: up to 240 mm; Rear: 120 mm • CPU Cooler Clearance: 166 mm max • GPU Clearance: 330 mm (without radiator) / 300 mm (with front radiator) • PSU Clearance: 190 mm (with HDD cage); Standard PS2 form factor • Drive Bays: 2 × 3.5" + 2 × 2.5" or 1 × 3.5" + 3 × 2.5" • I/O: USB 3.0 × 2, HD Audio × 1 • RGB Sync: 5 V ARGB header; compatible with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, ASRock Polychrome Sync • Warranty: 3 Years

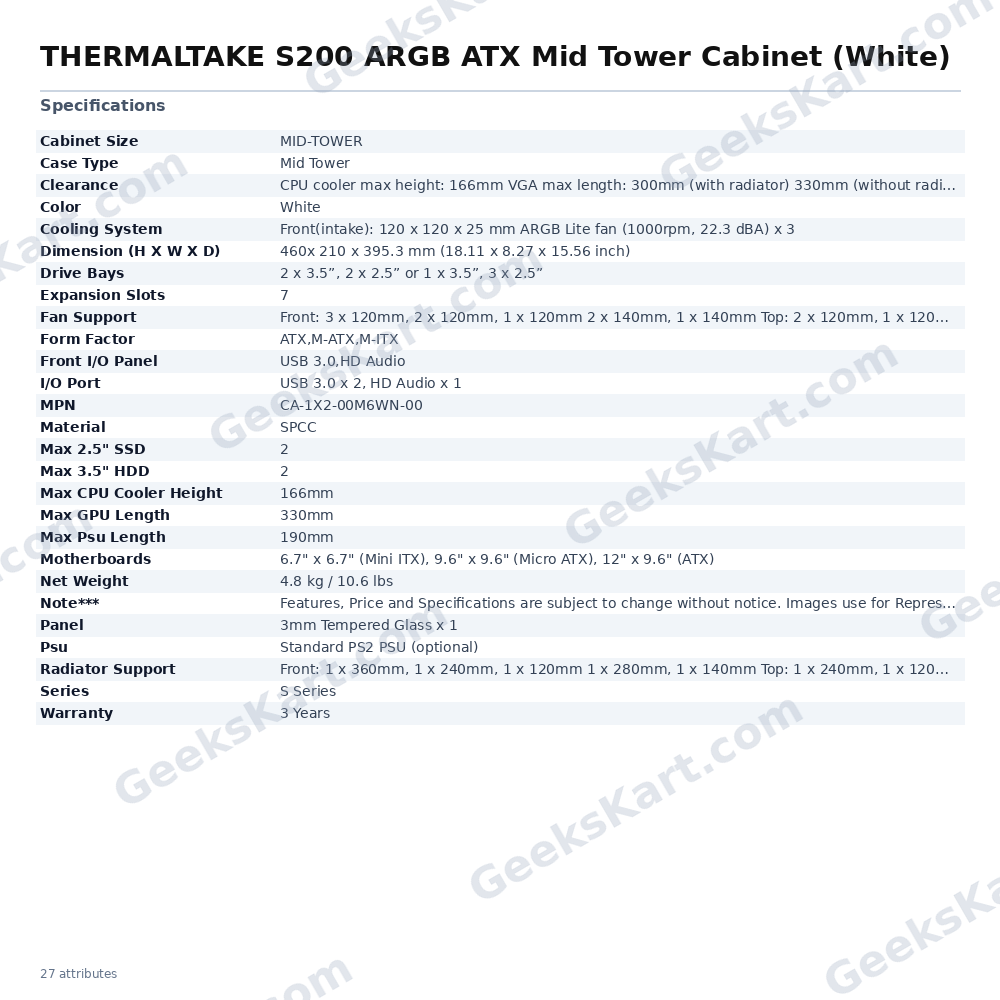

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX, mATX, Mini-ITX |
| color | White |
| Psu | Standard PS2 PSU (optional) |
| Panel | 3mm Tempered Glass x 1 |
| Series | S Series |
| I/O Port | USB 3.0 x 2, HD Audio x 1 |
| Material | SPCC |
| Case Type | Mid Tower |
| Clearance | CPU cooler max height: 166mm VGA max length: 300mm (with radiator) 330mm (without radiator) PSU max length: 190mm (with HDD Cage) |
| Drive Bays | 2 x 3.5”, 2 x 2.5” or 1 x 3.5”, 3 x 2.5” |
| Net Weight | 4.8 kg / 10.6 lbs |
| Fan Support | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Rear: 1 x 120mm |
| Motherboards | 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) |
| Cooling System | Front(intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 3 |
| Expansion Slots | 7 |
| Radiator Support | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 240mm, 1 x 120mm Rear: 1 x 120mm |
| Dimension (H X W X D) | 460x 210 x 395.3 mm (18.11 x 8.27 x 15.56 inch) |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Cabinet Size | MID-TOWER |
| Max 2.5" SSD | 2 |
| Max 3.5" HDD | 2 |
| Max GPU Length | 330mm |
| Max Psu Length | 190mm |
| Front I/O Panel | USB 3.0,HD Audio |
| Max CPU Cooler Height | 166mm |
