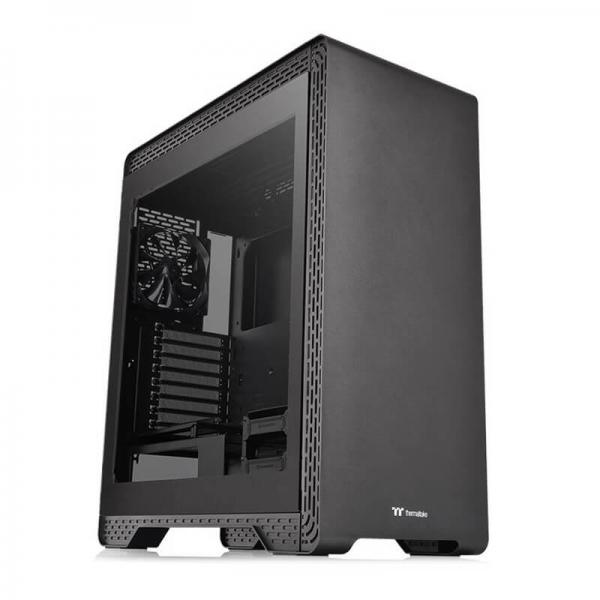

THERMALTAKE S500 ATX Mid Tower Cabinet (Black)

The Thermaltake S500 TG is an ATX mid-tower PC cabinet engineered for enthusiast builders who demand both visual impact and serious cooling headroom. Its steel chassis — constructed from SPCC cold-rolled steel — is finished entirely in black, inside and out, giving the build a clean, professional look that pairs with any component colour scheme. A single 4mm tempered glass side panel on the left lets you showcase your hardware; tempered glass is notably more scratch-resistant and durable than acrylic alternatives, and the 4mm thickness adds rigidity to the panel. Out of the box, the S500 TG ships with two pre-installed fans: a 140 x 140 x 25 mm front intake fan running at 1,000 rpm and 20 dBA, and a 120 x 120 x 25 mm rear exhaust fan running at 1,000 rpm and 16 dBA. These establish a positive-pressure airflow path from the moment you power The fan ecosystem can be expanded considerably: the front supports up to three 120mm, three 140mm, or two 200mm fans; the top accepts up to three 120mm, two 140mm, or two 200mm fans; and the rear accommodates one 120mm fan. Liquid cooling builders are equally well served. Radiator mounts support up to a 420mm unit at the front, up to a 360mm unit on the top, a 120mm unit at the rear, and a 360mm unit on the right side when the HDD rack is removed. This flexibility accommodates triple-fan AIO coolers and custom loops alike. CPU cooler clearance is rated to 172mm, accommodating most high-end tower air coolers on the market. The patented rotational 8-slot PCIe design allows graphics cards to be displayed either horizontally in the traditional orientation or vertically, providing layout flexibility. An integrated riser GPU support bracket is included to counter GPU sag and reduce stress on the motherboard’s PCIe slot. VGA clearance is 282mm with the HDD rack installed and 400mm without it, making the case compatible with long, high-performance graphics cards when storage is moved or reduced. Storage options include a modular drive rack supporting 2.5-inch or 3.5-inch drives, plus additional bracket positions, for a total of up to four drive positions. The built-in PSU shroud tidies cable routing and improves front-to-rear airflow by concealing the power supply and its associated cables. PSU clearance is rated to 220mm in length. The front I/O panel is located at the top front of the chassis and provides two USB 3.0 ports, two USB 2.0 ports, an HD audio jack, and a reset button — a practical arrangement for frequently connected peripherals and headsets. The S500 TG supports Mini-ITX, Micro-ATX, and full ATX motherboards (up to 12 x 9.6 inches). Specifications at a glance — Part Number: CA-1O3-00M1WN-00 | Series: S Series | Form Factor: Mid-Tower | Dimensions (H x W x D): 565 x 240 x 500 mm (22.2 x 9.4 x 19.7 in) | Material: SPCC steel | Side Panel: 4mm tempered glass (left) | Colour: Black (exterior and interior) | Motherboard Support: Mini-ITX, Micro-ATX, ATX | Expansion Slots: 8 (rotational, patented) | Front Fan Support: 3 x 120mm / 3 x 140mm / 2 x 200mm | Top Fan Support: 3 x 120mm / 2 x 140mm / 2 x 200mm | Rear Fan Support: 1 x 120mm | Radiator Support: Front 360mm or 420mm, Top 280mm or 360mm, Rear 120mm, Right 360mm (without HDD rack) | CPU Cooler Height: 172mm max | GPU Length: 282mm (with HDD rack) / 400mm (without HDD rack) | PSU: Standard PS2, up to 220mm | I/O: 2x USB 3.0, 2x USB 2.0, HD Audio, Reset | Warranty: 3 Years | Certifications: TT Premium, Tt LCS Certified
