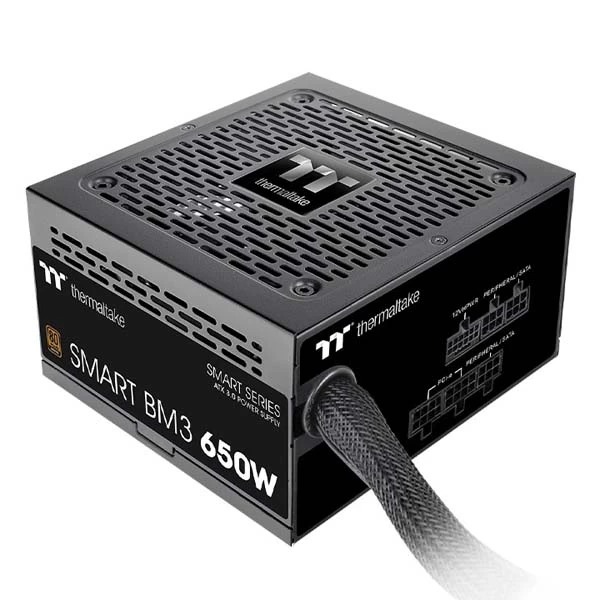

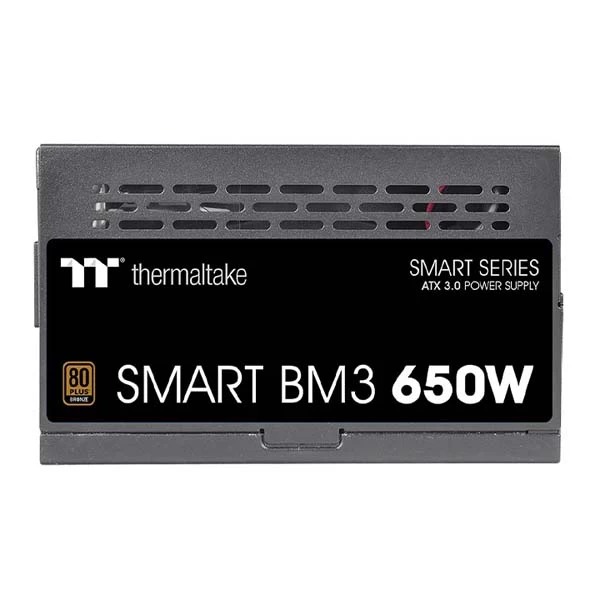

Thermaltake Smart BM3 650 Watt 80 Plus Bronze SMPS
MPN PS-SPD-0650MNFABD-3 · Brand Thermaltake
The Thermaltake Smart BM3 650W is an 80 Plus Bronze certified, semi-modular ATX 3.0 power supply featuring a native PCIe Gen 5.0 (12VHPWR) connector, 120mm FDB fan with Smart Zero mode, and a 5-year warranty
Inclusive of GST · GST invoice available
Overview

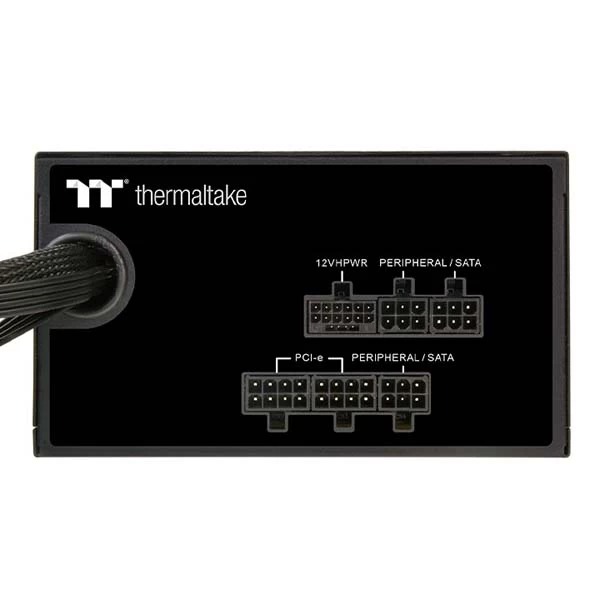

The Thermaltake Smart BM3 650W is a semi-modular power supply certified to the 80 PLUS Bronze standard, meaning it meets efficiency requirements at multiple load levels using 115V AC input. Designed to comply with Intel ATX 3.0 specifications, it supports up to 200% power excursion handling and meets the required power supply timing standards for modern platforms. A standout feature of the Smart BM3 650W is its native 16-pin PCIe Gen 5.0 (12VHPWR) connector, which can deliver up to 300W to compatible next-generation graphics cards. Four additional PCIe 6+2-pin connectors are included to support AMD and NVIDIA graphics cards that use the traditional 8-pin connection standard. Semi-modular flat cable design with sleeved black cables simplifies routing and reduces cable clutter inside the chassis. The unit features a 120mm FDB (Fluid Dynamic Bearing) fan for quiet and efficient cooling. The Smart Zero Fan function keeps the fan stationary at loads below 20% of rated capacity, reducing audible noise during light workloads. Built-in protections cover OCP (Over Current), OVP (Over Voltage), UVP (Under Voltage), OPP (Over Power), SCP (Short Circuit), and OTP (Over Temperature) scenarios. Active PFC ensures stable power factor correction across a wide input voltage range of 100–240V, making the unit compatible with global power grids. The PSU ships with a 5-year manufacturer warranty. Verified Specifications: - Part Number: PS-SPD-0650MNFABD-3 - Series: Smart Series - Wattage: 650W - Colour: Black - Dimensions (W×H×D): 150mm × 86mm × 140mm - Input Voltage: 100–240V - Input Frequency: 50Hz / 60Hz - Input Current: 15A–6A - PFC: Active PFC - Efficiency: 80 PLUS Bronze certified (115V AC input) - Cooling: 120mm FDB Fan with Smart Zero Fan mode - MTBF: 100,000 hours minimum - PCIe 12+4-pin (12VHPWR): 1 × (up to 300W) - PCIe 6+2-pin: 4 - SATA Connectors: 3 - Peripheral (4-pin) Connectors: 7 - Protection: OCP / OVP / UVP / OPP / OTP / SCP - Operating Temperature: 5°C to +45°C - Operating Humidity: 20%–85% non-condensing - Safety Approvals: CE / UKCA / LVD / FCC / ICES / TUV / CB / cTUVus / BSMI / CCC - GTIN: 4713227539630 - Warranty: 5 Years

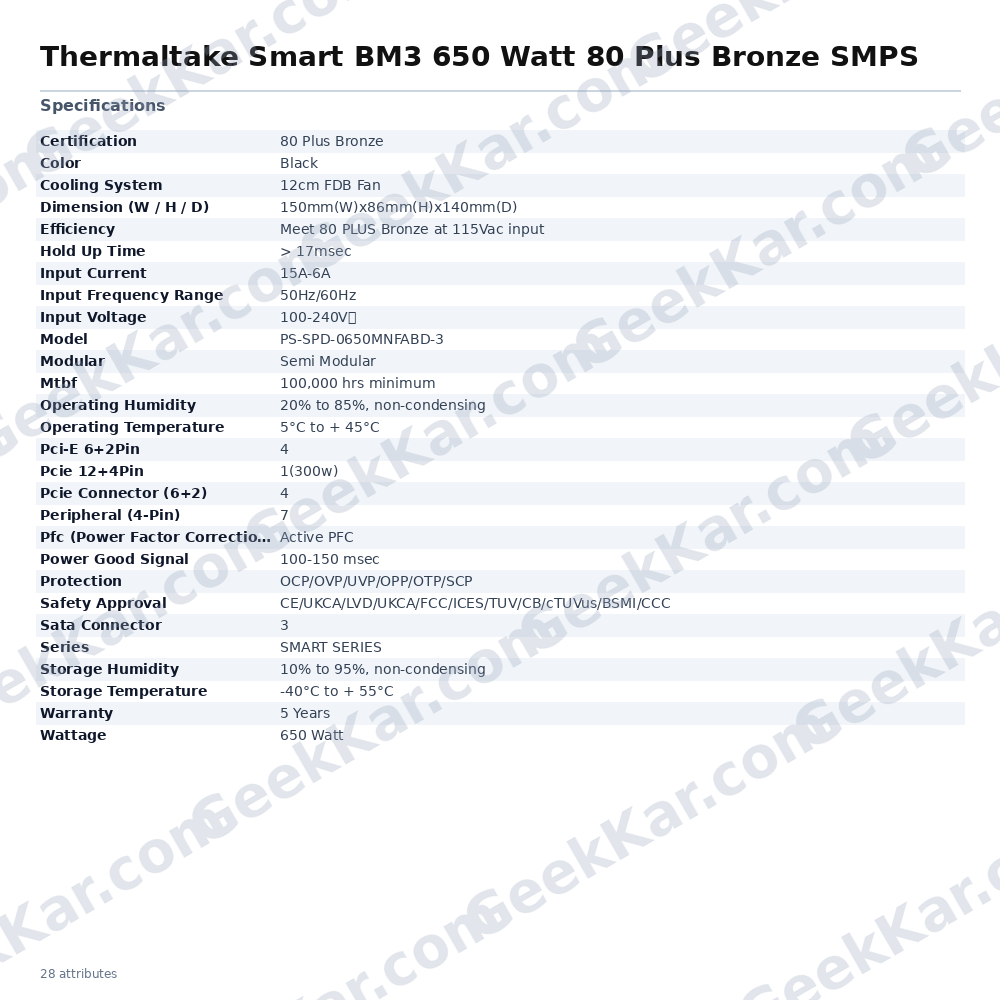

Datasheet
| Modular | SEMI MODULAR |
|---|---|
| Wattage | 650 Watt |
| Mtbf | 100,000 hrs minimum |
| Series | SMART SERIES |
| Efficiency | Meet 80 PLUS Bronze at 115Vac input |
| Protection | OCP/OVP/UVP/OPP/OTP/SCP |
| Model | PS-SPD-0650MNFABD-3 |
| Hold Up Time | > 17msec |
| Pci-E 6+2Pin | 4 |
| Pcie 12+4Pin | 1(300w) |
| Certification | 80 Plus Bronze |
| Input Current | 15A-6A |
| Input Voltage | 100-240V～ |
| Cooling System | 12cm FDB Fan |
| Sata Connector | 3 |
| Safety Approval | CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC |
| Storage Humidity | 10% to 95%, non-condensing |
| Power Good Signal | 100-150 msec |
| Operating Humidity | 20% to 85%, non-condensing |
| Peripheral (4-Pin) | 7 |
| Storage Temperature | -40°C to + 55°C |
| Pcie Connector (6+2) | 4 |
| Dimension (W / H / D) | 150mm(W)x86mm(H)x140mm(D) |
| Input Frequency Range | 50Hz/60Hz |
| Operating Temperature | 5°C to + 45°C |
| Pfc (Power Factor Correction) | Active PFC |
| Warranty | 5 Years |
| color | Black |
