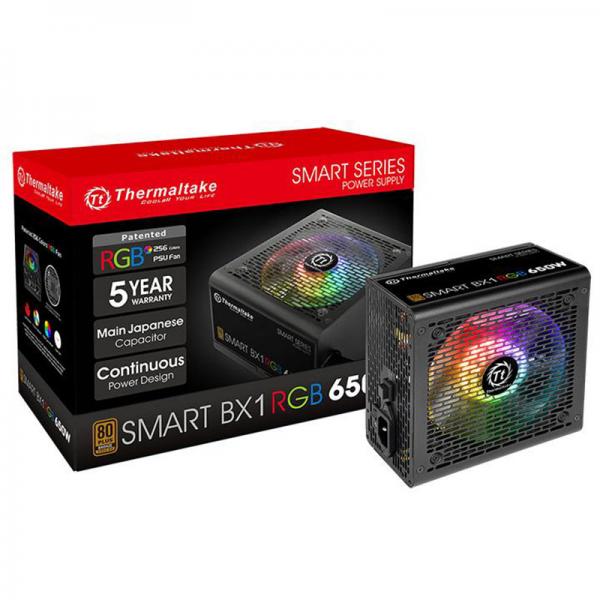

THERMALTAKE Smart BX1 RGB 650W 80+ Bronze Non Modular ATX 2.0 Power Supply

The Thermaltake Smart BX1 RGB 650W is a non-modular ATX power supply designed to deliver consistent, efficient performance for mid-range desktop builds. Certified to the 80 PLUS Bronze standard at 230 V EU, the unit achieves up to 88% energy efficiency under typical loads, reducing wasted heat and lowering long-term electricity costs. A pre-installed 120 mm hydraulic-bearing fan with intelligent RPM control provides quiet, effective cooling throughout extended gaming or work sessions. Ten RGB LEDs embedded in the fan can cycle through seven colours — Red, Green, Blue, Yellow, Purple, Light Blue, and White — across three illumination modes: Pulse, Full-Lighted, and RGB Cycle, with an LED Off option also available. A single dedicated RGB button on the rear panel lets you switch modes instantly, and the built-in memory function retains your colour preference across reboots. The power supply uses a high-quality Japanese main capacitor to enhance long-term stability and durability. A high-amperage single +12 V rail delivers clean, steady power to the CPU, GPU, and storage devices. Ripple noise across all output rails (+12 V, +5 V, +3.3 V) is held below 80 mV from 0% to 100% load, protecting sensitive components such as discrete graphics cards. Active PFC ensures compatibility with a wide range of mains supplies. The unit ships with sleeved black cables for cleaner routing inside the chassis. Hardware protections include Over-Voltage Protection (OVP), Over-Power Protection (OPP), and Short-Circuit Protection (SCP), and safety certifications cover CE, CB, TUV, EAC, and RCM standards. Thermaltake backs the Smart BX1 RGB with a five-year manufacturer warranty. Verified Specifications: – Part Number: PS-SPR-0650NHSABE-1 – Form Factor: ATX 12V v2.4 / EPS v2.92 – Max. Continuous Output: 650 W – Peak Output Capacity: 780 W – Efficiency: 80 PLUS Bronze (230 V EU) – Cooling: 120 mm (12 cm) hydraulic-bearing fan – RGB LEDs: 10 (7 colours, 3 modes + LED Off) – Ripple Noise: ≤ 80 mV on +12 V, +5 V, +3.3 V – Input Voltage: 230 V~ – Input Frequency: 50 Hz – Input Current: 10 A max. – PFC: Active PFC – PCI-E Connectors: 2 × 6+2-pin – Power Good Signal: 100–500 ms – Hold-Up Time: > 16 ms at 70% full load – Operating Temperature: 5 °C to 40 °C – Dimensions (W × H × D): 150 mm × 86 mm × 140 mm – MTBF: 100,000 hours minimum – Protections: OVP, OPP, SCP – Safety Approvals: CE / CB / TUV / EAC / RCM – Warranty: 5 Years
