THERMALTAKE the Tower 600 ATX Mid Tower Cabinet (Future Dusk)
MPN THERMALTAKE-THE-TOWER-600-FUTURE-DUSK · Brand Thermaltake
The Thermaltake The Tower 600 (Future Dusk) is an ATX mid-tower with an octagonal prism design supporting up to a 420mm AIO radiator, 13 fans, hidden-connector motherboards, and three tool-free 3mm tempered glass panels
Inclusive of GST · GST invoice available
Overview

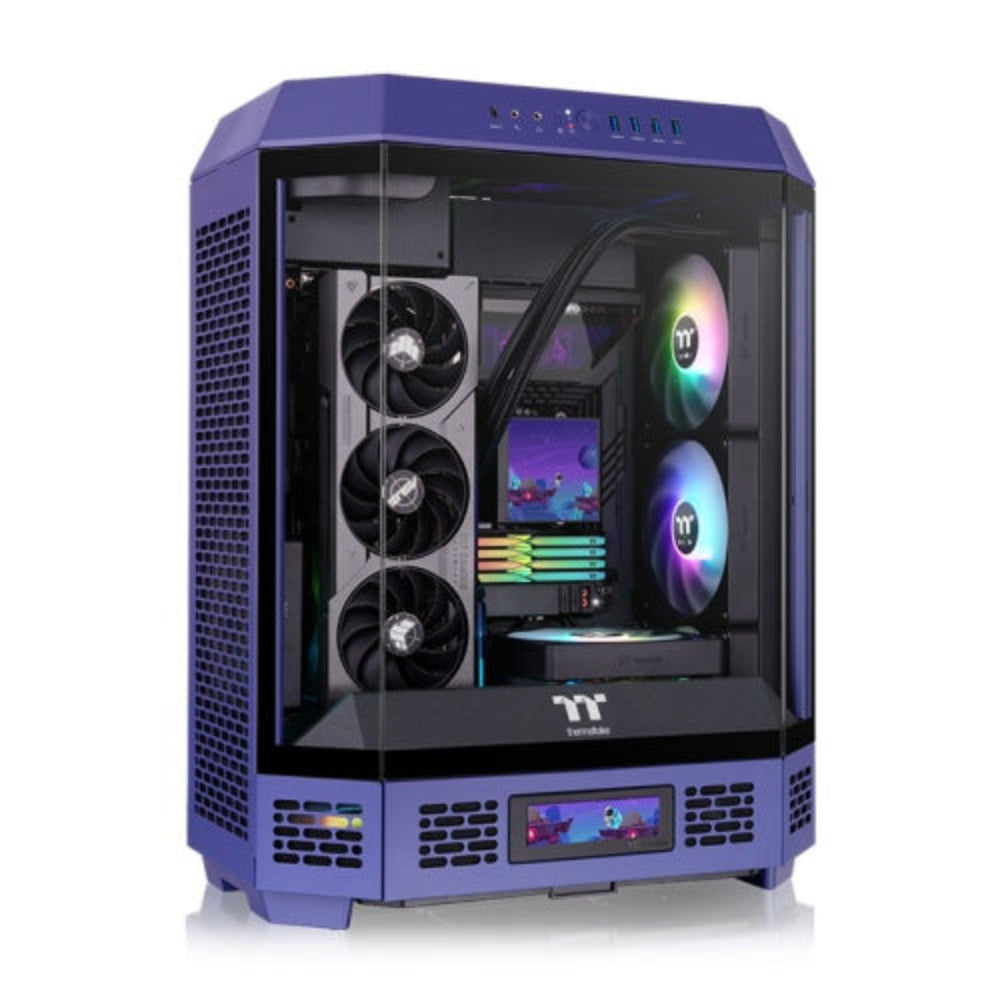

The Thermaltake The Tower 600 (Future Dusk) is an ATX mid-tower chassis from Thermaltake's The Tower Series, distinguished by its octagonal prism shape and a distinctive Future Dusk colour finish. It is built to accommodate the growing ecosystem of hidden-connector motherboards, with verified compatibility for ASUS BTF Series, MSI PROJECT ZERO Series, and GIGABYTE PROJECT STEALTH Series boards, in addition to standard ATX, Micro ATX, and Mini ITX form factors. Cooling flexibility is a core strength of this chassis. The right side supports AIO radiators up to 420mm, while the left side accommodates radiators up to 360mm. In total, the case can house up to thirteen 120mm fans or nine 140mm fans across the top, right, left, rear, power cover, and bottom positions. Two Thermaltake CT140 PWM fans (140 x 140 x 25mm, 1500 rpm, 30.5 dBA) come pre-installed at the top exhaust position, giving a solid cooling baseline out of the box. The front and sides feature three 3mm tempered glass panels that are tool-free removable, offering full visibility into the build. Two perforated panels on each side complement airflow, while dust filters at the top, rear, inner sides, and inner bottom layer protect components. Cable management is assisted by two sets of cable clips in the rear chamber, plus Velcro straps and cable ties included in the accessory box. Rotating PCI-E expansion slots allow flexible GPU orientation, with two additional GPU brackets for added support. A riser cable and PSU are sold separately. The optional 3.9-inch LCD Screen Kit (sold separately) can display real-time system information, JPG, and GIF files at 128×480 resolution via TT RGB Plus software. An optional Chassis Stand Kit enables horizontal case placement for a unique viewing angle. Verified Specifications: - Part Number: CA-1Z1-00MNWN-00 - Case Type: Mid Tower - Dimensions (H × W × D): 550 × 420 × 286.4 mm (21.65 × 16.54 × 11.28 in) - Motherboard Support: Mini ITX, Micro ATX, ATX - Panel: 3mm Tempered Glass × 3 - Material: SPCC - Pre-installed Fans: 2 × CT140 140mm PWM (1500 rpm, 30.5 dBA) — top exhaust - Fan Support: Up to 13 × 120mm or 9 × 140mm total - Radiator Support: Right side up to 420mm; Left side up to 360mm - I/O: USB 3.2 Gen 2 Type-C × 1, USB 3.0 × 4, HD Audio × 1 - Drive Bays: 1 × 3.5-inch, 2 × 2.5-inch (or 3 × 2.5-inch) - Expansion Slots: 7 - CPU Cooler Clearance: 210mm - GPU Length: 280mm (with power cover), 400mm (without power cover) - PSU Clearance: 220mm (Standard PS2 PSU, sold separately) - Colour: Future Dusk

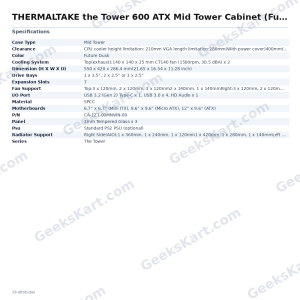

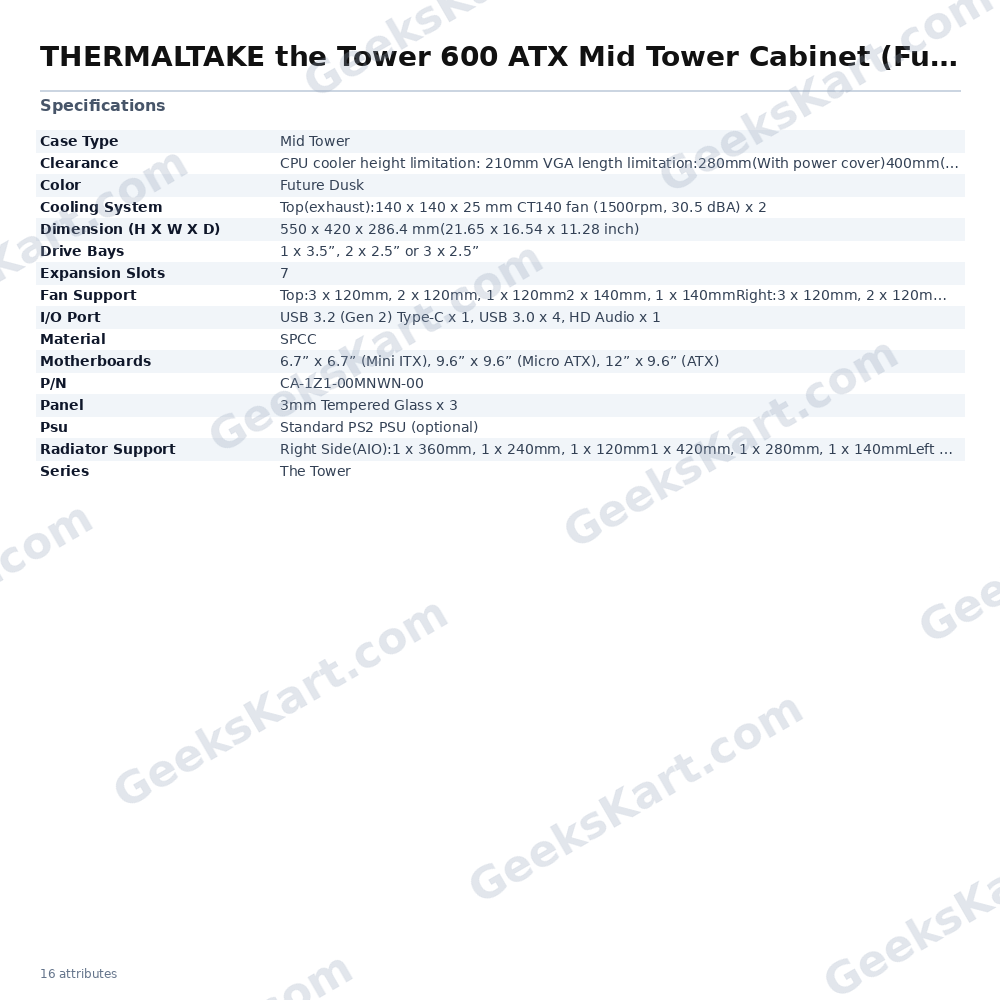

Datasheet
| P/N | CA-1Z1-00MNWN-00 |
|---|---|
| Psu | Standard PS2 PSU (optional) |
| Panel | 3mm Tempered Glass x 3 |
| Series | The Tower |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1 |
| Material | SPCC |
| Case Type | Mid Tower |
| Clearance | CPU cooler height limitation: 210mm VGA length limitation:280mm(With power cover)400mm(Without power cover)PSU length limitation:220mm |
| Drive Bays | 1 x 3.5”, 2 x 2.5” or 3 x 2.5” |
| Fan Support | Top:3 x 120mm, 2 x 120mm, 1 x 120mm2 x 140mm, 1 x 140mmRight:3 x 120mm, 2 x 120mm, 1 x 120mm3 x 140mm, 2 x 140mm, 1 x 140mmLeft:3 x 120mm, 2 x 120mm, 1 x 120mm Rear:2 x 120mm, 1 x 120mm2 x 140mm, 1 x 140mmPower Cover:1 x 120mm, 1 x 140mmBottom:1 x 120mm, 1 x 140mm |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| Cooling System | Top(exhaust):140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 2 |
| Expansion Slots | 7 |
| Radiator Support | Right Side(AIO):1 x 360mm, 1 x 240mm, 1 x 120mm1 x 420mm, 1 x 280mm, 1 x 140mmLeft Side(AIO):1 x 360mm, 1 x 240mm, 1 x 120mm |
| Dimension (H X W X D) | 550 x 420 x 286.4 mm(21.65 x 16.54 x 11.28 inch) |
| Color | Future Dusk |
