THERMALTAKE the Tower 600 ATX Mid Tower Cabinet ( Racing Green )
MPN THERMAKTAKE-THE-TOWER-600-ATX-RACING-GREEN · Brand Thermaltake
The Thermaltake Tower 600 Racing Green is an ATX mid-tower with an octagonal prism design, triple tempered glass panels, 420mm radiator support, and two CT140 PWM fans pre-installed for strong out-of-box airflow
Inclusive of GST · GST invoice available
Overview

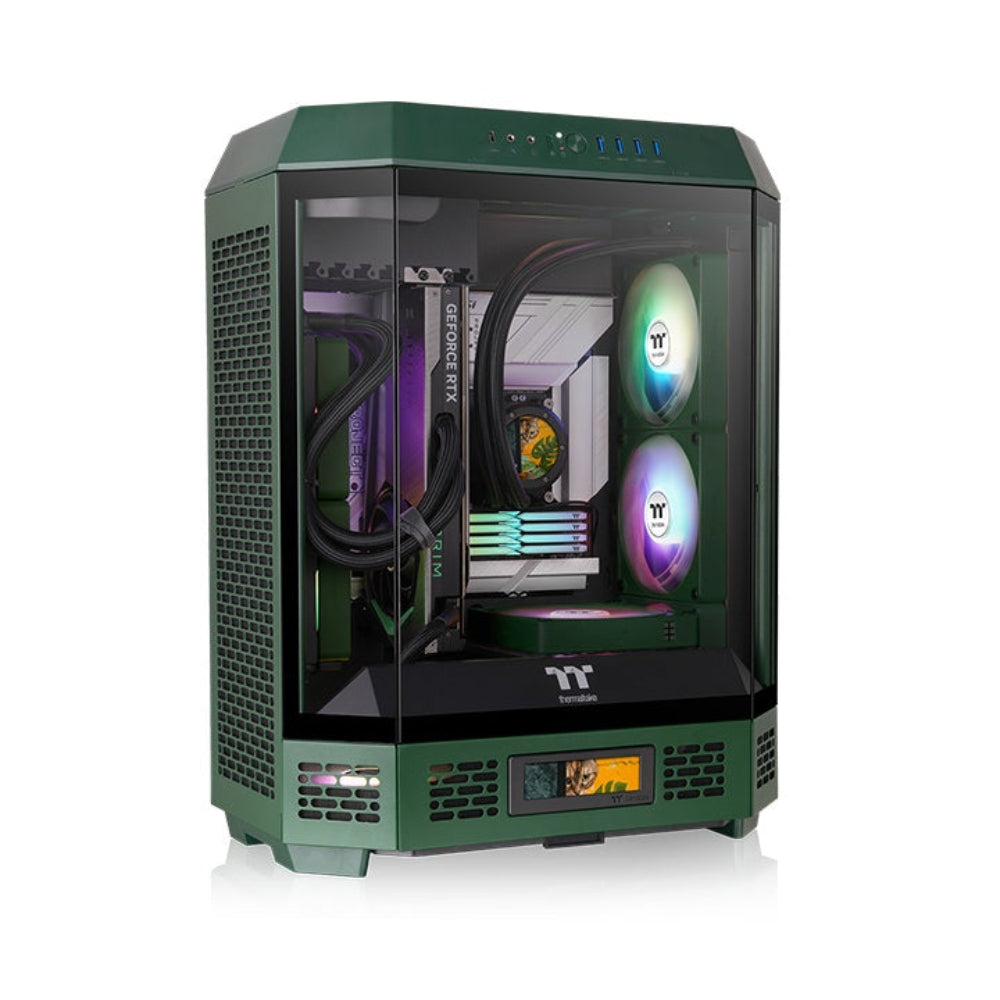

The Thermaltake The Tower 600 Racing Green (P/N: CA-1Z1-00MCWN-00) is an ATX mid-tower chassis from Thermaltake's The Tower Series, distinguished by its distinctive octagonal prism silhouette and racing green finish. Unlike conventional rectangular enclosures, its geometry reduces visual bulk while accommodating high-end components across Mini-ITX, Micro-ATX, and ATX form factors. Cooling headroom is a standout strength. The chassis supports up to a 420mm AIO radiator on the right side and a 360mm AIO radiator on the left side, catering to enthusiast liquid-cooling setups. Alternatively, up to thirteen 120mm fans or nine 140mm fans can be installed across the top, right, left, rear, power-cover, and bottom positions. Two Thermaltake CT140 PWM fans (140 x 140 x 25 mm, 1500 RPM, 30.5 dBA) are pre-installed at the top exhaust position to start airflow from day one. Three 3mm tempered glass panels on the front offer wide sightlines into the build, while two perforated side panels support intake airflow. All panels are tool-free removable. Purpose-built dust filters are present on the top, rear, inner sides, and inner bottom layer to control particulate ingress. Hardware clearances are generous: CPU coolers up to 210mm tall are supported, GPUs up to 400mm long (without power cover) or 280mm with the power cover in place, and PSUs up to 220mm in length (Standard PS2 form factor). Storage accommodates one 3.5-inch HDD alongside up to three 2.5-inch SSDs (or two 2.5-inch with the HDD installed). Seven expansion slots and rotating PCIe slots allow flexible GPU orientation, with two additional GPU brackets and riser cable support (riser cable sold separately). The front I/O panel includes one USB 3.2 Gen 2 Type-C port, four USB 3.0 ports, and one HD Audio connector—a well-rounded complement for modern builds. Cable management is aided by two sets of cable clips in the rear chamber, plus Velcro straps and cable ties in the accessory box. Two optional accessories—a 3.9-inch LCD Screen Kit for real-time component monitoring and a Chassis Stand Kit for horizontal placement—can be purchased separately to further customise the build. The case is constructed from SPCC steel and measures 550 x 420 x 286.4 mm (H x W x D). It carries a 1-year manufacturer warranty. — Verified Specifications — P/N: CA-1Z1-00MCWN-00 | Case Type: ATX Mid Tower | Dimensions: 550 x 420 x 286.4 mm | Material: SPCC | Panels: 3 x 3mm Tempered Glass | Pre-installed Fans: 2 x CT140 140mm PWM (1500 RPM, 30.5 dBA) | Max Fan Support: 13 x 120mm or 9 x 140mm | Max Radiator: 420mm (right), 360mm (left) | CPU Cooler Clearance: 210mm | GPU Clearance: 400mm (no cover) / 280mm (with cover) | PSU Clearance: 220mm | Drive Bays: 1 x 3.5-inch, up to 3 x 2.5-inch | I/O: 1 x USB 3.2 Gen 2 Type-C, 4 x USB 3.0, HD Audio | Expansion Slots: 7 | Motherboard Support: Mini-ITX, Micro-ATX, ATX | Warranty: 1 Year

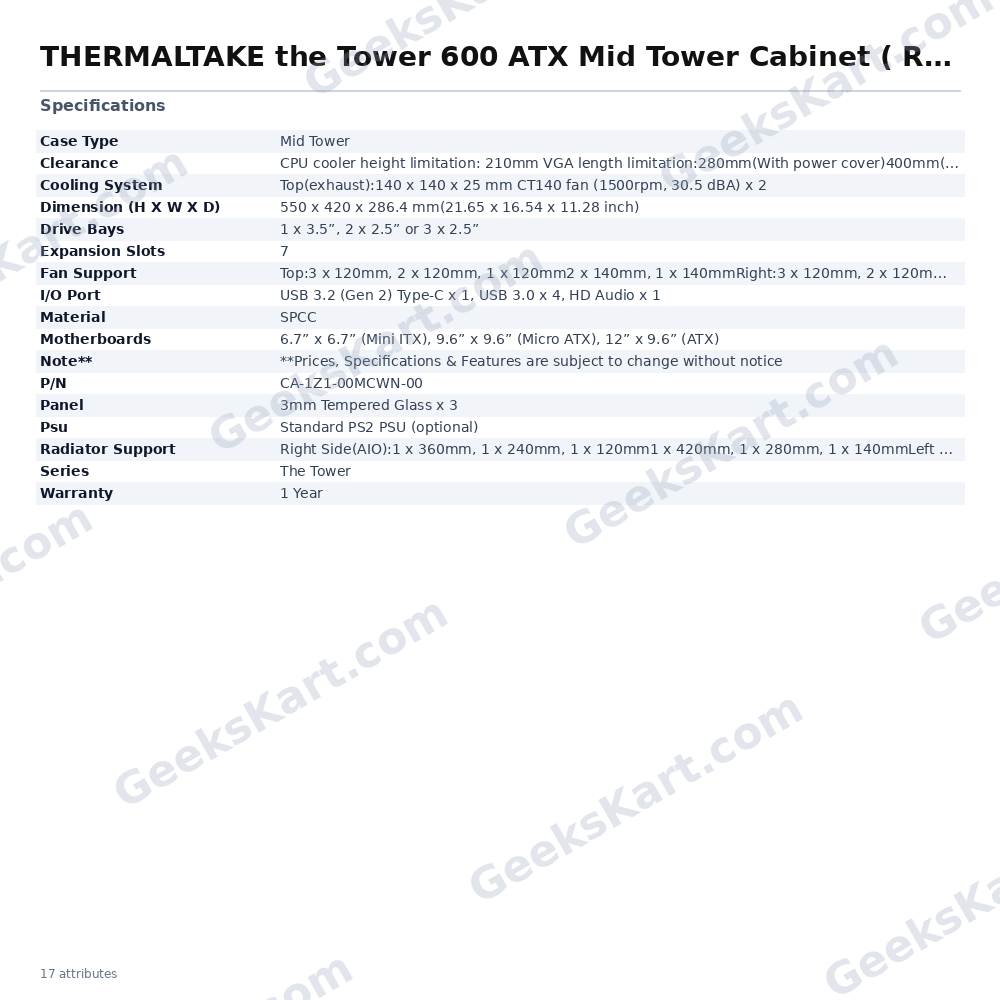

Datasheet
| Warranty | 1 Year |
|---|---|
| P/N | CA-1Z1-00MCWN-00 |
| Psu | Standard PS2 PSU (optional) |
| Panel | 3mm Tempered Glass x 3 |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Series | The Tower |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1 |
| Material | SPCC |
| Case Type | Mid Tower |
| Clearance | CPU cooler height limitation: 210mm VGA length limitation:280mm(With power cover)400mm(Without power cover)PSU length limitation:220mm |
| Drive Bays | 1 x 3.5”, 2 x 2.5” or 3 x 2.5” |
| Fan Support | Top:3 x 120mm, 2 x 120mm, 1 x 120mm2 x 140mm, 1 x 140mmRight:3 x 120mm, 2 x 120mm, 1 x 120mm3 x 140mm, 2 x 140mm, 1 x 140mmLeft:3 x 120mm, 2 x 120mm, 1 x 120mmRear:2 x 120mm, 1 x 120mm2 x 140mm, 1 x 140mmPower Cover:1 x 120mm, 1 x 140mmBottom:1 x 120mm, 1 x 140mm |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| Cooling System | Top(exhaust):140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 2 |
| Expansion Slots | 7 |
| Radiator Support | Right Side(AIO):1 x 360mm, 1 x 240mm, 1 x 120mm1 x 420mm, 1 x 280mm, 1 x 140mmLeft Side(AIO):1 x 360mm, 1 x 240mm, 1 x 120mm |
| Dimension (H X W X D) | 550 x 420 x 286.4 mm(21.65 x 16.54 x 11.28 inch) |
