THERMALTAKE the Tower 600 ATX Mid Tower Cabinet (White)
MPN CA-1Z1-00M6WN-00 · Brand Thermaltake

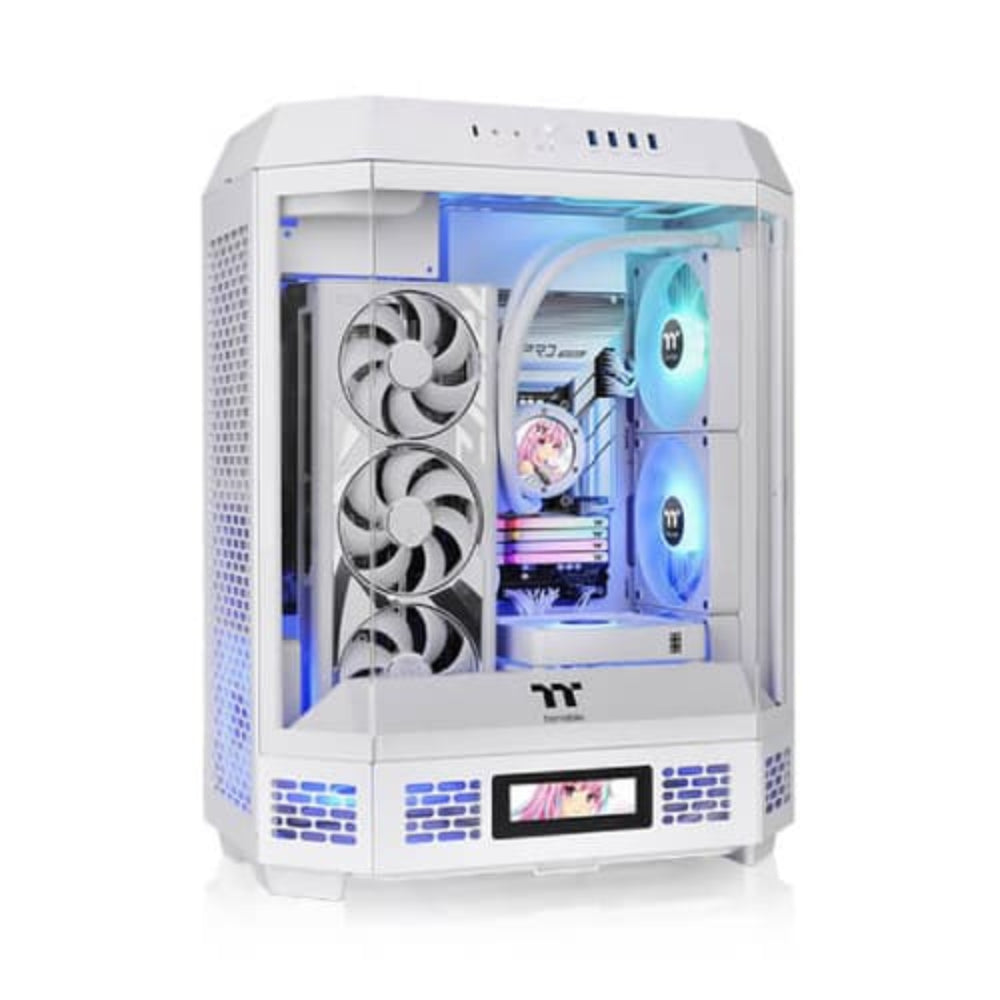

The Thermaltake Tower 600 Snow is a white ATX mid-tower cabinet with an octagonal prism design, triple tempered glass panels, support for up to a 420mm AIO radiator, and compatibility with hidden-connector motherboards
Inclusive of GST · GST invoice available
Overview
The Thermaltake Tower 600 Snow is a mid-tower ATX chassis built around a distinctive octagonal prism silhouette that sets it apart from conventional rectangular designs. Finished in white with SPCC steel construction, the cabinet measures 550 x 420 x 286.4 mm (H x W x D) and weighs 9.70 kg, making it a substantial but desk-friendly enclosure for a high-performance build. One of the standout features of the Tower 600 Snow is its broad compatibility with the latest hidden-connector motherboards, including boards from the ASUS BTF Series, MSI PROJECT ZERO Series, and GIGABYTE PROJECT STEALTH Series, alongside standard Mini-ITX, Micro-ATX, and full ATX form factors. Two removable panels on the rear enable clean and accessible cable routing regardless of which motherboard style you choose. Cooling headroom is exceptional. The right side accommodates an AIO radiator up to 420mm, while the left side supports up to a 360mm AIO radiator. Across all mounting positions — top, right, left, rear, power cover, and bottom — the case can house up to thirteen 120mm fans or nine 140mm fans in total. Two 140mm CT140 PWM fans (1500 rpm, 30.5 dBA) come pre-installed as top exhaust units, providing immediate airflow out of the box. Dedicated dust filters on the top, rear, inner sides, and inner bottom protect components over time. The rotating PCIe slots let you orient your graphics card vertically or horizontally, and two included GPU brackets add structural support for long cards up to 400mm (without the power cover) or 280mm (with the power cover). CPU coolers up to 210mm tall are supported, and the PSU bay fits standard PS2 units up to 220mm in length. Three 3mm tempered glass panels on the front give the build a clear, unobstructed showcase view, while the tool-free panel removal system makes access simple. Storage options include one 3.5-inch HDD bay and up to three 2.5-inch SSD bays. The top I/O panel offers four USB 3.0 Type-A ports, one USB 3.2 Gen 2 Type-C port, HD Audio, a power button with integrated white LED, a red HDD activity LED, and a reset button. An optional 3.9-inch LCD Screen Kit and a separately sold Chassis Stand Kit (which enables horizontal placement) allow further personalisation. Thermaltake's Dismantlable Modular Design (DMD) approach makes assembly straightforward by eliminating hard-to-reach fastener points. Key Specifications: - Model: Tower 600 Snow | MPN: CA-1Z1-00M6WN-00 - Dimensions (H x W x D): 550 x 420 x 286.4 mm / 21.65 x 16.54 x 11.28 in - Net Weight: 9.70 kg / 21.39 lbs - Motherboard Support: Mini-ITX, Micro-ATX, ATX - Expansion Slots: 7 - Pre-installed Fans: 2 x 140mm CT140 PWM (1500 rpm, 30.5 dBA) - Max Fan Support: 13 x 120mm or 9 x 140mm - Radiator Support: Right — up to 420mm; Left — up to 360mm - CPU Cooler Clearance: 210mm - GPU Length Clearance: 400mm (without power cover) / 280mm (with power cover) - PSU Length: up to 220mm (Standard PS2) - Drive Bays: 1 x 3.5-inch, up to 3 x 2.5-inch - Panels: 3 x 3mm Tempered Glass - I/O: 4 x USB 3.0, 1 x USB 3.2 Gen 2 Type-C, HD Audio - Material: SPCC Steel - Colour: White - Warranty: 3 Years

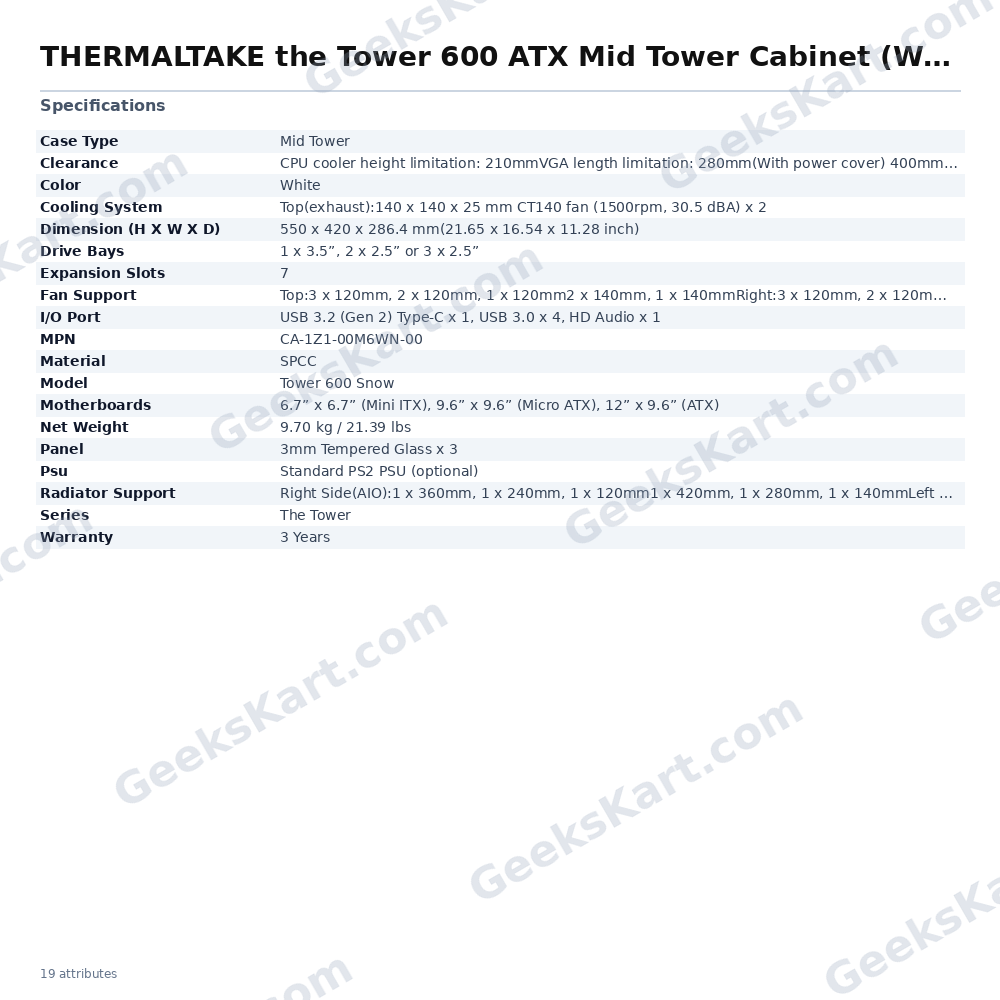

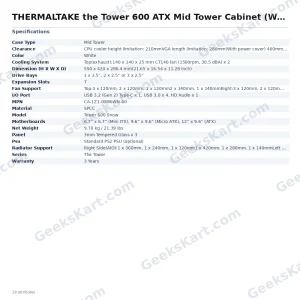

Datasheet
| Warranty | 3 Years |
|---|---|
| color | White |
| Psu | Standard PS2 PSU (optional) |
| Panel | 3mm Tempered Glass x 3 |
| Series | The Tower |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1 |
| Material | SPCC |
| Case Type | Mid Tower |
| Clearance | CPU cooler height limitation: 210mmVGA length limitation: 280mm(With power cover) 400mm(Without power cover)PSU length limitation: 220mm |
| Drive Bays | 1 x 3.5”, 2 x 2.5” or 3 x 2.5” |
| Model | Tower 600 Snow |
| Net Weight | 9.70 kg / 21.39 lbs |
| Fan Support | Top:3 x 120mm, 2 x 120mm, 1 x 120mm2 x 140mm, 1 x 140mmRight:3 x 120mm, 2 x 120mm, 1 x 120mm3 x 140mm, 2 x 140mm, 1 x 140mmLeft:3 x 120mm, 2 x 120mm, 1 x 120mmRear:2 x 120mm, 1 x 120mm2 x 140mm, 1 x 140mmPower Cover:1 x 120mm, 1 x 140mmBottom:1 x 120mm, 1 x 140mm |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| Cooling System | Top(exhaust):140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 2 |
| Expansion Slots | 7 |
| Radiator Support | Right Side(AIO):1 x 360mm, 1 x 240mm, 1 x 120mm1 x 420mm, 1 x 280mm, 1 x 140mmLeft Side(AIO):1 x 360mm, 1 x 240mm, 1 x 120mm |
| Dimension (H X W X D) | 550 x 420 x 286.4 mm(21.65 x 16.54 x 11.28 inch) |
