Thermaltake The Tower 600 ATX Mid Tower Case
MPN CA-1Z1-00M1WN-00 · Brand THERMALTAKE · ATX, mATX, Mini-ITX
The Thermaltake The Tower 600 (CA-1Z1-00M1WN-00) is an ATX mid tower case with an octagonal prism design, support for up to a 420mm AIO radiator, up to 13 fans, hidden-connector motherboard compatibility, and three tool-free 3mm tempered glass panels
Inclusive of GST · GST invoice available
Overview
The Thermaltake The Tower 600 is an ATX mid tower chassis from Thermaltake's The Tower Series, built around a distinctive octagonal prism shape and a classic vertical body design. Unlike conventional rectangular cases, its eight-sided silhouette minimises visual obstructions on your desk while maximising interior volume for high-end configurations. One of the standout attributes of the Tower 600 is its broad cooling headroom. The right side of the chassis accommodates AIO liquid coolers up to 420mm, while the left side supports radiators up to 360mm. Across all mounting positions — top, right, left, rear, power-cover, and bottom — the case can house a total of up to thirteen 120mm fans or nine 140mm fans, giving builders exceptional flexibility for thermal management. Two Thermaltake CT140 140mm PWM fans (rated at 1,500 rpm and 30.5 dBA) come pre-installed on the top exhaust position. The Tower 600 is designed for forward compatibility with next-generation hidden-connector motherboard platforms, including ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH series boards, in addition to standard Mini-ITX, Micro-ATX, and ATX form factors. Rotating PCIe slots let you orient your graphics card conventionally or in an alternative layout; two additional GPU brackets are included to stabilise heavy graphics cards and riser cable setups (riser cable sold separately). Three 3mm tempered glass panels line the front, and all panels are tool-free removable for easy access. Dust filtration is provided at the top, rear, inner sides, and inner bottom layer. Cable management is aided by two sets of cable clips in the rear chamber plus Velcro straps and cable ties in the accessory box. Top-mounted I/O includes four USB 3.0 Type-A ports, one USB 3.2 Gen 2 Type-C port, HD Audio, a power button with integrated white LED, a red HDD activity LED, and a reset button. The optional separately sold Chassis Stand Kit enables horizontal case placement for a unique viewing angle, and the optional 3.9-inch LCD Screen Kit can display real-time component data. Verified Specifications: - Model / Part Number: The Tower 600 Black / CA-1Z1-00M1WN-00 - Case Type: Mid Tower - Dimensions (H x W x D): 550 x 420 x 286.4 mm (21.65 x 16.54 x 11.28 in) - Net Weight: 9.70 kg / 21.39 lbs - Supported Motherboards: Mini-ITX, Micro-ATX, ATX - Panel: 3mm Tempered Glass x 3 - Material: SPCC steel + tempered glass - Pre-installed Fans: 2 x CT140 140mm PWM (top exhaust, 1,500 rpm, 30.5 dBA) - Max Total Fan Support: 13 x 120mm or 9 x 140mm - Radiator Support: Up to 420mm (right side), up to 360mm (left side) - Max CPU Cooler Height: 210mm - Max GPU Length: 400mm (without power cover), 280mm (with power cover) - Max PSU Length: 220mm (Standard PS2 PSU, sold separately) - Drive Bays: 1 x 3.5-inch HDD, up to 3 x 2.5-inch SSD - Expansion Slots: 7 - I/O: USB 3.2 Gen 2 Type-C x 1, USB 3.0 x 4, HD Audio x 1 - Warranty: 3 Years

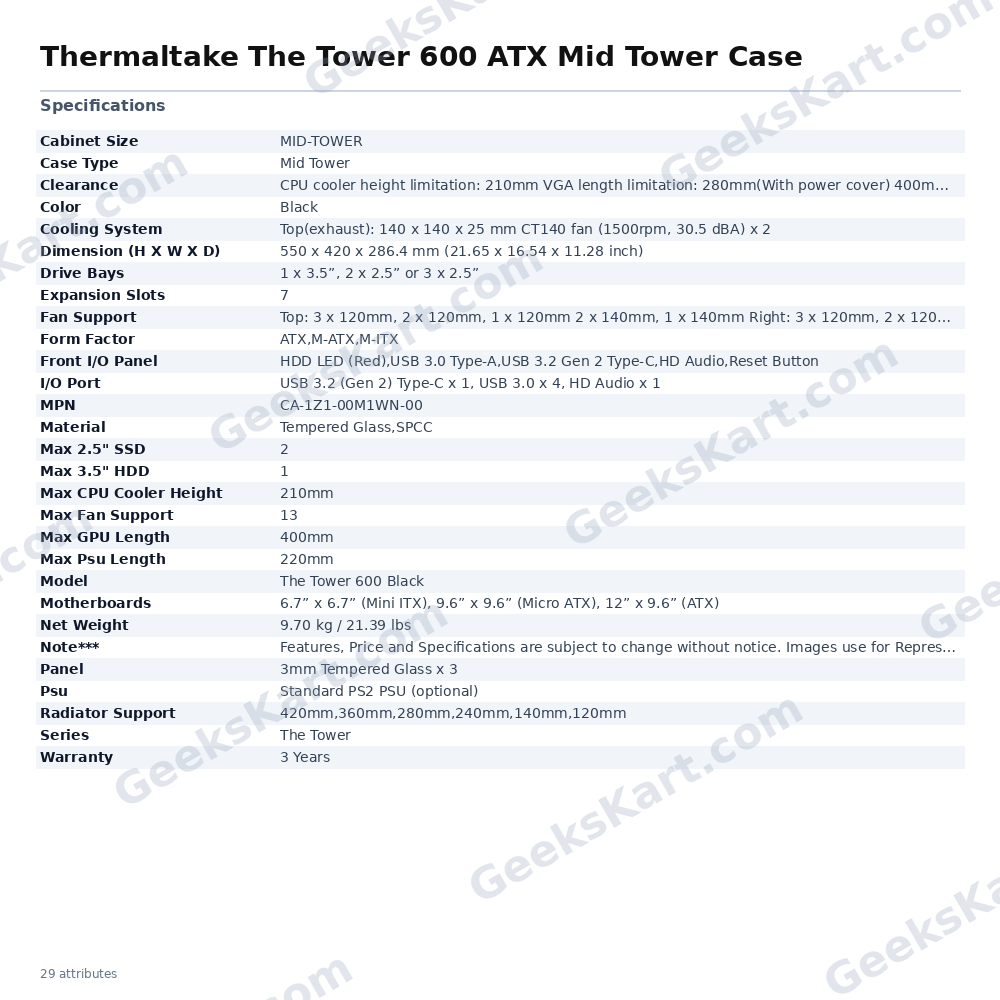

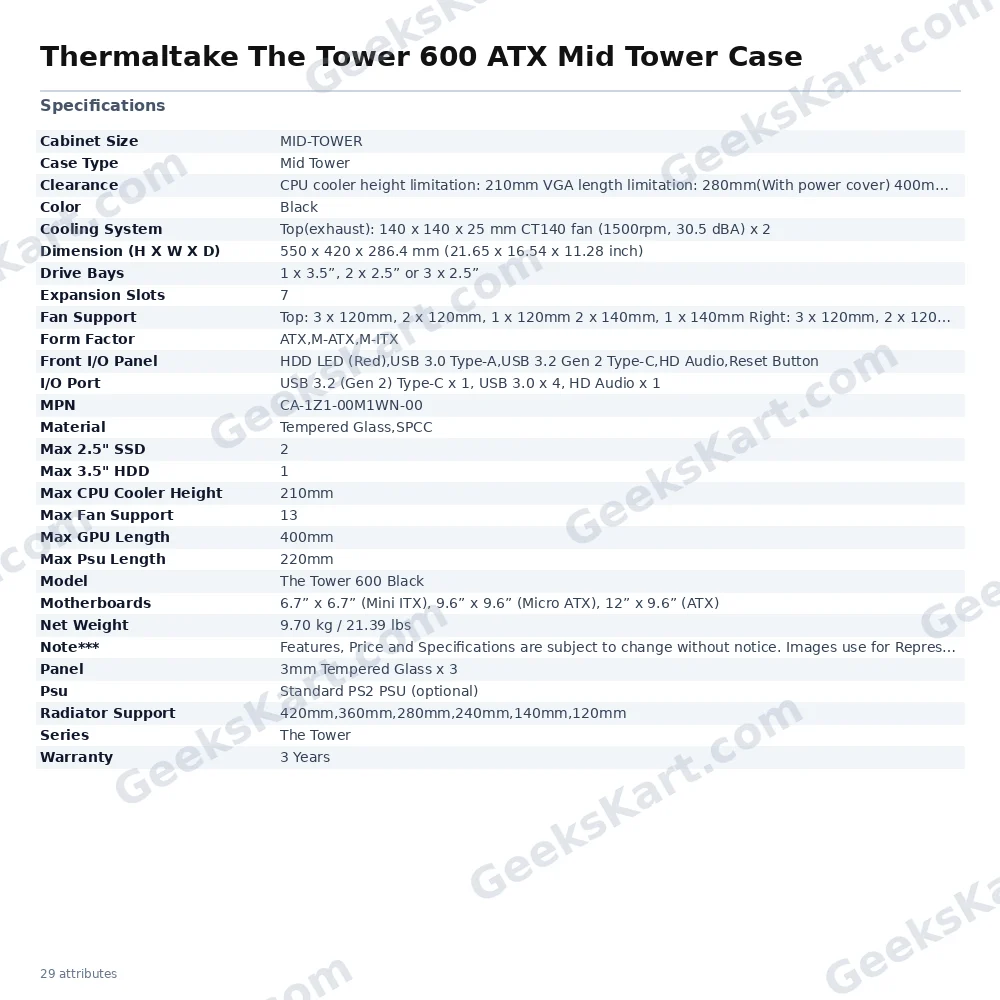

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX, mATX, Mini-ITX |
| color | Black |
| Psu | Standard PS2 PSU (optional) |
| Panel | 3mm Tempered Glass x 3 |
| Series | The Tower |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1 |
| Material | Tempered Glass,SPCC |
| Case Type | Mid Tower |
| Clearance | CPU cooler height limitation: 210mm VGA length limitation: 280mm(With power cover) 400mm(Without power cover) PSU length limitation: 220mm |
| Drive Bays | 1 x 3.5”, 2 x 2.5” or 3 x 2.5” |
| Model | The Tower 600 Black |
| Net Weight | 9.70 kg / 21.39 lbs |
| Fan Support | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Left: 3 x 120mm, 2 x 120mm, 1 x 120mm Rear: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Power Cover: 1 x 120mm, 1 x 140mm Bottom: 1 x 120mm, 1 x 140mm |
| Cabinet Size | MID-TOWER |
| Max 2.5" SSD | 2 |
| Max 3.5" HDD | 1 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| Cooling System | Top(exhaust): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 2 |
| Max GPU Length | 400mm |
| Max Psu Length | 220mm |
| Expansion Slots | 7 |
| Front I/O Panel | HDD LED (Red),USB 3.0 Type-A,USB 3.2 Gen 2 Type-C,HD Audio,Reset Button |
| Max Fan Support | 13 |
| Radiator Support | 420mm,360mm,280mm,240mm,140mm,120mm |
| Dimension (H X W X D) | 550 x 420 x 286.4 mm (21.65 x 16.54 x 11.28 inch) |
| Max CPU Cooler Height | 210mm |
