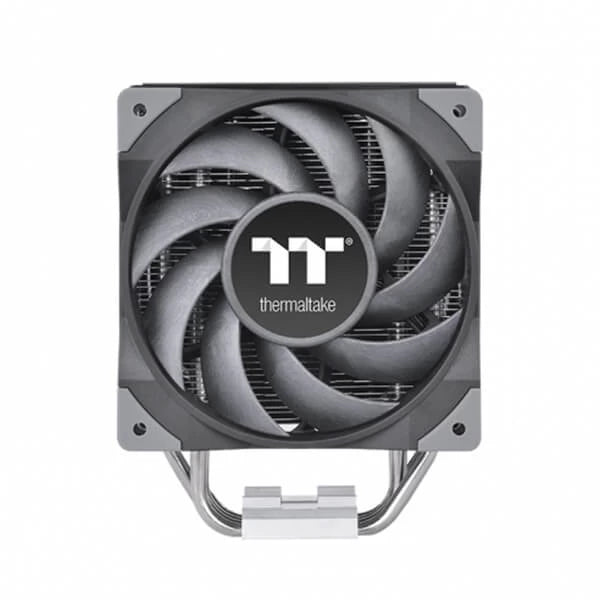

THERMALTAKE ToughAir 510 Single Tower CPU Air Cooler (Black)
MPN THERMALTAKE-TOUGHAIR-510 · Brand Thermaltake
Features of THERMALTAKE ToughAir 510 Single Tower CPU Air Cooler (Black) A single tower dual fan designed CPU cooler equipped with two optimized 120 mm high static pressure fan and a newly designed heat sink, guaranteeing its outstanding performance. Single Tower Dual Fan Design THERMALTAKE TOUGHAIR 510 is a single tower duel fan designed air cooler with 4 heat pipes running through the fins, the U-shape heat pipes increase heat circulation creating better heat dissipation in your system and sup
Inclusive of GST · GST invoice available
Overview
Features of THERMALTAKE ToughAir 510 Single Tower CPU Air Cooler (Black)
Single Tower Dual Fan Design
THERMALTAKE TOUGHAIR 510 is a single tower duel fan designed air cooler with 4 heat pipes running through the fins, the U-shape heat pipes increase heat circulation creating better heat dissipation in your system and supports up to 180W.
Enhanced 120 mm high static pressure Fan
TOUGHAIR series utilizes high static pressure fans, which leverages the TOUGHFAN 12 design and boosts the fan speed to 2000 RPM, providing a new level of cooling performance to our CPU cooler.
Asymmetric Fin Structure
The fin is designed with an asymmetric structure that allows larger air intake through the fins. This design lowers the air turbulence and straightens out the airflow making it easier to disperse heat from the fins, delivering superb cooling performance.
High-Performance U-shape copper heat pipes
4 x Ø6 mm heat pipes directly touch the CPU and thermal paste. The U-shape design creates perfect circulation for better CPU cooling performance.
Universal Compatibility
TOUGHAIR Series are designed to fit Intel and AMD sockets including the following models:

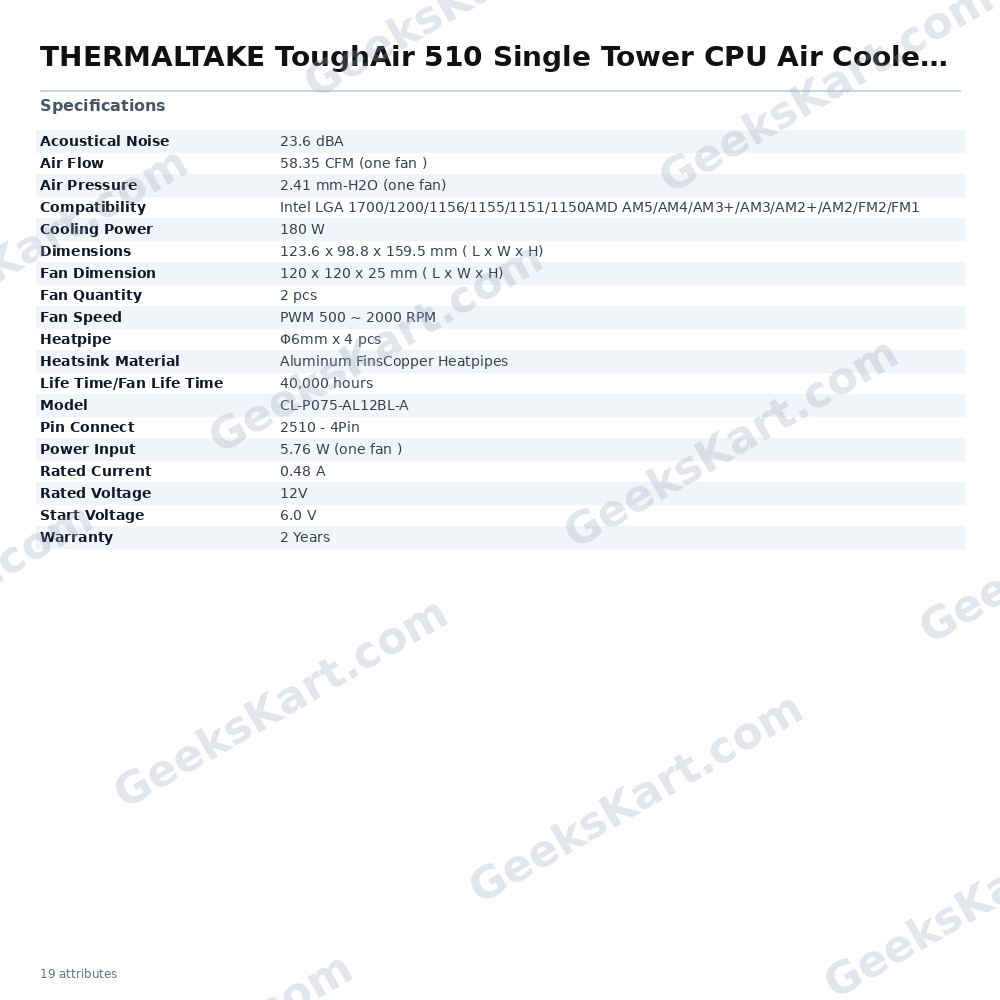

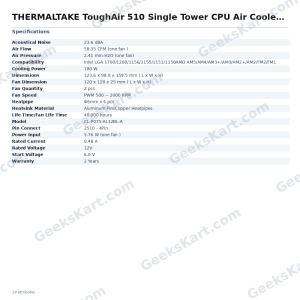

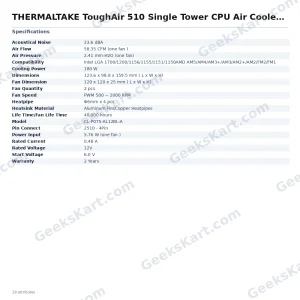

Specifications of THERMALTAKE ToughAir 510 Single Tower CPU Air Cooler (Black)
| Model Number | CL-P075-AL12BL-A |
| COMPATIBILITY | Intel LGA 1700/1200/1156/1155/1151/1150 AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1 |
| Dimensions | 123.6 x 98.8 x 159.5 mm ( L x W x H) |
| Heatsink Material | Aluminum Fins Copper Heatpipes |
| Heatpipe | Φ6mm x 4 pcs |
| Fan Dimension | 120 x 120 x 25 mm ( L x W x H) |
| Fan quantity | 2 pcs |
| Fan Speed | PWM 500 ~ 2000 RPM |
| Rated Voltage | 12V |
| Start Voltage | 6.0 V |
| Rated Current | 0.48 A |
| Power Input | 5.76 W (one fan ) |
| Air Flow | 58.35 CFM (one fan ) |
| Air Pressure | 2.41 mm-H2O (one fan) |
| Acoustical Noise | 23.6 dBA |
| Life time/Fan Life time | 40,000 hours |
| pin connect | 2510 - 4Pin |
| Cooling Power | 180 W |
| Warranty | 2 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
Datasheet
| Warranty | 2 Years |
|---|---|
| Air Flow | 58.35 CFM (one fan ) |
| Heatpipe | Φ6mm x 4 pcs |
| Fan Speed | PWM 500 ~ 2000 RPM |
| Dimensions | 123.6 x 98.8 x 159.5 mm ( L x W x H) |
| Power Input | 5.76 W (one fan ) |
| Pin Connect | 2510 – 4Pin |
| Air Pressure | 2.41 mm-H2O (one fan) |
| Fan Quantity | 2 pcs |
| Model | CL-P075-AL12BL-A |
| Compatibility | Intel LGA 1700/1200/1156/1155/1151/1150AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1 |
| Cooling Power | 180 W |
| Fan Dimension | 120 x 120 x 25 mm ( L x W x H) |
| Rated Current | 0.48 A |
| Rated Voltage | 12V |
| Start Voltage | 6.0 V |
| Acoustical Noise | 23.6 dBA |
| Heatsink Material | Aluminum FinsCopper Heatpipes |
| Life Time/Fan Life Time | 40,000 hours |
