Thermaltake Toughliquid Ultra 280 RGB 280mm CPU Liquid Cooler
MPN CL-W371-PL14SW-A · Brand THERMALTAKE
The Thermaltake Toughliquid Ultra 280 RGB (CL-W371-PL14SW-A) is a 280mm AIO liquid cooler featuring a 2.1" rotational IPS LCD display, dual 140mm PWM fans, copper water block, and broad Intel LGA1700 and AMD AM5 socket compatibility
Inclusive of GST · GST invoice available
Overview
The Thermaltake Toughliquid Ultra 280 RGB is a 280mm all-in-one CPU liquid cooler built for enthusiasts who want both performance and personalisation in a single package. At its heart is a copper water block that pulls heat rapidly away from the CPU, feeding it into a 456 x 140 x 27 mm aluminium radiator where two 140mm PWM fans—spinning between 500 and 2000 RPM—push the heat out of your case. The pump runs at a rated 3500 RPM with a 12V supply, ensuring constant coolant circulation without requiring any top-up thanks to the low-evaporation rubber tubing (460 mm length). The standout feature is the 2.1-inch IPS TFT-LCD panel mounted on the pump head. With a 480×480 pixel resolution and a rotation range of 0° to 270°, the display can be oriented to suit any case layout. Through a Micro-USB to USB 9-pin interface and the TT RGB Plus 2.0 software (Windows 10/11), you can push JPEG, GIF, PNG, MP4, MOV, and AVI files to the screen, or switch to live system-temperature and clock readouts, or even a local weather widget—giving your build a genuinely functional aesthetic centrepiece. Lighting across the radiator and fans is managed by the same TT RGB Plus 2.0 ecosystem, with NeonMaker support for users who want to script custom lighting sequences. Fan speed, lighting profiles, and display content are all configurable from a single software interface. Socket compatibility is broad: on the Intel side, the included bracket set covers LGA 2066, 2011-3, 2011, 1700, 1200, 1156, 1155, 1151, and 1150; on AMD, it supports AM5, AM4, AM3+, AM3, AM2+, AM2, FM2, and FM1—meaning it fits current-generation platforms as well as legacy builds. Verified Specifications: • Part Number: CL-W371-PL14SW-A • Radiator: 456 × 140 × 27 mm, Aluminium • Radiator Size: 280 mm • Fan: 140 × 140 × 25 mm, PWM 500–2000 RPM, max 107 CFM, max 3.04 mm-H₂O, 30.7 dB-A (per fan) • Fan Power: 12V-3.48W / 5V-4.4W (per fan) • Pump: 3500 RPM, 12V, 0.42A, 5.04W • Water Block Material: Copper • Tube Length: 460 mm, Rubber • LCD: 2.1" IPS TFT, 480×480 px, 0°–270° rotation, 5V/1.15W • Display Interface: Micro USB to USB (9-pin) • OS Support: Windows 10/11 • Warranty: 2 Years

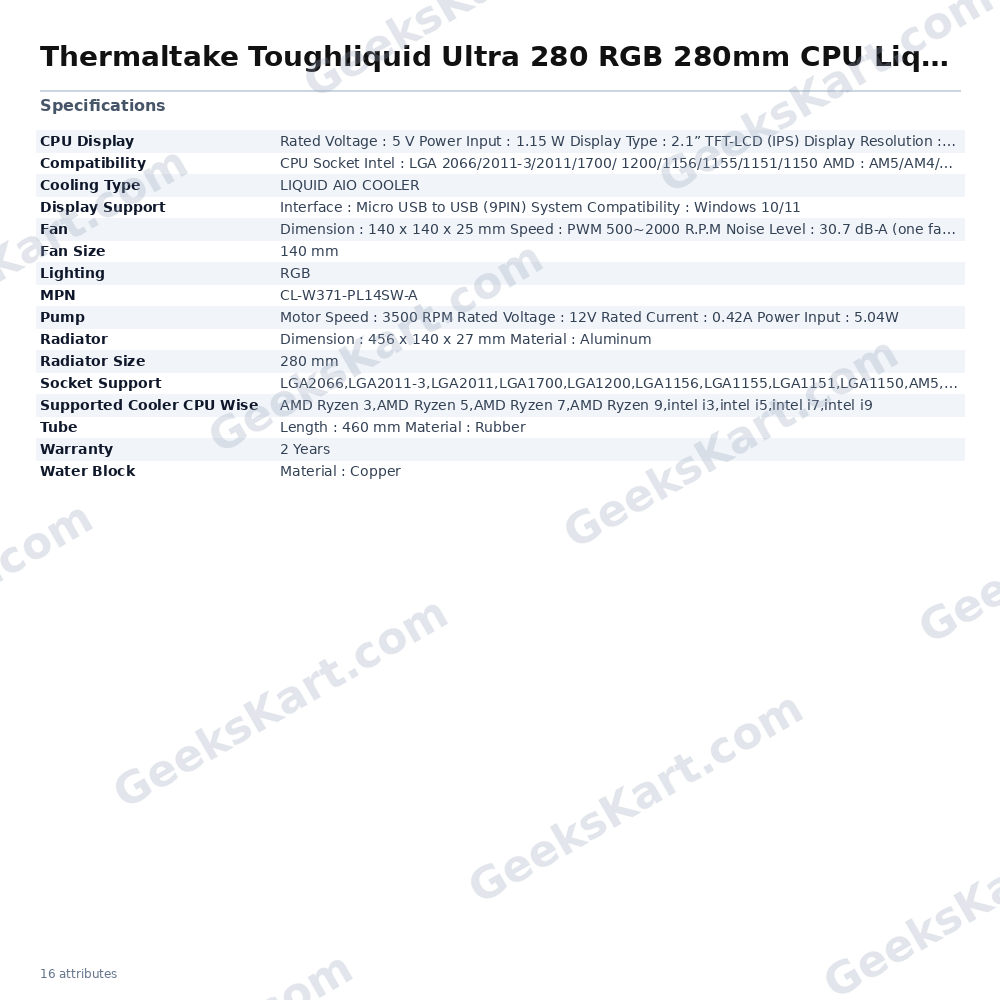

Datasheet
| Warranty | 2 Years |
|---|---|
| Fan | Dimension : 140 x 140 x 25 mm Speed : PWM 500~2000 R.P.M Noise Level : 30.7 dB-A (one fan) Power Input : 12V-3.48W , 5V-4.4W (one fan) Rated Voltage : 12 V & 5V Rated Current : 12V- 0.29A , 5V- 0.88A (one fan) Max. Air Flow : 107 CFM (one fan) Max. Pressure : 3.04 mm-H2O (one fan) |
| Pump | Motor Speed : 3500 RPM Rated Voltage : 12V Rated Current : 0.42A Power Input : 5.04W |
| Tube | Length : 460 mm Material : Rubber |
| Fan Size | 140 mm |
| Lighting | RGB |
| Radiator | Dimension : 456 x 140 x 27 mm Material : Aluminum |
| CPU Display | Rated Voltage : 5 V Power Input : 1.15 W Display Type : 2.1” TFT-LCD (IPS) Display Resolution : 480×480 (RGB) px Rotation Angle : 0°~270° |
| Water Block | Material : Copper |
| Cooling Type | LIQUID AIO COOLER |
| Compatibility | CPU Socket Intel : LGA 2066/2011-3/2011/1700/ 1200/1156/1155/1151/1150 AMD : AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1 |
| Radiator Size | 280 mm |
| Socket Support | LGA2066,LGA2011-3,LGA2011,LGA1700,LGA1200,LGA1156,LGA1155,LGA1151,LGA1150,AM5,AM4,AM3+,AM3,AM2+,AM2 |
| Display Support | Interface : Micro USB to USB (9PIN) System Compatibility : Windows 10/11 |
| Supported Cooler CPU Wise | AMD Ryzen 3,AMD Ryzen 5,AMD Ryzen 7,AMD Ryzen 9,intel i3,intel i5,intel i7,intel i9 |
