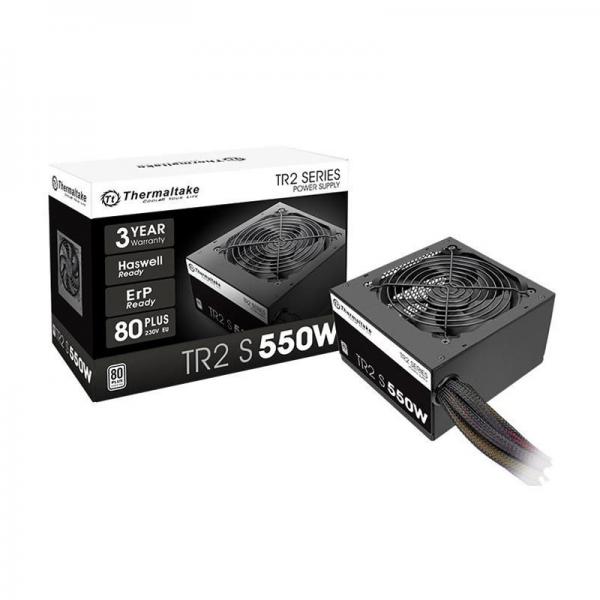

Features of THERMALTAKE TR2 S 550
THERMALTAKE TR2 S 550W Power Supply is a Series that come with different types of power supply that is 550W to 700W Power Supply. Thermaltake TR2 S 550W Power Supply saves a lot of energy by its high efficiency which is up to 86% which accommodates with the most demanding requirements. It has an embedded cooling fan that delivers an excellent flow of air at a very low noise level. In addition, the single +12V rail design enables the cooler to use non-stop with a stable and reliable performance. The fan is 120mm with has an intelligent RPM control to provide the best cooling performance and noise suppression to the cooler. This comes with multiple cable connectors. All the cables are sleeved as to prevent blockage of the flow of air and damage at any location.
This cooler saves energy through its high efficiency with 80 PLUS 230V. It comes with 7th generation Kaby Lake processor for achieving maximum no. of energy savings. All the components are of high quality and it enables non-stop usage with stable and reliable performance. This prevents any kind of explosion or leakage. The input voltage is 230V and the Input current is 7A max with 50 Hz – 60 Hz of frequency.
The maximum outputs +3.3 V, +5 V, +12V1 and +12 V2 are combined output power does not exceeds 550W. The dimensions of the power supply is 86 mm x 150 mm x 140 mm with MTBF of 100,000 hours minimum.
THERMALTAKE Power Supply has 3 years of manufacturer warranty.
Incorporating various high-quality components, the new TR2 S Series – models are rated from 350W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single 12V rail design enables non-stop usage with stable and reliable performance.
Ultra Quiet 120mm Fan
TR2 S Series adopts 120mm cooling fan with intelligent RPM control guarantees cool performance and silent operation.
Multiple Connectors
The cables used for TR2 S Series are all sleeved, users are able to properly route the cables in optimal location to prevent airflow blockage.
80 PLUS 230V Standard Certified and Kaby Lake-Ready
TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard certified. Additionally, TR2 S Series has been optimized to work with Intel’s new, Seventh-generation Kaby Lake processors to achieve maximum energy savings.
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Single 12V Output
TR2 S Series is equipped with powerful 12V rails, superior performance under all types of system loading.
Get the best 80 Plus White smps for pc price from us today!

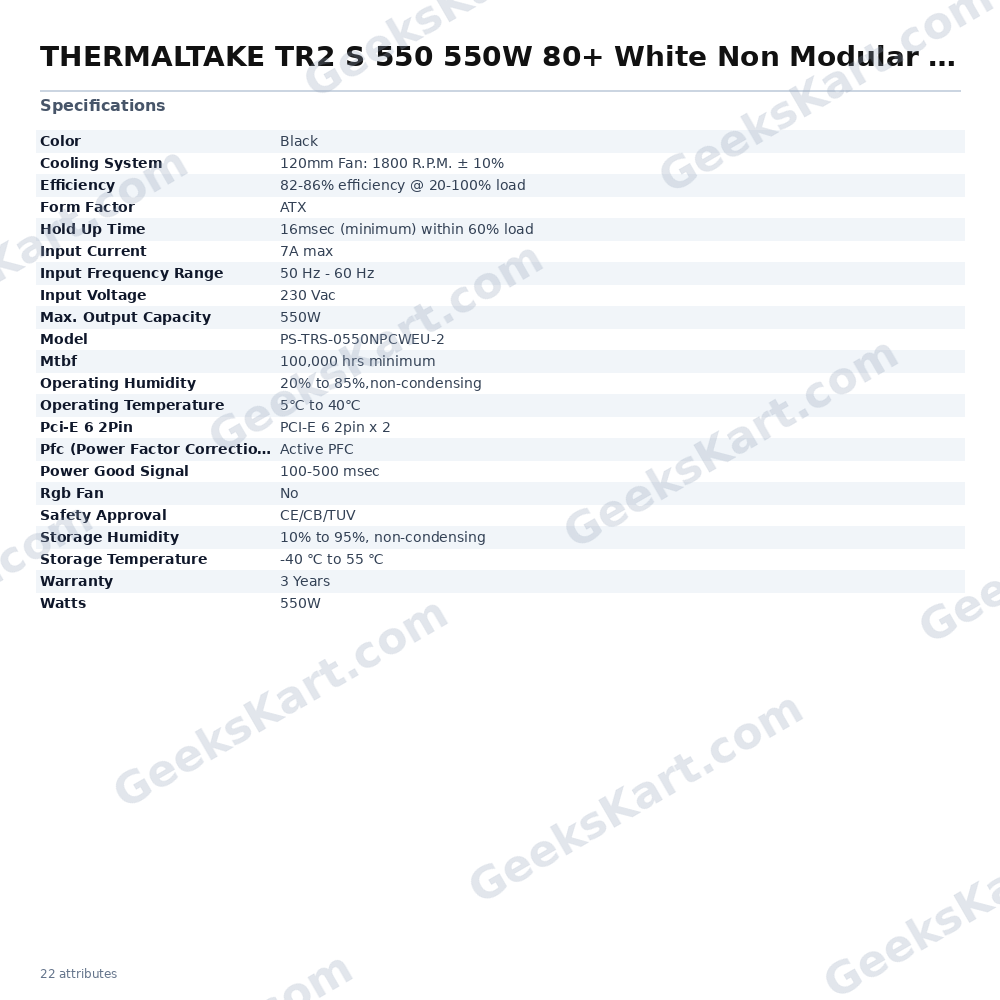

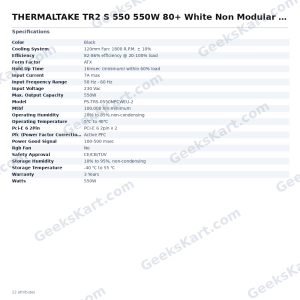

Specifications of THERMALTAKE TR2 S 550
| Model | PS-TRS-0550NPCWEU-2 |
| watts | 550W |
| RGB Fan | No |
| Form Factor | ATX |
| Type | Intel ATX 12V 2.3 |
| Max. Output Capacity | 550W |
| Color | Black |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | 16msec (minimum) within 60% load |
| Input Current | 7A max |
| Input Frequency Range | 50 Hz – 60 Hz |
| Input Voltage | 230 Vac |
| Operating Temperature | 5℃ to 40℃ |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperature | -40 ℃ to 55 ℃ |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 120mm Fan: 1800 R.P.M. ± 10% |
| Efficiency | 82-86% efficiency @ 20-100% load |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/CB/TUV |
| PCI-E 6 2pin | PCI-E 6 2pin x 2 |
| Warranty | 3 Years |
| Note | ***Features, Price and specifications are subject to change without notice. |
