THERMALTAKE TR2 S 650 650W 80+ White Non Modular ATX 2.0 Power Supply
MPN TT-TR2S-650W · Brand Thermaltake · ATX
Features of THERMALTAKE TR2 S 650 THERMALTAKE TR2 S 650W Power Supply has a non-modular supply of power having ATX form factor. This product has 80 white certifications. THERMALTAKE Power Supply has SMPS weighs around 1kg and the efficiency rating of PSU is 0.85. This is one of the ideal PC Power Supply as they are features no other power supply has. The brand Thermaltake has the finest and best coolers and cabinets in the whole country. It gives 3 types of power supply they are – the AT power s
Inclusive of GST · GST invoice available
Overview
Features of THERMALTAKE TR2 S 650
THERMALTAKE TR2 S 650W Power Supply has a non-modular supply of power having ATX form factor. This product has 80 white certifications.
THERMALTAKE Power Supply has SMPS weighs around 1kg and the efficiency rating of PSU is 0.85. This is one of the ideal PC Power Supply as they are features no other power supply has.
The brand Thermaltake has the finest and best coolers and cabinets in the whole country. It gives 3 types of power supply they are – the AT power supply, the ATX power supply and the ATX-2 power supply.
The PSU is fully modular or semi-modular. It also contain a 120mm cooling fan which has intelligent RPM control that gives optimum cooling temperature and is noise free.
This comes with multiple connector cables which are sleeved for prevention and blockage of the airflow. It comes with 7th generation Kaby Lake processor for achieving maximum no. of energy savings.
All the components are of high quality and it enables non-stop usage with stable and reliable performance. This prevents any kind of explosion or leakage. This product has 3 years of manufacturer warranty.
The input voltage is 230V and the Input current is 9A max with 50 Hz – 60 Hz of frequency. The maximum outputs +3.3 V, +5 V, +12V1, +12 V2 and +5Vsb are combined output power does not exceeds 650W.
The dimensions of the power supply is 86 mm x 150 mm x 140 mm with MTBF of 100,000 hours minimum. The storage temperature must be -40 degree C to +55 degree C.
Ultra Quiet 120mm Fan
TR2 S Series adopts a 120mm cooling fan with intelligent RPM control guarantees cool performance and silent operation.
Multiple Connectors
The cables used for TR2 S Series are all sleeved, users are able to properly route the cables in an optimal location to prevent airflow blockage.
80 PLUS 230V Standard Certified and Kaby Lake-Ready
TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard certified. Additionally, TR2 S Series has been optimized to work with Intel’s new, Seventh-generation Kaby Lake processors to achieve maximum energy savings.
High-Quality Components
High-quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion, and leakage.
Single 12V Output
TR2 S Series is equipped with powerful 12V rails, superior performance under all types of system loading.
Get the best 80 Plus White smps for pc price from us today!

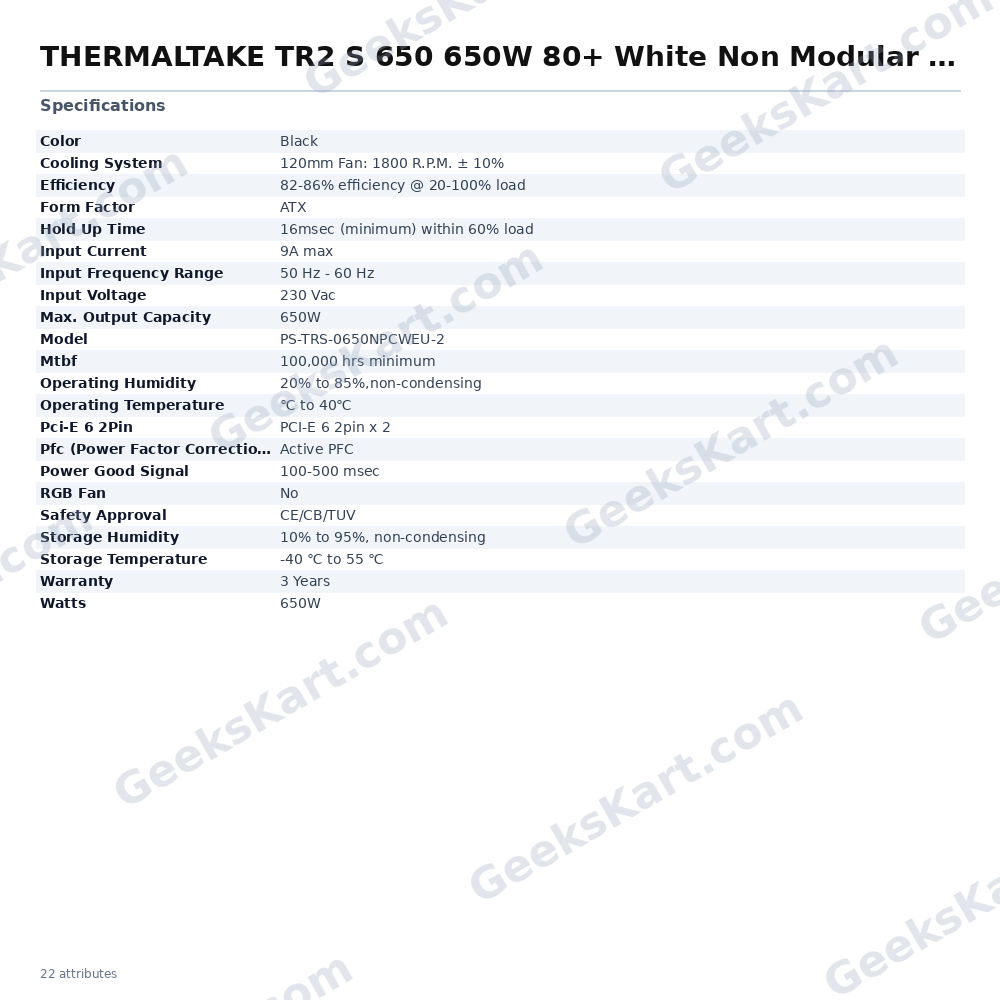

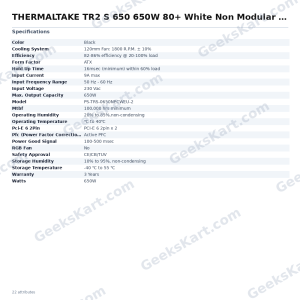

Specifications of THERMALTAKE TR2 S 650
| Model | PS-TRS-0650NPCWEU-2 |
| watts | 650W |
| RGB Fan | No |
| Form Factor | ATX |
| Type | Intel ATX 12V 2.3 |
| Max. Output Capacity | 650W |
| Color | Black |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | 16msec (minimum) within 60% load |
| Input Current | 9A max |
| Input Frequency Range | 50 Hz - 60 Hz |
| Input Voltage | 230 Vac |
| Operating Temperature | ℃ to 40℃ |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperature | -40 ℃ to 55 ℃ |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 120mm Fan: 1800 R.P.M. ± 10% |
| Efficiency | 82-86% efficiency @ 20-100% load |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/CB/TUV |
| PCI-E 6 2pin | PCI-E 6 2pin x 2 |
| Warranty | 3 Years |
| Note | ***Features, Price and specifications are subject to change without notice. |
Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| color | Black |
| Mtbf | 100,000 hrs minimum |
| Model | PS-TRS-0650NPCWEU-2 |
| Watts | 650W |
| RGB Fan | No |
| Efficiency | 82-86% efficiency @ 20-100% load |
| Hold Up Time | 16msec (minimum) within 60% load |
| Pci-E 6 2Pin | PCI-E 6 2pin x 2 |
| Input Current | 9A max |
| Input Voltage | 230 Vac |
| Cooling System | 120mm Fan: 1800 R.P.M. ± 10% |
| Safety Approval | CE/CB/TUV |
| Storage Humidity | 10% to 95%, non-condensing |
| Power Good Signal | 100-500 msec |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperature | -40 ℃ to 55 ℃ |
| Max. Output Capacity | 650W |
| Input Frequency Range | 50 Hz – 60 Hz |
| Operating Temperature | ℃ to 40℃ |
| Pfc (Power Factor Correction) | Active PFC |
