Thermaltake View 270 SP ARGB E-ATX Mid Tower Case
MPN CA-1Y7-00M1WN-02 · Brand THERMALTAKE · ATX, E-ATX, mATX, Mini-ITX
The Thermaltake View 270 SP Edition E-ATX Mid Tower Case features dual tempered glass panels, three pre-installed 120mm ARGB Lite fans, and support for up to a 360mm top radiator and 420mm GPU, making it a capable showcase build platform
Inclusive of GST · GST invoice available
Overview
The Thermaltake View 270 SP Edition Mid Tower Chassis (model CA-1Y7-00M1WN-02) is a purpose-built showcase enclosure that puts your components on full display through dual tempered glass panels — one on the front and one on the left side. The front panel features a specially designed graphic overlay, giving the build a bold aesthetic without obscuring the internal lighting show. Three Hydraulic Bearing 120mm ARGB Lite fans come pre-installed: two on the right intake side at 1,000 RPM and 22.3 dBA each, and one at the rear exhaust at the same speed and noise level. The ARGB lighting is compatible with motherboard sync software from ASUS, GIGABYTE, MSI, and ASRock, allowing unified lighting control across your entire platform. The chassis accepts up to nine 120mm fans in total across the top, right motherboard side, rear, and PSU cover positions, giving builders extensive airflow configuration options. Cooling ambitions are well catered for: the top of the case supports radiators up to 360mm, 240mm, or 120mm, while the rear accommodates a 120mm radiator. CPU coolers with a maximum height of 180mm fit comfortably, and graphics cards up to 420mm in length are supported. Power supplies up to 220mm in length are compatible, paired with a full-length PSU shroud that conceals cable runs and keeps the lower chamber tidy. Motherboard compatibility spans the full consumer range — Mini-ITX (6.7" × 6.7"), Micro-ATX (9.6" × 9.6"), ATX (12" × 9.6"), and E-ATX (12" × 13") boards all fit within the chassis. Seven expansion slots accommodate multi-GPU or high-slot-count add-in cards. Storage options include two 3.5" HDD bays and up to two 2.5" SSD positions, balancing traditional spinning storage with modern solid-state drives. Front-panel I/O sits on the top panel and includes one USB 3.2 Gen 2 Type-C port, two USB 3.0 ports, and a HD Audio jack for everyday convenience. The chassis is constructed from SPCC steel with a black finish and weighs 6.35 kg (approximately 14 lbs). The PSU is not included and follows the standard PS2 form factor. Verified Specifications: • Model: CA-1Y7-00M1WN-02 (View 270 SP Edition) • Dimensions (H × W × D): 456 × 230 × 454 mm (18 × 9.1 × 17.9 in) • Net Weight: 6.35 kg / 14 lbs • Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX • Pre-installed Fans: 3 × 120mm ARGB Lite Hydraulic Bearing (1,000 RPM, 22.3 dBA) • Max Fan Support: Up to 9 × 120mm (across all positions) • Radiator Support: Top – up to 360mm; Rear – 120mm • CPU Cooler Clearance: 180mm • GPU Clearance: 420mm • PSU Clearance: 220mm (Standard PS2, not included) • Drive Bays: 2 × 3.5", 1 or 2 × 2.5" • Expansion Slots: 7 • I/O: 1 × USB 3.2 Gen 2 Type-C, 2 × USB 3.0, HD Audio • Side Panels: Tempered Glass × 2 • Material: SPCC steel + Tempered Glass • Color: Black • Warranty: 3 Years

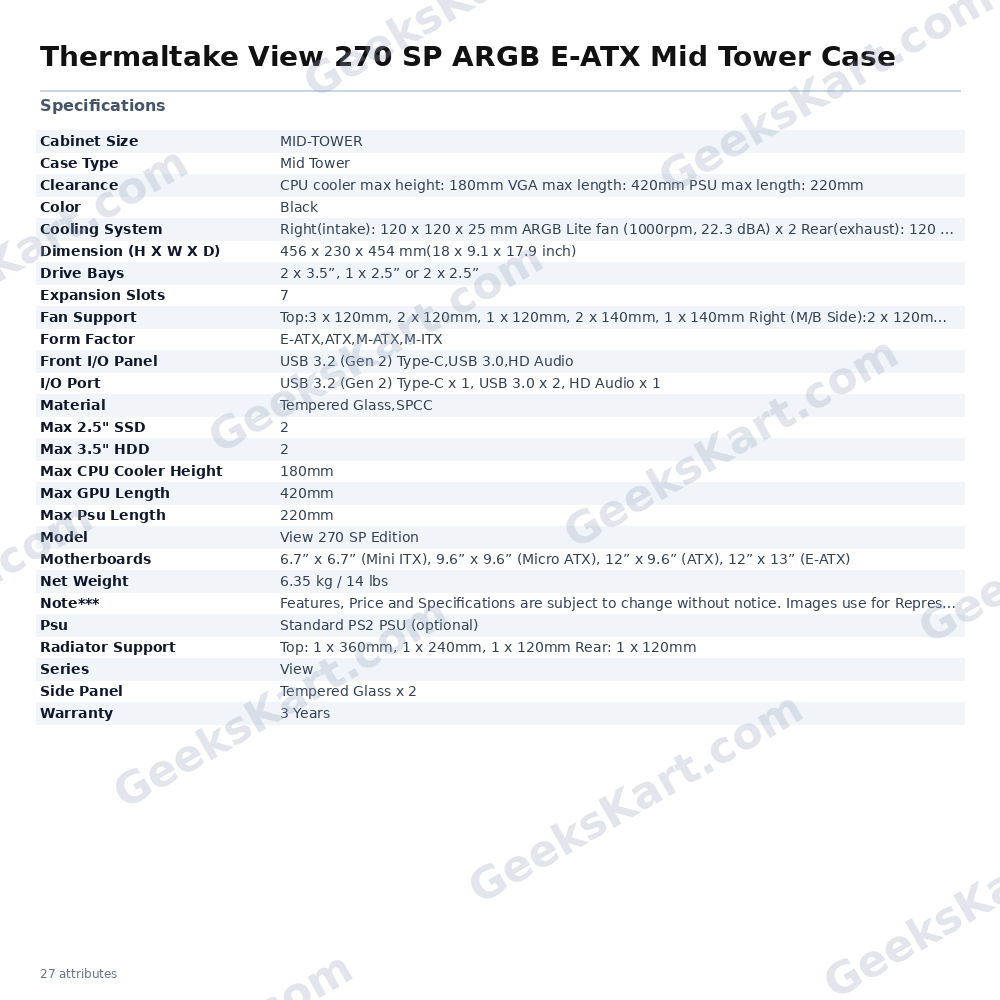

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX, E-ATX, mATX, Mini-ITX |
| color | Black |
| Psu | Standard PS2 PSU (optional) |
| Series | View |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| Material | Tempered Glass,SPCC |
| Case Type | Mid Tower |
| Clearance | CPU cooler max height: 180mm VGA max length: 420mm PSU max length: 220mm |
| Drive Bays | 2 x 3.5”, 1 x 2.5” or 2 x 2.5” |
| Model | View 270 SP Edition |
| Net Weight | 6.35 kg / 14 lbs |
| Side Panel | Tempered Glass x 2 |
| Fan Support | Top:3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm Right (M/B Side):2 x 120mm, 1 x 120mm Rear:1 x 120mm, 1 x 140mm Power Cover:3 x 120mm, 2 x 120mm, 1 x 120mm |
| Cabinet Size | MID-TOWER |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| Max 2.5" SSD | 2 |
| Max 3.5" HDD | 2 |
| Cooling System | Right(intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2 Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
| Max GPU Length | 420mm |
| Max Psu Length | 220mm |
| Expansion Slots | 7 |
| Front I/O Panel | USB 3.2 (Gen 2) Type-C,USB 3.0,HD Audio |
| Radiator Support | Top: 1 x 360mm, 1 x 240mm, 1 x 120mm Rear: 1 x 120mm |
| Dimension (H X W X D) | 456 x 230 x 454 mm(18 x 9.1 x 17.9 inch) |
| Max CPU Cooler Height | 180mm |
