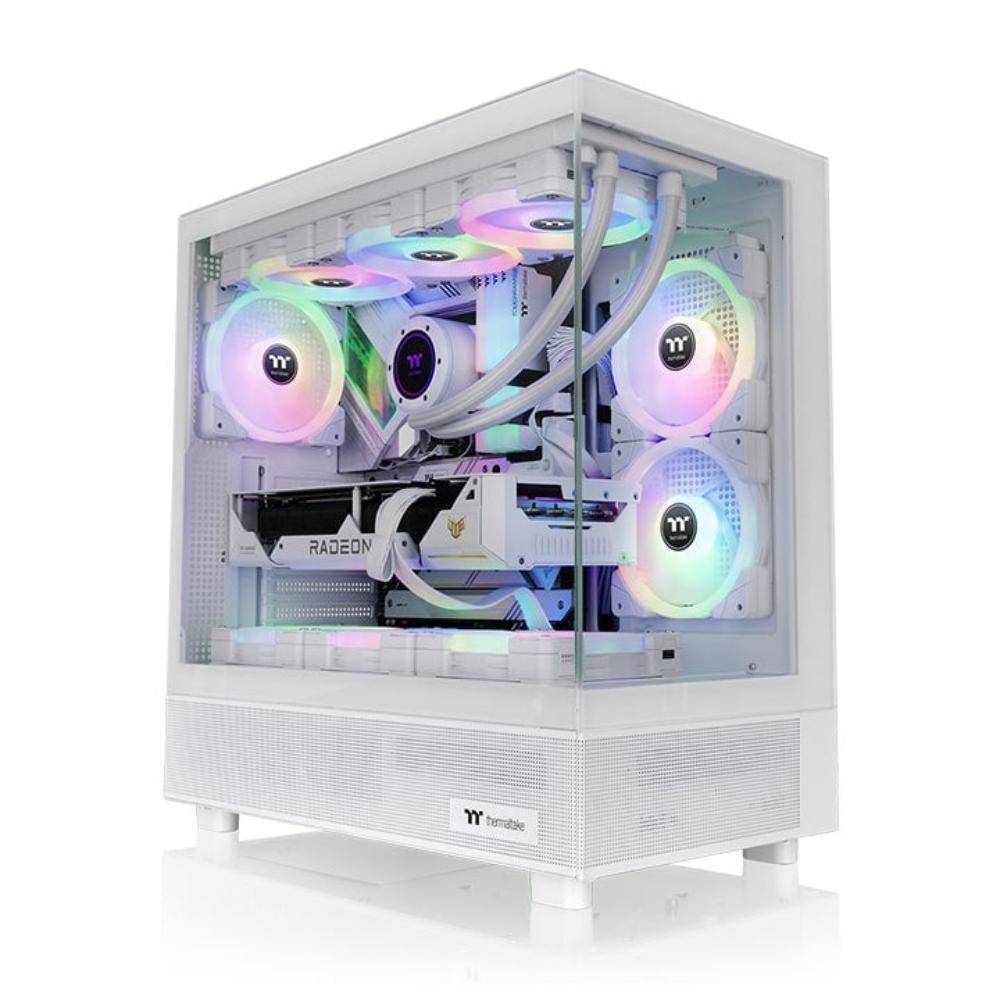

THERMALTAKE View 270 TG ARGB ATX Mid Tower Cabinet ( Snow White )
MPN THERMALTAKE-VIEW-270-WHITE · Brand Thermaltake
The Thermaltake View 270 TG ARGB Snow White is an ATX mid tower cabinet featuring dual tempered glass panels, a pre-installed 140 mm ARGB fan, support for up to 360 mm radiators, and ARGB sync compatibility with major motherboard brands
Inclusive of GST · GST invoice available
Overview
The Thermaltake View 270 TG ARGB Snow White is an ATX mid tower chassis designed to put your build on full display. Two tempered glass panels — one on the front and one on the left side — offer an unobstructed view of your components and lighting setup, making it a strong choice for enthusiasts who want their system visible from multiple angles. Out of the box, the case ships with one pre-installed CT140 ARGB Sync fan at the rear (140 x 140 x 25 mm, 1500 rpm, 30.5 dBA), providing immediate exhaust cooling. ARGB lighting from this fan can be synchronised using motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Cooling flexibility is a key strength of the View 270. The top of the chassis accommodates radiators up to 360 mm, and up to three 120 mm or two 140 mm fans can be installed in that position. The right motherboard side panel supports up to two 120 mm fans, and the power cover area accepts up to three additional 120 mm fans — giving builders significant airflow customisation options without chassis modifications. Cable management is aided by a full-length power supply shroud that conceals PSU cabling and keeps the area around storage drives tidy. The front I/O panel includes a USB 3.2 Gen 2 Type-C port, two USB 3.0 ports, and HD audio jacks — a practical selection for modern peripherals. The chassis is constructed from SPCC steel and supports motherboards from Mini-ITX through E-ATX (up to 12" x 13"). Seven expansion slots accommodate multi-GPU or high-profile card configurations, and GPU clearance extends to 420 mm, covering virtually all current discrete graphics cards. CPU cooler height clearance is rated at 180 mm. Verified Specifications: - Part Number: CA-1Y7-00M6WN-00 - Dimensions (H x W x D): 456 x 230 x 454 mm (18 x 9.1 x 17.9 in) - Net Weight: 6.3 kg / 13.9 lbs - Material: SPCC steel - Panels: Tempered glass x 2 (front, left) - Included Fan: 1 x CT140 ARGB (140 mm, 1500 rpm, 30.5 dBA, rear exhaust) - Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX - Drive Bays: 2 x 3.5", 1 x 2.5" (or 2 x 2.5") - Expansion Slots: 7 - Radiator Support: Top — 360/240/120 mm; Rear — 120 mm - CPU Cooler Clearance: 180 mm - GPU Clearance: 420 mm - PSU: Standard PS2 (not included) - I/O: USB 3.2 Gen 2 Type-C x1, USB 3.0 x2, HD Audio x1

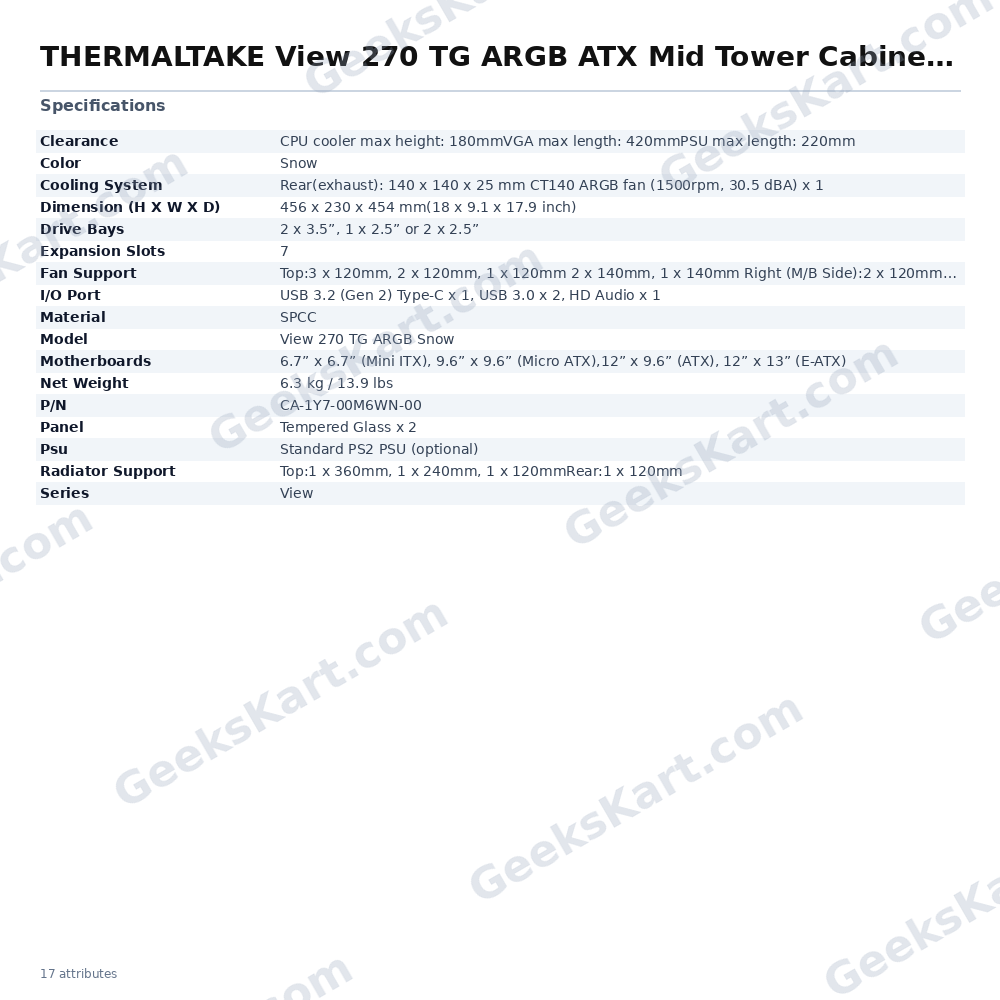

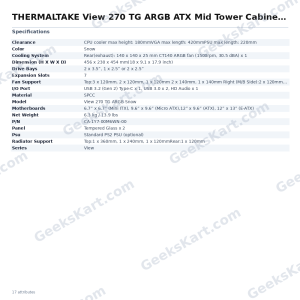

Datasheet
| P/N | CA-1Y7-00M6WN-00 |
|---|---|
| Psu | Standard PS2 PSU (optional) |
| Model | View 270 TG ARGB Snow |
| Panel | Tempered Glass x 2 |
| Series | View |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| Material | SPCC |
| Clearance | CPU cooler max height: 180mmVGA max length: 420mmPSU max length: 220mm |
| Drive Bays | 2 x 3.5”, 1 x 2.5” or 2 x 2.5” |
| Net Weight | 6.3 kg / 13.9 lbs |
| Fan Support | Top:3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right (M/B Side):2 x 120mm, 1 x 120mmRear:1 x 120mm, 1 x 140mmPower Cover:3 x 120mm, 2 x 120mm, 1 x 120mm |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| Cooling System | Rear(exhaust): 140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1 |
| Expansion Slots | 7 |
| Radiator Support | Top:1 x 360mm, 1 x 240mm, 1 x 120mmRear:1 x 120mm |
| Dimension (H X W X D) | 456 x 230 x 454 mm(18 x 9.1 x 17.9 inch) |
| Color | Snow |
