Thermaltake View 300 MX ARGB E-ATX Mid Tower Case
MPN CA-1P6-00M1WN-00 · Brand THERMALTAKE · ATX, E-ATX, mATX, Mini-ITX
The Thermaltake View 300 MX ARGB E-ATX Mid Tower Case features dual swappable front panels, two pre-installed 200mm ARGB PWM fans, 4mm tempered glass, and simultaneous triple 360mm radiator support for versatile high-performance builds
Inclusive of GST · GST invoice available
Overview
The Thermaltake View 300 MX ARGB Mid-Tower Chassis is a feature-rich E-ATX cabinet engineered for builders who demand both strong thermal performance and visual flexibility. At its heart, the View 300 MX ships with two pre-installed 200mm ARGB PWM fans at the front intake and one 120mm ARGB PWM fan at the rear exhaust, providing substantial airflow across the full length of the chassis right out of the box. One of the most distinctive elements of the View 300 MX is its dual front panel system — a first for the Thermaltake View series. Included in the box are two interchangeable front panels: a tempered glass mesh panel for a window-style aesthetic, and a perforated steel panel with TT logo cutouts for enhanced direct airflow. Switching between them lets you tailor the look and ventilation characteristics of your build without additional purchases. Cooling headroom is exceptional. The case supports up to 360mm radiators simultaneously at the front, top, and motherboard side (right panel), enabling demanding dual-radiator liquid cooling configurations. The 4mm tempered glass side panel — thicker than standard acrylic alternatives — offers clear visibility into the interior while resisting everyday scratches. The patented rotatable PCI-E slots support vertical GPU installation with reduced thickness constraints compared to conventional designs, and an enclosed riser cable bracket accommodates a 180-degree connector orientation. Cable management is aided by a removable PSU cover that conceals routing behind the motherboard tray. Magnetic dust filters are positioned at the top, right, and bottom to help keep the interior clean, and all filters are tool-free removable for maintenance. The front I/O panel includes a USB 3.2 Gen 2 Type-C port, two USB 3.0 ports, and an HD Audio combo jack, catering to modern peripherals. ARGB lighting on all three pre-installed fans can be controlled via a physical button or compatible motherboard software. Verified Specifications: - Part Number: CA-1P6-00M1WN-00 - Case Type: Mid Tower - Dimensions (H × W × D): 505 × 230 × 506 mm (19.9 × 9.1 × 19.9 in) - Net Weight: 10.4 kg / 22.9 lbs - Colour: Black - Material: SPCC steel + ABS; 4mm Tempered Glass side panel - Motherboard Support: Mini-ITX (6.7″×6.7″), Micro-ATX (9.6″×9.6″), ATX (12″×9.6″), E-ATX (12″×13″) - Pre-installed Fans: 2× 200×200×30mm ARGB PWM (1000 RPM, 35.5 dBA) front; 1× 120×120×25mm ARGB PWM (1500 RPM, 27.2 dBA) rear - Fan Support: Front up to 2×200mm; Top up to 1×200mm; M/B Side up to 3×120mm (without HDD rack); Rear 1×120mm - Radiator Support: Front/Top up to 360mm; M/B Side up to 360mm (without HDD rack); Rear 1×120mm - Drive Bays: 2× 3.5″ HDD, 4× 2.5″ SSD (expandable to 6× 2.5″) - Expansion Slots: 7 (rotatable patented design) - Front I/O: USB 3.2 Gen 2 Type-C ×1, USB 3.0 ×2, HD Audio ×1 - CPU Cooler Clearance: 175mm - GPU Length Clearance: 400mm (without reservoir); 280mm (with reservoir) - PSU Length Clearance: 200mm (Standard PS2 ATX PSU, sold separately) - Warranty: 3 Years

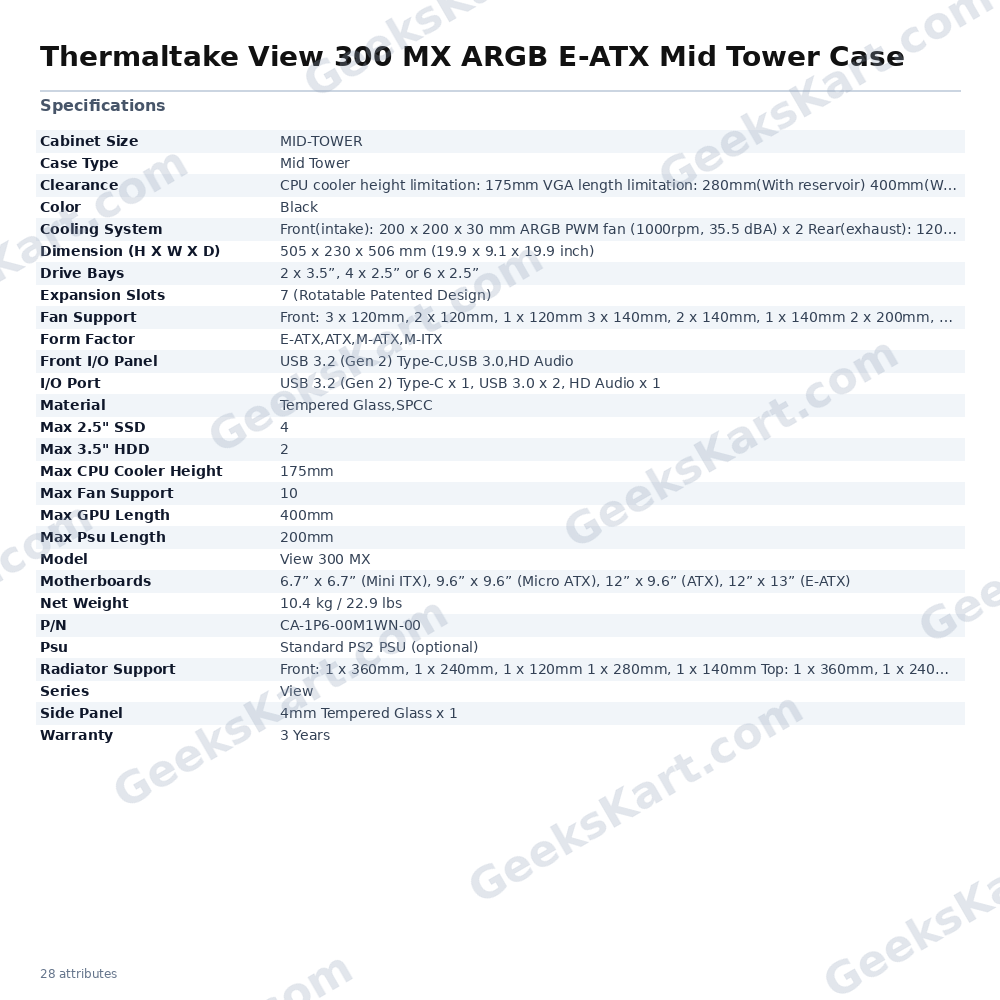

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX, E-ATX, mATX, Mini-ITX |
| color | Black |
| P/N | CA-1P6-00M1WN-00 |
| Psu | Standard PS2 PSU (optional) |
| Model | View 300 MX |
| Series | View |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| Material | Tempered Glass,SPCC |
| Case Type | Mid Tower |
| Clearance | CPU cooler height limitation: 175mm VGA length limitation: 280mm(With reservoir) 400mm(Without reservoir) PSU length limitation: 200mm |
| Drive Bays | 2 x 3.5”, 4 x 2.5” or 6 x 2.5” |
| Net Weight | 10.4 kg / 22.9 lbs |
| Side Panel | 4mm Tempered Glass x 1 |
| Fan Support | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm 2 x 200mm, 1 x 200mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm 1 x 200mm Right(M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm (Without HDD Rack) Rear: 1 x 120mm |
| Cabinet Size | MID-TOWER |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| Max 2.5" SSD | 4 |
| Max 3.5" HDD | 2 |
| Cooling System | Front(intake): 200 x 200 x 30 mm ARGB PWM fan (1000rpm, 35.5 dBA) x 2 Rear(exhaust): 120 x 120 x 25 mm ARGB PWM fan (1500rpm, 27.2 dBA) x 1 |
| Max GPU Length | 400mm |
| Max Psu Length | 200mm |
| Expansion Slots | 7 (Rotatable Patented Design) |
| Front I/O Panel | USB 3.2 (Gen 2) Type-C,USB 3.0,HD Audio |
| Max Fan Support | 10 |
| Radiator Support | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right(M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm(Without HDD Rack) Rear: 1 x 120mm |
| Dimension (H X W X D) | 505 x 230 x 506 mm (19.9 x 9.1 x 19.9 inch) |
| Max CPU Cooler Height | 175mm |
