Thermaltake View 300 MX Snow ARGB White E-ATX Mid Tower Case
MPN CA-1P6-00M6WN-00 · Brand THERMALTAKE · ATX, E-ATX, mATX, Mini-ITX
The Thermaltake View 300 MX Snow ARGB White is an E-ATX mid-tower case featuring dual interchangeable front panels, three pre-installed ARGB PWM fans, dual 360mm radiator support, patented rotatable PCI-E slots, and a 4mm tempered glass side panel
Inclusive of GST · GST invoice available
Overview
The Thermaltake View 300 MX Snow is a white E-ATX mid-tower chassis designed to accommodate demanding builds without compromising on aesthetics or airflow. At its core, the case ships with two pre-installed 200 x 200 x 30 mm ARGB PWM fans at the front — spinning at up to 1000 RPM and producing 35.5 dBA — and one 120 x 120 x 25 mm ARGB PWM fan at the rear running at 1500 RPM and 27.2 dBA, providing strong airflow from the moment you power One of the standout features of the View 300 MX Snow is its dual front panel system: the case ships with both a tempered glass mesh panel for showcase builds and a perforated steel panel with TT logo cutouts for users who prefer maximum airflow. Swapping between them takes minutes and requires no tools. On the cooling front, the chassis supports simultaneous dual 360mm radiator installation — at the front, top, and motherboard side — making it a capable foundation for enthusiast liquid-cooling setups. The 4mm tempered glass side panel offers a clear view of components while being thicker and more scratch-resistant than standard acrylic alternatives. The View 300 MX Snow includes Thermaltake's patented rotatable PCI-E slots, enabling vertical GPU mounting to show off your graphics card. The enclosed riser cable bracket supports a 180° connector, keeping cables tidy. A removable PSU cover further cleans up cable routing inside the chassis. Dust management is handled by fine magnetic filters on the top, right, and bottom panels — all removable for easy cleaning. Verifiable Specifications: — Part Number: CA-1P6-00M6WN-00 — Form Factor: Mid Tower — Dimensions (H × W × D): 505 × 230 × 506 mm (19.9 × 9.1 × 19.9 in) — Net Weight: 10.4 kg / 22.9 lbs — Colour: White — Material: SPCC steel + ABS; Side panel: 4mm Tempered Glass — Motherboard Support: Mini-ITX (6.7"×6.7"), Micro-ATX (9.6"×9.6"), ATX (12"×9.6"), E-ATX (12"×13") — Pre-installed Fans: 2× 200mm ARGB PWM (front, 1000 RPM, 35.5 dBA) + 1× 120mm ARGB PWM (rear, 1500 RPM, 27.2 dBA) — Fan Support: Front up to 2× 200mm / 3× 140mm / 3× 120mm; Top up to 1× 200mm / 2× 140mm / 3× 120mm; M/B side up to 3× 120mm; Rear 1× 120mm — Radiator Support: Front/Top/M/B side up to 360mm; Rear 120mm — CPU Cooler Clearance: 175mm — GPU Clearance: 400mm (without reservoir) / 280mm (with reservoir) — PSU Clearance: 200mm (Standard PS2 PSU, optional) — Drive Bays: 2× 3.5", 4× 2.5" (or 6× 2.5" total) — Expansion Slots: 7 (rotatable, patented) — Front I/O: USB 3.2 Gen 2 Type-C × 1, USB 3.0 × 2, HD Audio × 1 — Warranty: 3 Years

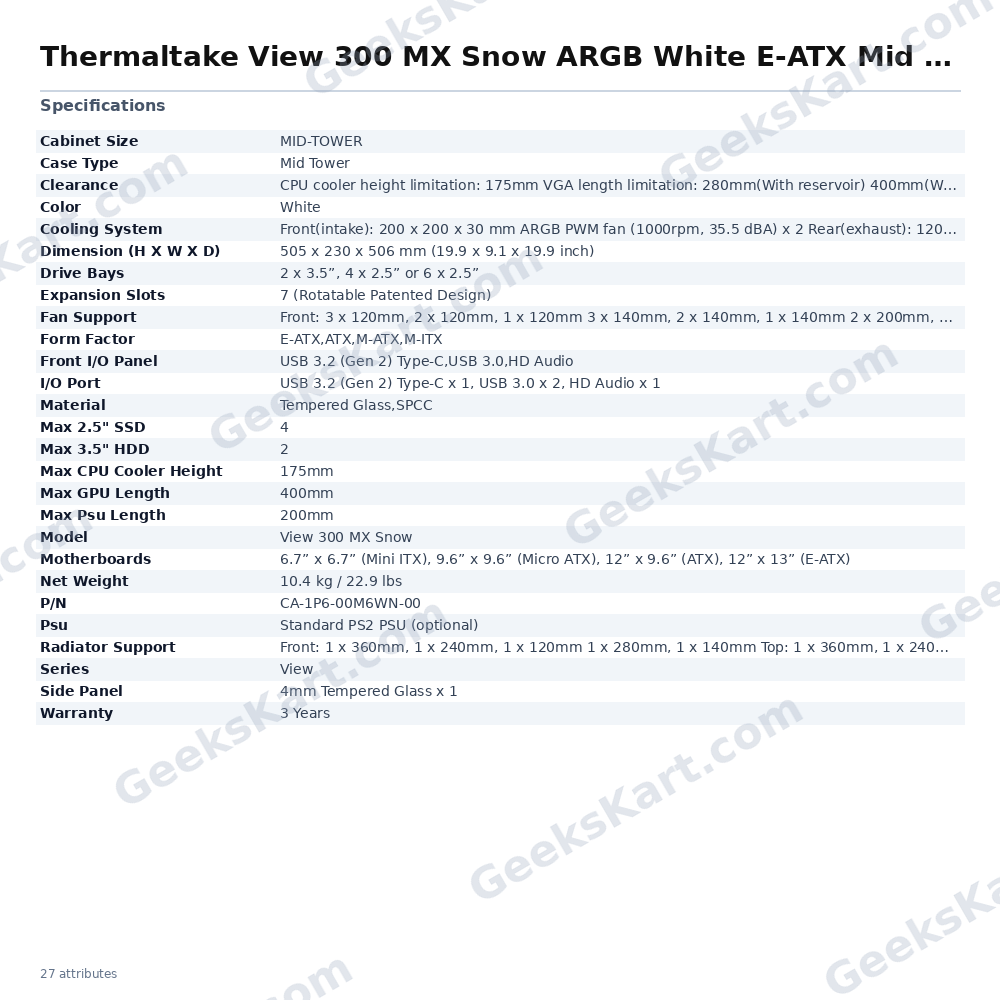

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX, E-ATX, mATX, Mini-ITX |
| color | White |
| P/N | CA-1P6-00M6WN-00 |
| Psu | Standard PS2 PSU (optional) |
| Model | View 300 MX Snow |
| Series | View |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| Material | Tempered Glass,SPCC |
| Case Type | Mid Tower |
| Clearance | CPU cooler height limitation: 175mm VGA length limitation: 280mm(With reservoir) 400mm(Without reservoir) PSU length limitation: 200mm |
| Drive Bays | 2 x 3.5”, 4 x 2.5” or 6 x 2.5” |
| Net Weight | 10.4 kg / 22.9 lbs |
| Side Panel | 4mm Tempered Glass x 1 |
| Fan Support | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm 2 x 200mm, 1 x 200mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm 1 x 200mm Right(M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm (Without HDD Rack) Rear: 1 x 120mm |
| Cabinet Size | MID-TOWER |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| Max 2.5" SSD | 4 |
| Max 3.5" HDD | 2 |
| Cooling System | Front(intake): 200 x 200 x 30 mm ARGB PWM fan (1000rpm, 35.5 dBA) x 2 Rear(exhaust): 120 x 120 x 25 mm ARGB PWM fan (1500rpm, 27.2 dBA) x 1 |
| Max GPU Length | 400mm |
| Max Psu Length | 200mm |
| Expansion Slots | 7 (Rotatable Patented Design) |
| Front I/O Panel | USB 3.2 (Gen 2) Type-C,USB 3.0,HD Audio |
| Radiator Support | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right(M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm(Without HDD Rack) Rear: 1 x 120mm |
| Dimension (H X W X D) | 505 x 230 x 506 mm (19.9 x 9.1 x 19.9 inch) |
| Max CPU Cooler Height | 175mm |
