Thermaltake View 380 TG ARGB ATX Mid Tower Case
MPN CA-1Z2-00M1WN-00 · Brand THERMALTAKE · ATX, mATX, Mini-ITX
The Thermaltake View 380 TG ARGB is a dual-chamber ATX mid-tower with front and side tempered glass panels, four pre-installed 120 mm ARGB fans, and support for up to 360 mm radiators — ideal for showcase builds
Inclusive of GST · GST invoice available
Overview
The Thermaltake View 380 TG ARGB is a mid-tower PC cabinet engineered for builders who want to showcase their components without sacrificing airflow or compatibility. Its defining design feature is the dual-chamber layout, which separates the primary motherboard compartment from the power supply and cable management zone, keeping the visible interior clean and uncluttered. A full-height tempered glass side panel and a tempered glass front panel maximise the viewing angle of installed hardware, letting ARGB lighting take centre stage. Out of the box, four 120 mm ARGB Lite fans come pre-installed — three on the right intake panel and one at the rear exhaust — each spinning at 1000 RPM with a noise output of 22.3 dBA, making initial builds whisper-quiet without any additional fan purchases. The extensive radiator support accommodates up to a 360 mm unit in both the top and bottom positions, a 280 mm or 240 mm on the right side, and a 120 mm at the rear, giving custom-loop and all-in-one liquid-cooling enthusiasts considerable flexibility. Motherboard compatibility spans Mini-ITX (6.7" × 6.7"), Micro-ATX (9.6" × 9.6"), and full ATX (12" × 9.6") form factors, with seven expansion slots for multi-GPU or high-slot-count builds. The front I/O panel features a USB 3.2 Gen 2 Type-C port, two USB 3.0 ports, and HD Audio, keeping modern connectivity requirements covered at the front of the chassis. The case ships without a PSU; a standard PS2 power supply is required separately. Verified Specifications: - Model: View 380 TG ARGB | SKU: CA-1Z2-00M1WN-00 - Case Type: Mid Tower | Color: Black - Dimensions: 410 × 285 × 442 mm (16.14 × 11.22 × 17.4 in) - Weight: 6.93 kg (15.28 lbs) - Material: SPCC steel - Pre-installed Fans: 4 × 120 mm ARGB Lite (1000 RPM, 22.3 dBA) - Fan Support: Top 3×120mm; Right 3×120mm or 2×140mm; Rear 1×120mm; Bottom 3×120mm - Radiator Support: Top/Bottom up to 360 mm; Right up to 280 mm; Rear 120 mm - Drive Bays: 1 × 3.5", 2 × 2.5" - Expansion Slots: 7 - Motherboard Support: Mini-ITX, Micro-ATX, ATX - Max CPU Cooler Height: 160 mm - Max GPU Length: 415 mm - Max PSU Length: 200 mm - I/O: USB 3.2 Gen 2 Type-C × 1, USB 3.0 × 2, HD Audio × 1 - PSU: Standard PS2 (not included) - Warranty: 3 Years

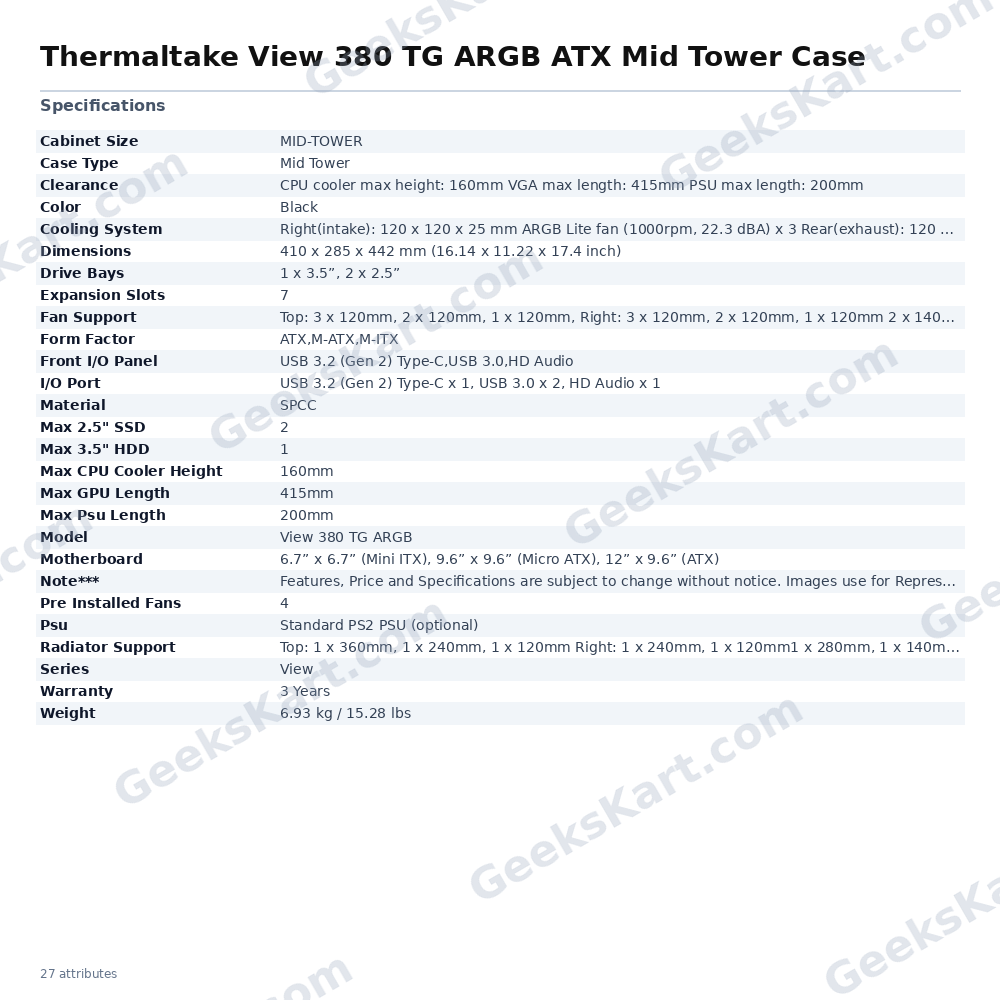

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX, mATX, Mini-ITX |
| color | Black |
| Psu | Standard PS2 PSU (optional) |
| Series | View |
| Weight | 6.93 kg / 15.28 lbs |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| Material | SPCC |
| Case Type | Mid Tower |
| Clearance | CPU cooler max height: 160mm VGA max length: 415mm PSU max length: 200mm |
| Dimensions | 410 x 285 x 442 mm (16.14 x 11.22 x 17.4 inch) |
| Drive Bays | 1 x 3.5”, 2 x 2.5” |
| Model | View 380 TG ARGB |
| Fan Support | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, Right: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Rear: 1 x 120mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm |
| Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| Cabinet Size | MID-TOWER |
| Max 2.5" SSD | 2 |
| Max 3.5" HDD | 1 |
| Cooling System | Right(intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 3 Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
| Max GPU Length | 415mm |
| Max Psu Length | 200mm |
| Expansion Slots | 7 |
| Front I/O Panel | USB 3.2 (Gen 2) Type-C,USB 3.0,HD Audio |
| Radiator Support | Top: 1 x 360mm, 1 x 240mm, 1 x 120mm Right: 1 x 240mm, 1 x 120mm1 x 280mm, 1 x 140mm Rear: 1 x 120mm Bottom: 1 x 360mm, 1 x 240mm, 1 x 120mm |
| Pre Installed Fans | 4 |
| Max CPU Cooler Height | 160mm |
