Thermaltake View 380 TG ARGB Snow ATX Mid Tower Case
MPN CA-1Z2-00M6WN-00 · Brand THERMALTAKE · ATX, mATX, Mini-ITX
The Thermaltake View 380 TG ARGB Snow is a white ATX mid-tower case featuring dual-chamber design, front and side tempered glass panels, four pre-installed 120 mm ARGB fans, and support for up to 360 mm radiators
Inclusive of GST · GST invoice available
Overview
The Thermaltake View 380 TG ARGB Snow is a white mid-tower PC case designed to showcase your build through its front and side tempered glass panels while keeping noise levels in check. The dual-chamber layout separates the motherboard and GPU compartment from the PSU and cable-management zone, contributing to a cleaner interior aesthetic and improved airflow routing. Four 120 mm ARGB Lite fans come pre-installed — three on the right intake position and one at the rear exhaust — each running at 1000 RPM and rated at 22.3 dBA. Additional fan slots are available on the top, right, and bottom panels, accommodating configurations up to 3 x 120 mm in each of those positions, along with 140 mm alternatives on the right and top. The case supports radiators up to 360 mm in the top and bottom positions, making it a capable platform for custom liquid-cooling setups. The case is constructed from SPCC steel and supports Mini-ITX, Micro-ATX, and full ATX motherboards. A CPU cooler height clearance of 160 mm comfortably accommodates most tower air coolers, while the 415 mm GPU clearance provides room for even the longest contemporary graphics cards. The PSU bay accepts standard PS2 power supplies up to 200 mm in length. Front-panel connectivity includes a USB 3.2 Gen 2 Type-C port, two USB 3.0 ports, and an HD Audio jack — a modern and practical I/O layout for everyday use. Verifiable Specifications: - Model: View 380 TG ARGB Snow | SKU: CA-1Z2-00M6WN-00 - Case Type: Mid Tower | Color: Snow (White) - Dimensions: 410 x 285 x 442 mm (16.14 x 11.22 x 17.4 in) - Weight: 6.93 kg / 15.28 lbs - Material: SPCC steel - Motherboard Support: Mini-ITX, Micro-ATX, ATX - Pre-installed Fans: 4 x 120 mm ARGB Lite (1000 RPM, 22.3 dBA) - Fan Support: Top/Right/Bottom up to 3 x 120 mm; Right up to 2 x 140 mm; Rear 1 x 120 mm - Radiator Support: Top/Bottom up to 360 mm; Right up to 280 mm; Rear up to 120 mm - Drive Bays: 1 x 3.5-inch, 2 x 2.5-inch - Expansion Slots: 7 - CPU Cooler Clearance: 160 mm max - GPU Clearance: 415 mm max - PSU Clearance: 200 mm max - Front I/O: USB 3.2 Gen 2 Type-C x1, USB 3.0 x2, HD Audio x1 - PSU: Standard PS2 (not included) - Warranty: 3 Years

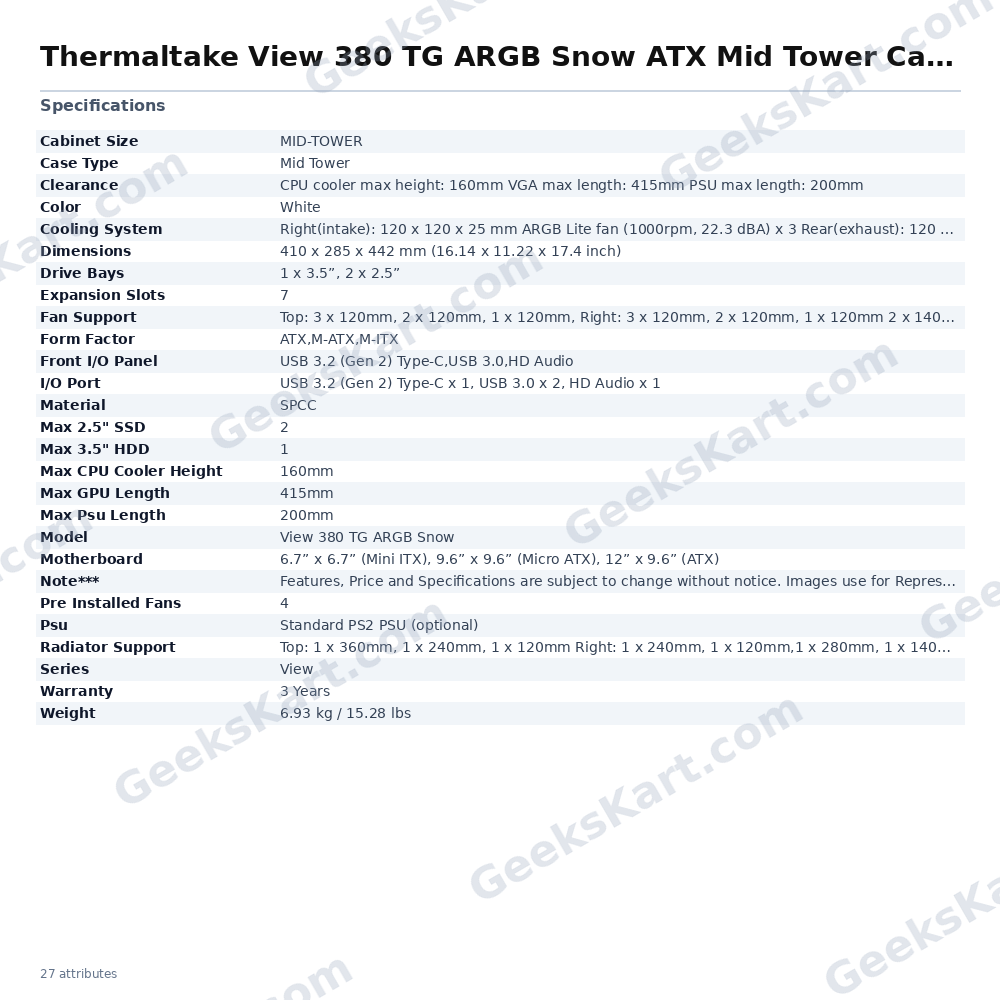

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX, mATX, Mini-ITX |
| color | White |
| Psu | Standard PS2 PSU (optional) |
| Series | View |
| Weight | 6.93 kg / 15.28 lbs |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| Material | SPCC |
| Case Type | Mid Tower |
| Clearance | CPU cooler max height: 160mm VGA max length: 415mm PSU max length: 200mm |
| Dimensions | 410 x 285 x 442 mm (16.14 x 11.22 x 17.4 inch) |
| Drive Bays | 1 x 3.5”, 2 x 2.5” |
| Model | View 380 TG ARGB Snow |
| Fan Support | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, Right: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Rear: 1 x 120mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm |
| Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| Cabinet Size | MID-TOWER |
| Max 2.5" SSD | 2 |
| Max 3.5" HDD | 1 |
| Cooling System | Right(intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 3 Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
| Max GPU Length | 415mm |
| Max Psu Length | 200mm |
| Expansion Slots | 7 |
| Front I/O Panel | USB 3.2 (Gen 2) Type-C,USB 3.0,HD Audio |
| Radiator Support | Top: 1 x 360mm, 1 x 240mm, 1 x 120mm Right: 1 x 240mm, 1 x 120mm,1 x 280mm, 1 x 140mm Rear: 1 x 120mm Bottom: 1 x 360mm, 1 x 240mm, 1 x 120mm |
| Pre Installed Fans | 4 |
| Max CPU Cooler Height | 160mm |
