THERMALTAKE View 380 XL TG ARGB ATX Mid Tower Cabinet (Black)
MPN THERMALTAKE-VIEW-380-XL-TG-ARGB-BLACK · Brand Thermaltake
The Thermaltake View 380 XL TG ARGB is a dual-chamber ATX mid-tower case with four pre-installed ARGB fans, dual tempered glass panels, support for 360mm radiators, and compatibility with hidden-connector motherboards from major brands
Inclusive of GST · GST invoice available
Overview

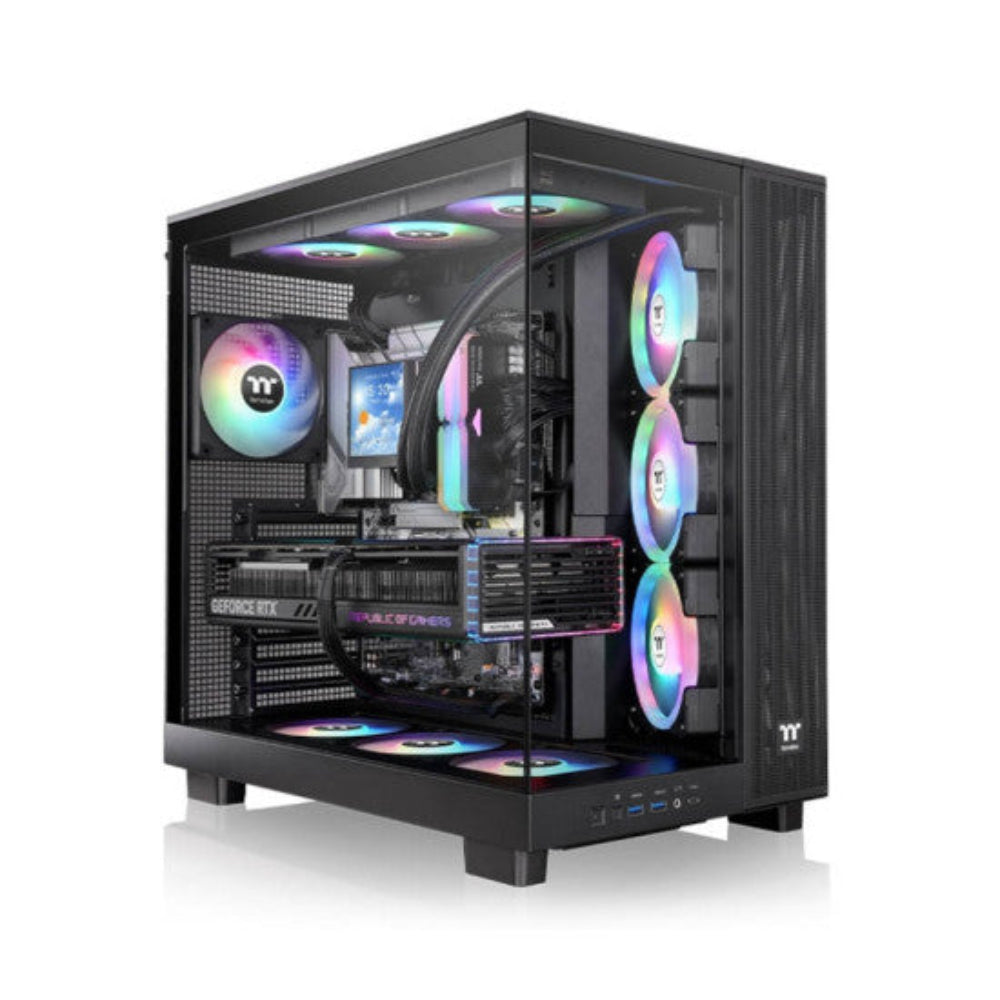

The Thermaltake View 380 XL TG ARGB is an ATX mid-tower PC case built around a dual-chamber layout that separates the main motherboard compartment from the power supply and storage area. This separation improves cable routing, promotes cleaner airflow paths, and gives builders more room to work. The chassis ships with four pre-installed Hydraulic Bearing 120mm ARGB Lite fans — three reversed-intake fans on the motherboard side and one exhaust fan at the rear — keeping the system cool while contributing to the addressable RGB lighting display visible through the dual tempered glass panels on the front and left side. A standout feature of the View 380 XL TG ARGB is its compatibility with hidden-connector motherboards from ASUS, MSI, and GIGABYTE, in addition to standard ATX, Micro-ATX, and Mini-ITX boards. This positions the case well for next-generation platform builds where rear-routed cabling is central to achieving a clean aesthetic. Cooling flexibility is a strong point. The case supports up to ten 120mm fans across the top, right, rear, and bottom positions. For liquid cooling, a 360mm, 280mm, or 240mm radiator can be mounted at the top, while a 360mm or 240mm radiator fits on the right (motherboard side). A 120mm radiator is also supported at the rear. The built-in GPU holder prevents graphics card sag — a practical touch for long, heavy GPUs up to 420mm in length. Front I/O is positioned at the bottom of the front panel and includes one USB 3.2 Gen 2 Type-C port, two USB 3.0 ports, and an HD Audio jack. Storage options cover up to three 2.5-inch SSDs or one 3.5-inch HDD alongside two 2.5-inch SSDs. Key Specifications: - Part Number: CA-11E-00M1WN-00 - Dimensions (H×W×D): 471 × 288 × 469 mm (18.54 × 11.34 × 18.46 in) - Material: SPCC steel body; 4 mm tempered glass panels ×2 - Motherboard Support: Mini-ITX, Micro-ATX, ATX - Expansion Slots: 8 - Pre-installed Fans: 3× 120mm ARGB Lite Reverse (1000 rpm, 21.9 dBA) + 1× 120mm ARGB Lite (1000 rpm, 22.3 dBA) - Max Fan Support: Up to 10× 120mm (or mixed 140mm at top) - Radiator Support: Top up to 360mm; Right (MB side) up to 360mm; Rear 120mm - CPU Cooler Clearance: 160mm - GPU Max Length: 420mm - PSU Max Length: 180mm (Standard PS2 form factor) - Drive Bays: 1× 3.5", 2× 2.5" (or 3× 2.5" total) - I/O: 1× USB 3.2 Gen 2 Type-C, 2× USB 3.0, 1× HD Audio - ARGB Control: Compatible with ASUS, GIGABYTE, MSI, ASRock motherboard software - Warranty: 3 years

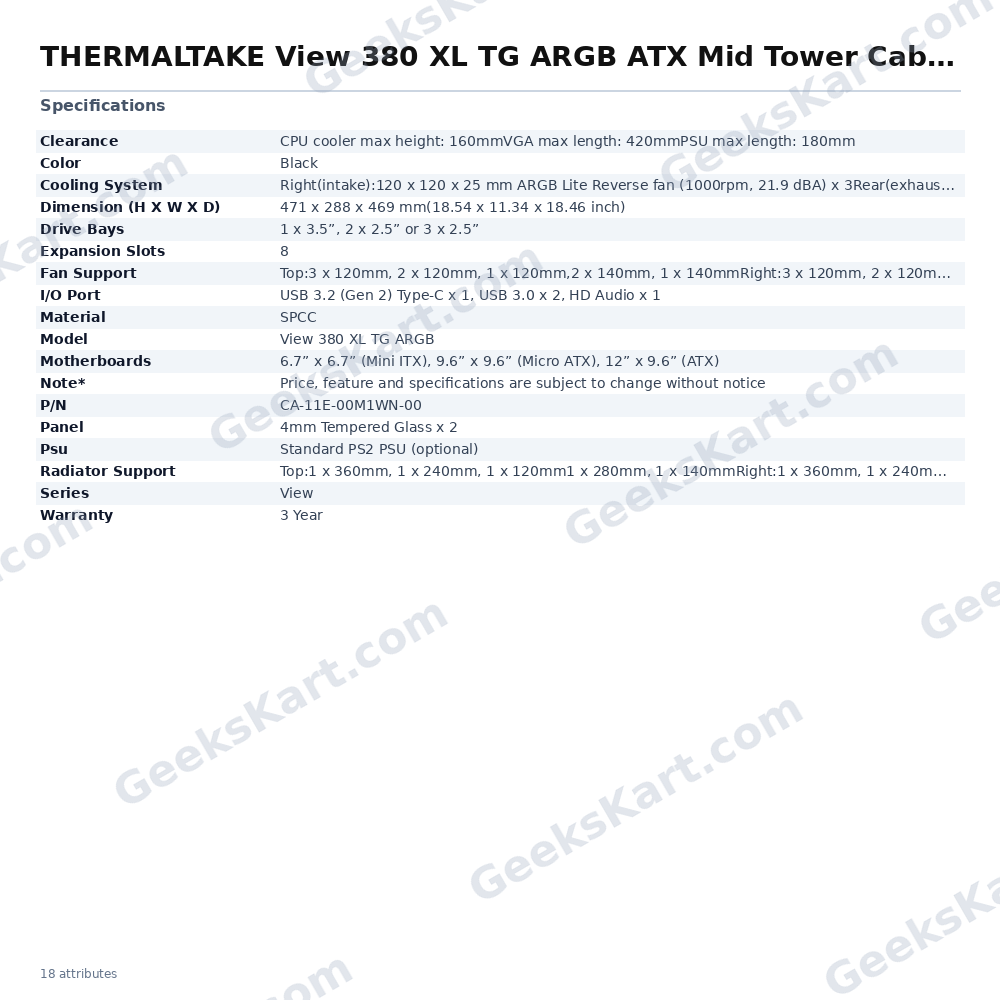

Datasheet
| Warranty | 3 Years |
|---|---|
| color | Black |
| P/N | CA-11E-00M1WN-00 |
| Psu | Standard PS2 PSU (optional) |
| Model | View 380 XL TG ARGB |
| Note* | Price, feature and specifications are subject to change without notice |
| Panel | 4mm Tempered Glass x 2 |
| Series | View |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| Material | SPCC |
| Clearance | CPU cooler max height: 160mmVGA max length: 420mmPSU max length: 180mm |
| Drive Bays | 1 x 3.5”, 2 x 2.5” or 3 x 2.5” |
| Fan Support | Top:3 x 120mm, 2 x 120mm, 1 x 120mm,2 x 140mm, 1 x 140mmRight:3 x 120mm, 2 x 120mm, 1 x 120mmRear:1 x 120mmBottom:3 x 120mm, 2 x 120mm, 1 x 120mm |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| Cooling System | Right(intake):120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 3Rear(exhaust):120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
| Expansion Slots | 8 |
| Radiator Support | Top:1 x 360mm, 1 x 240mm, 1 x 120mm1 x 280mm, 1 x 140mmRight:1 x 360mm, 1 x 240mm, 1 x 120mmRear:1 x 120mm |
| Dimension (H X W X D) | 471 x 288 x 469 mm(18.54 x 11.34 x 18.46 inch) |
