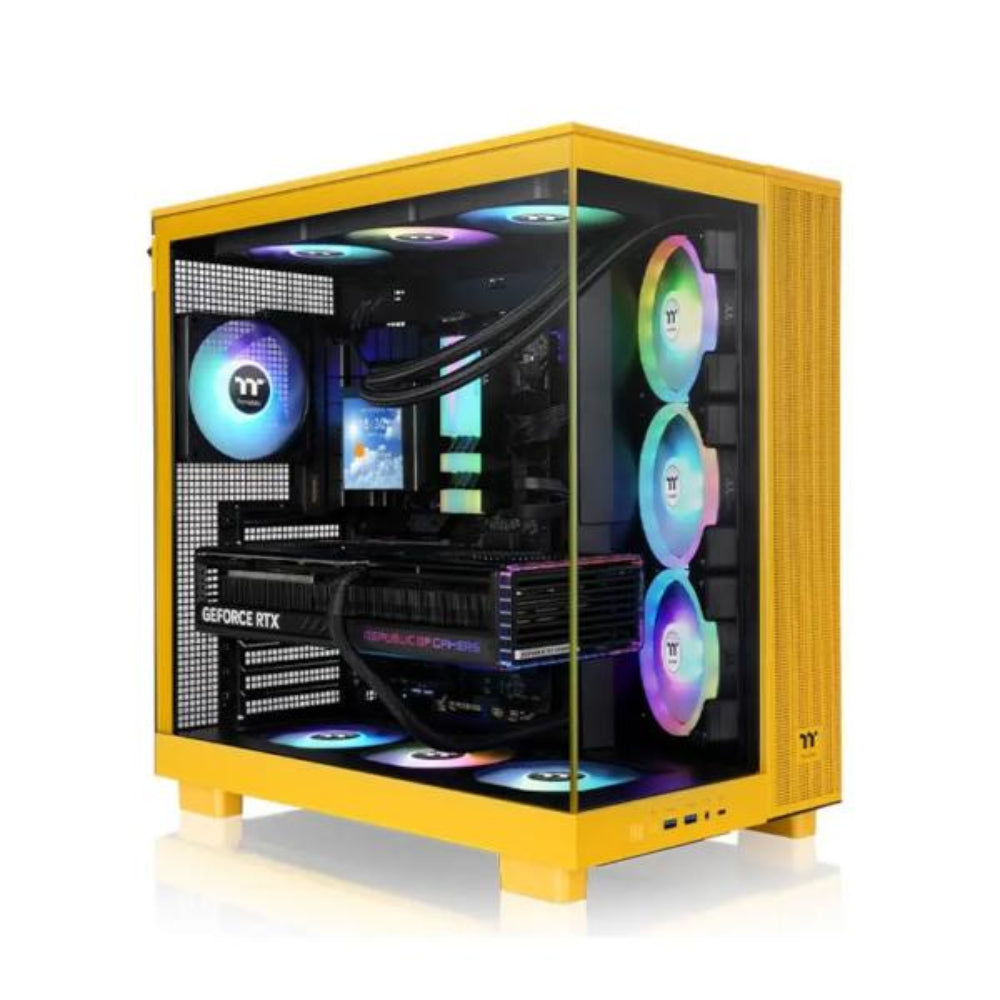

THERMALTAKE View 380 XL TG ARGB ATX Mid Tower Cabinet (Bumblebee)
MPN THERMALTAKE-VIEW-380-XL-TG-ARGB-BUMBLEBEE · Brand Thermaltake
The Thermaltake View 380 XL TG ARGB Bumblebee is a dual-chamber ATX mid-tower case with four pre-installed ARGB fans, dual 360mm radiator support, Hidden-Connector Motherboard compatibility, and dual 4mm tempered glass panels for a showcase build
Inclusive of GST · GST invoice available
Overview
The Thermaltake View 380 XL TG ARGB Bumblebee is a dual-chamber ATX mid-tower chassis designed for builders who want flexible cooling options alongside a visually striking aesthetic. Its defining feature is a dual-chamber layout that physically separates the primary build area from power supply and cable routing zones, resulting in a cleaner interior, improved airflow pathways, and easier cable management during the build process. The case arrives with four pre-installed 120mm Hydraulic Bearing ARGB Lite fans: three reversed-intake fans mounted on the right (motherboard) side and one exhaust fan at the rear. The reversed-fan orientation on the right panel allows the lighting to face outward through the 4mm tempered glass panel for maximum visual impact. Fan lighting is compatible with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light, and ASRock Polychrome Sync motherboard software ecosystems. One of the standout features is support for Hidden-Connector Motherboards from ASUS, MSI, and GIGABYTE, which route cables behind the motherboard PCB for a virtually wire-free front view. Standard ATX, Micro-ATX, and Mini-ITX boards are also fully supported. For liquid cooling enthusiasts, the View 380 XL accommodates up to a 360mm radiator at both the top and right (motherboard) side simultaneously, enabling high-end custom or all-in-one loop configurations. A built-in GPU holder is included to prevent graphics card sag on long or heavy cards. Verified Specifications: - Part Number: CA-11E-00M4WN-00 - Dimensions (H x W x D): 471 x 288 x 469 mm (18.54 x 11.34 x 18.46 in) - Motherboard Support: Mini-ITX, Micro-ATX, ATX - Panel: 4mm Tempered Glass x 2 (front and left) - Material: SPCC steel - Pre-installed Fans: 3x 120mm ARGB Lite Reverse (intake, right) @ 1000 rpm / 21.9 dBA; 1x 120mm ARGB Lite (exhaust, rear) @ 1000 rpm / 22.3 dBA - Total Fan Support: Up to 10x 120mm across top, right, rear, and bottom; top also accepts 140mm - Radiator Support: Up to 360mm (top), up to 360mm (right), up to 120mm (rear) - CPU Cooler Clearance: 160mm - GPU Max Length: 420mm - PSU Max Length: 180mm (Standard PS2, optional) - Drive Bays: 1x 3.5-inch HDD, up to 3x 2.5-inch SSD - Expansion Slots: 8 - Front I/O: 1x USB 3.2 Gen 2 Type-C, 2x USB 3.0, 1x HD Audio - Warranty: 3 Years

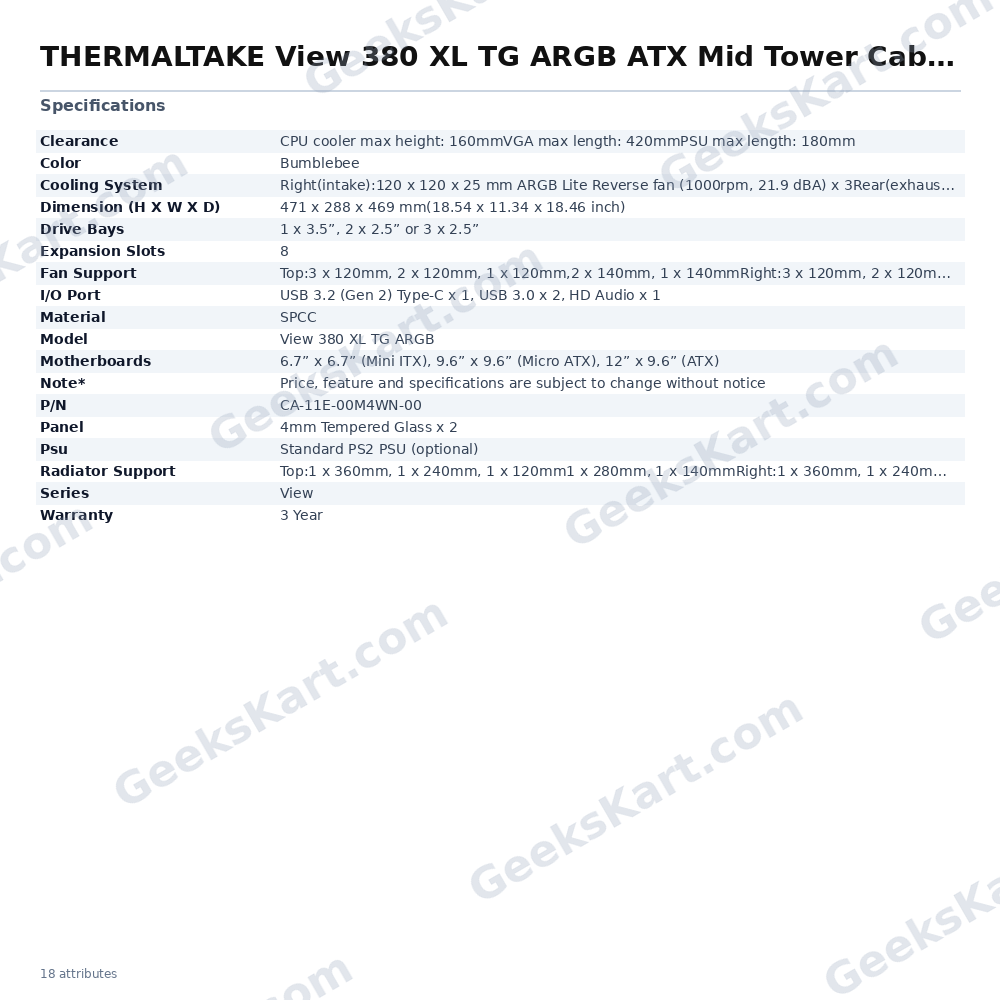

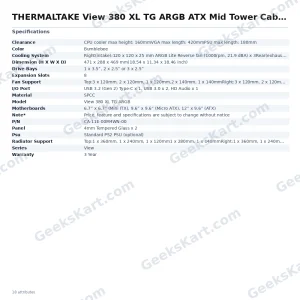

Datasheet
| Warranty | 3 Years |
|---|---|
| P/N | CA-11E-00M4WN-00 |
| Psu | Standard PS2 PSU (optional) |
| Model | View 380 XL TG ARGB |
| Note* | Price, feature and specifications are subject to change without notice |
| Panel | 4mm Tempered Glass x 2 |
| Series | View |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| Material | SPCC |
| Clearance | CPU cooler max height: 160mmVGA max length: 420mmPSU max length: 180mm |
| Drive Bays | 1 x 3.5”, 2 x 2.5” or 3 x 2.5” |
| Fan Support | Top:3 x 120mm, 2 x 120mm, 1 x 120mm,2 x 140mm, 1 x 140mmRight:3 x 120mm, 2 x 120mm, 1 x 120mmRear:1 x 120mmBottom:3 x 120mm, 2 x 120mm, 1 x 120mm |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| Cooling System | Right(intake):120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 3Rear(exhaust):120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
| Expansion Slots | 8 |
| Radiator Support | Top:1 x 360mm, 1 x 240mm, 1 x 120mm1 x 280mm, 1 x 140mmRight:1 x 360mm, 1 x 240mm, 1 x 120mmRear:1 x 120mm |
| Dimension (H X W X D) | 471 x 288 x 469 mm(18.54 x 11.34 x 18.46 inch) |
| Color | Bumblebee |
