THERMALTAKE View 390 Air ARGB ATX Mid Tower Cabinet ( Snow White )
MPN THERMALTAKE-VIEW-390-AIR-ARGB-SNOW-WHITE · Brand Thermaltake · ATX, mATX, Mini-ITX
The Thermaltake View 390 Air ARGB ATX Mid Tower Cabinet in Snow White features a 4mm seamless curved tempered glass panel, dual-chamber design, support for up to 360mm radiators, and two pre-installed CT120 fans — ideal for high-airflow ATX builds
Inclusive of GST · GST invoice available
Overview

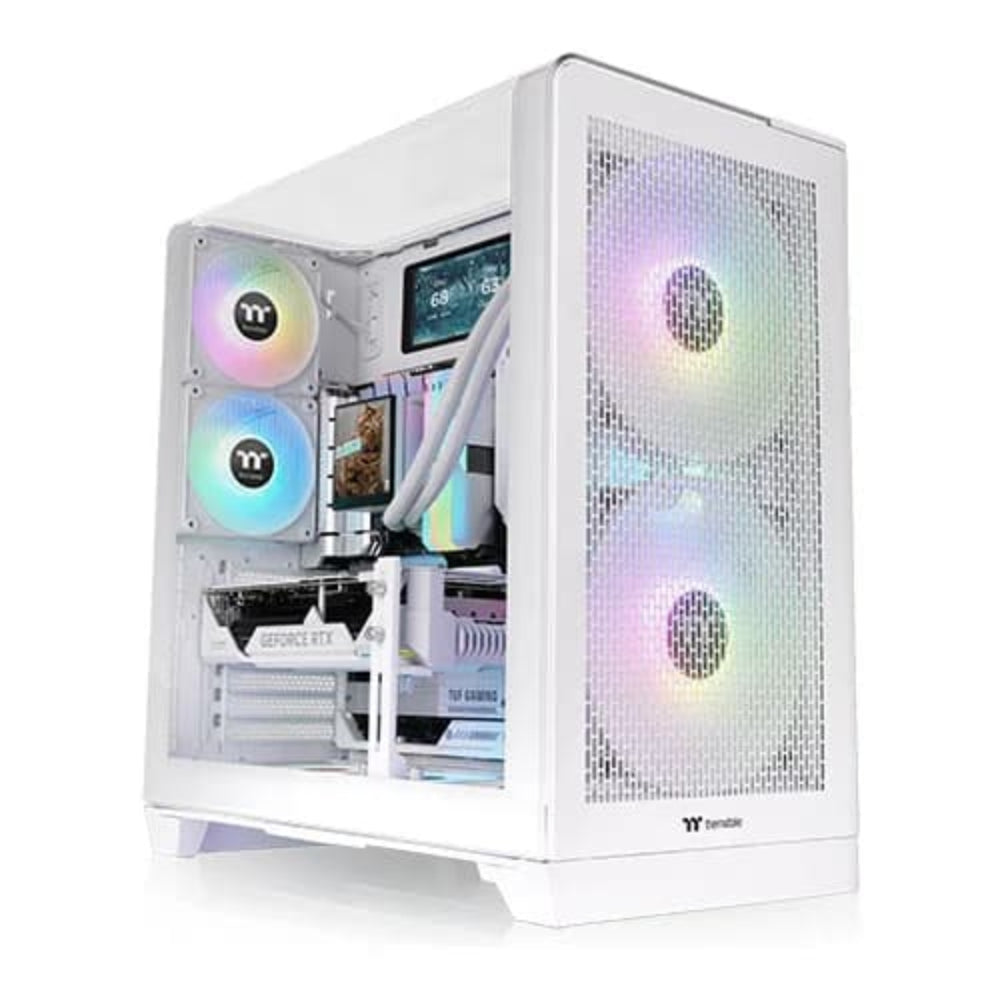

The Thermaltake View 390 Air ARGB ATX Mid Tower Cabinet in Snow White is a dual-chamber chassis built for enthusiast PC builders who want both visual impact and serious thermal performance. Its defining feature is a seamless 4mm one-piece curved tempered glass panel that flows from the top of the case all the way down the left side, creating a wide panoramic window into your build. Combined with a perforated mesh front panel, the design prioritises unobstructed airflow without sacrificing aesthetics. Cooling capacity is a clear strength. The front panel accommodates up to three 120mm fans, two 140mm fans, or two 200mm fans, and supports radiators up to 360mm or 280mm. The motherboard side panel can house an additional 360mm radiator or up to three 120mm fans, while the bottom accepts three more 120mm fans. Two Thermaltake CT120 fans come pre-installed at the rear to immediately begin exhausting heat from day one. In total, the chassis supports up to 11 fans simultaneously. The View 390 Air is designed to accommodate modern hidden-connector motherboards — including ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth series — via dedicated cutouts on the motherboard tray. Standard ATX (up to 12" x 9.6"), Micro-ATX, and Mini-ITX boards are all supported. Seven expansion slots are available, and the PCIe slots are rotatable by 90 degrees to allow vertical GPU installation via a riser cable bracket. A pre-installed GPU holder addresses the common problem of GPU sag, particularly relevant when running long or heavy graphics cards. The maximum supported GPU length is 390mm when a radiator is installed, or 420mm without one. Storage options behind the motherboard tray include up to four 2.5" SSDs, or a combination of one 2.5" SSD plus two 3.5" HDDs. Cable management is aided by multiple anchor points and included Velcro straps and cable ties. The top-mounted I/O panel includes a power button with integrated blue LED, reset button, two USB 3.0 Type-A ports, one USB 3.2 Gen 2 Type-C port, and HD Audio in/out. Removable dust filters are positioned at the front and bottom to reduce particulate buildup. The case is constructed from SPCC steel and carries a 3-year warranty. Verifiable Specifications: - Model: CA-11F-00M6WN-00 - Form Factor: ATX Mid Tower - Supported Motherboards: ATX, Micro-ATX, Mini-ITX - Max CPU Cooler Height: 160mm - Max GPU Length: 390mm (with radiator) / 420mm (without radiator) - Max PSU Length: 200mm (with 2.5" SSD) / 260mm (without 2.5" SSD) - Pre-installed Fans: 2 x CT120 (rear exhaust) - CT120 Fan Speed: 500–2000 RPM | Airflow: 57.05 CFM | Noise: 25.8 dBA | Bearing: Hydraulic - Max Fan Support: 11 - Radiator Support: Front 360/280mm; Motherboard Side 360mm - Storage: Up to 4 x 2.5" SSD or 1 x 2.5" SSD + 2 x 3.5" HDD - Expansion Slots: 7 - Front I/O: 2x USB 3.0 Type-A, 1x USB 3.2 Gen 2 Type-C, HD Audio - Material: SPCC steel - Colour: Snow White - Dust Filters: Front, Bottom - Warranty: 3 Years

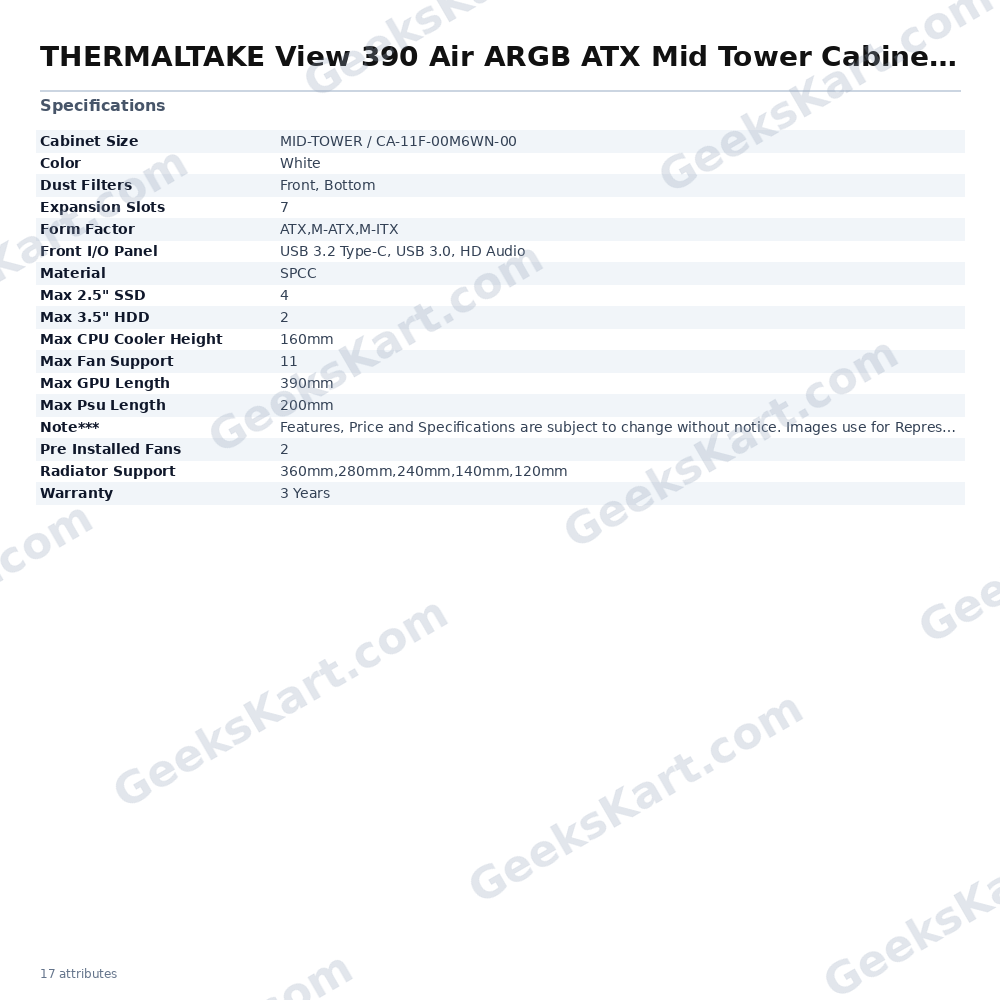

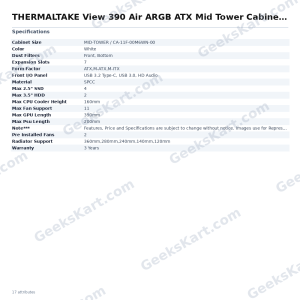

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX, mATX, Mini-ITX |
| color | White |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Material | SPCC |
| Cabinet Size | MID-TOWER / CA-11F-00M6WN-00 |
| Dust Filters | Front, Bottom |
| Max 2.5" SSD | 4 |
| Max 3.5" HDD | 2 |
| Max GPU Length | 390mm |
| Max Psu Length | 200mm |
| Expansion Slots | 7 |
| Front I/O Panel | USB 3.2 Type-C, USB 3.0, HD Audio |
| Max Fan Support | 11 |
| Radiator Support | 360mm,280mm,240mm,140mm,120mm |
| Pre Installed Fans | 2 |
| Max CPU Cooler Height | 160mm |
