Features of TOSHIBA MG08 Series 16TB 7200 RPM 3.5 Inch SATA Enterprise Hard Drive
Toshiba MG08 Series Hard Disk Drives offering 16TB capacity and 7200 rpm performance and industry-standard 3.5-inch form-factor. It is delivered using proven CMR recording technology providing optimum application compatibility and data reliability.
- Industry Standard 3.5-inch 26.1 mm Height Form Factor
- Conventional Magnetic Recording (CMR) 16 TB for broad compatibility
- Industry-leading 9-disk helium-sealed design for superior storage density
- 7200 rpm Performance
- 550 Total TB Transferred per Year Workload Rating
- 512e or 4Kn Advanced Format Sector Technology; (512e Model) Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
- Sanitize Instant Erase (SIE) and Self-Encrypting Drive(SED) option model
Using an industry-leading 9-disk design pioneered by Toshiba, the MG08 Series provides 16 TB of conventional magnetic recording (CMR) capacity and 7200 rpm performance. The industry-standard 3.5-inch form-factor integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions. Toshiba’s precision industrial laser welding technology is put to use to seal helium inside the 9-disk mechanics. The massive 16 TB capacity is delivered using proven CMR recording technology providing optimum application compatibility and data reliability. Available with either a SATA 6.0 Gbit/s
or a 12.0 Gbit/s SAS interface [4], the MG08 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, and business critical servers and storage systems
APPLICATIONS:
- Cloud-scale Sever and Storage Infrastructure
- Software-defined data center infrastructure
- File- and Object-based storage infrastructure
- Tiered Storage Infrastructure
- Workloads and Use-Cases that Benefit from High Capacity per Spindle
- Capacity-Optimized Cloud-scale and Rack-Scale Storage Systems
- Compliance Data Life-Cycle Management
- Data Center Data-Protection and Data Back-up Infrastructure

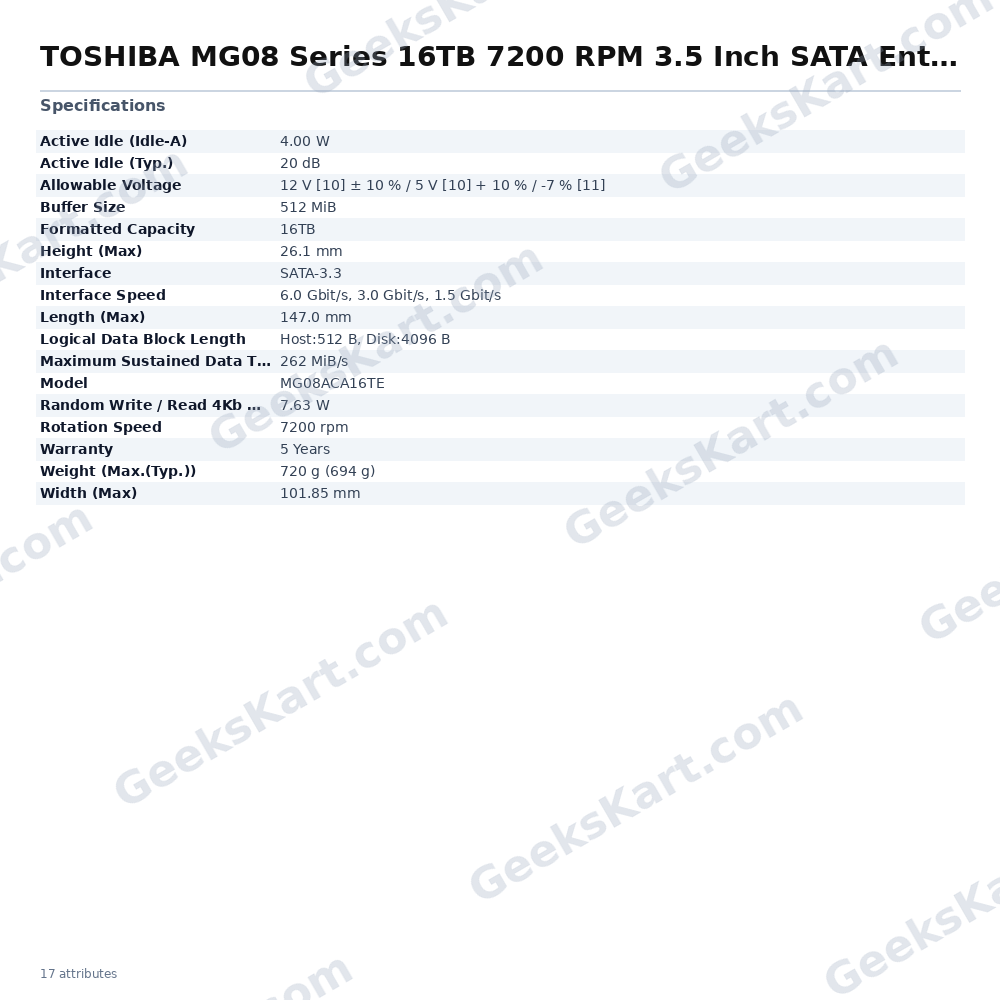

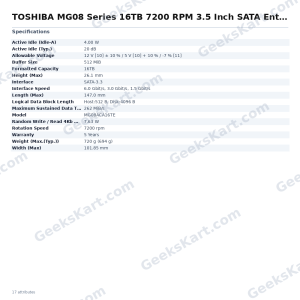

Specification of TOSHIBA MG08 Series 16TB 7200 RPM 3.5 Inch SATA Enterprise Hard Drive
| Model | MG08ACA16TE |
| Interface | SATA-3.3 |
| Formatted Capacity | 16TB |
| Interface Speed | 6.0 Gbit/s, 3.0 Gbit/s, 1.5 Gbit/s |
| Rotation Speed | 7200 rpm |
| Buffer Size | 512 MiB |
| Maximum Sustained Data Transfer Speed (Typ.) | 262 MiB/s |
| Logical Data Block Length | Host:512 B, Disk:4096 B |
| Allowable Voltage | 12 V [10] ± 10 % / 5 V [10] + 10 % / -7 % [11] |
| Random Write / Read 4KB Q1 (Typ.) | 7.63 W |
| Active Idle (Idle-A) | 4.00 W |
| Active Idle (Typ.) | 20 dB |
| Width (Max) | 101.85 mm |
| Height (Max) | 26.1 mm |
| Length (Max) | 147.0 mm |
| Weight (Max.(Typ.)) | 720 g (694 g) |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
