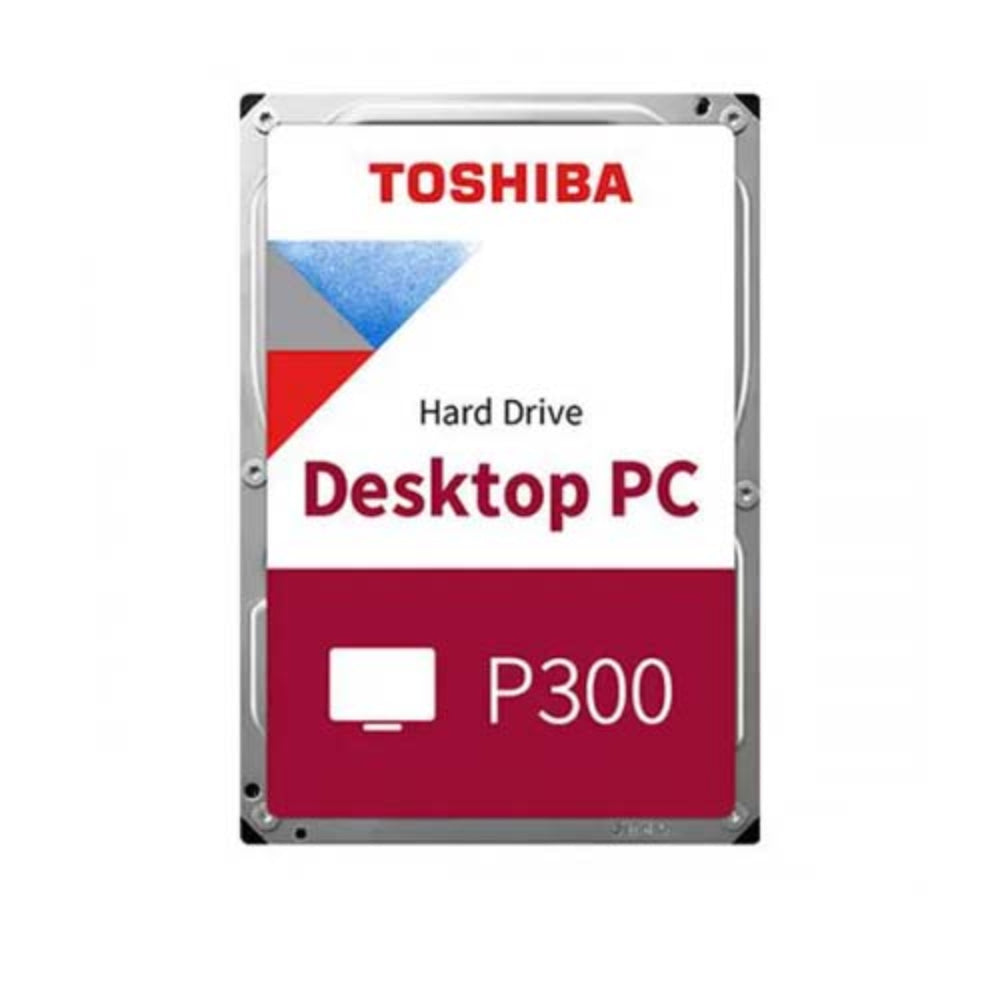

TOSHIBA P300 2TB 7200RPM Desktop HDD
MPN TOSHIBA-P300-2TB-7200RPM-HDD · Brand Toshiba · 3.5"
The Toshiba P300 2TB (HDWD320UZSVA) is a 3.5-inch SATA desktop hard drive spinning at 7,200 RPM with a 256 MB cache, suited for desktop PCs, workstations, and all-in-one systems
Inclusive of GST · GST invoice available
Overview
The Toshiba P300 2TB Desktop Hard Drive (model HDWD320UZSVA) is a 3.5-inch internal hard drive engineered for everyday home and office desktop computing. Running at 7,200 RPM with a generous 256 MB buffer, it delivers responsive data access suitable for desktop workstations, all-in-one PCs, standard desktop systems, and external enclosures. The drive connects via a SATA 6.0 Gbit/s interface and supports Native Command Queuing (NCQ), allowing the drive to reorder read and write requests for improved throughput during multitasking workloads. A two-stage actuator contributes to precise head positioning, while a loading ramp mechanism parks the read/write heads away from the platters when not in use, reducing the risk of data loss from minor physical disturbances. For added resilience, the P300 integrates a built-in shock sensor and is rated for up to 600,000 load/unload cycles. The average rotational latency is 4.17 ms, and the unrecoverable read error rate is specified at 1 in 10^14 bits read—a standard desktop-class reliability figure. Acoustics are kept at a typical 25 dB in idle mode, making the drive unobtrusive in quiet environments. The drive carries RoHS compatibility and is halogen-free, reflecting Toshiba's compliance with common environmental regulations. It uses Shingled Magnetic Recording (SMR) technology and Advanced Format (AF) 4K sector alignment. Verified Specifications: - Model: HDWD320UZSVA - Capacity: 2TB - Form Factor: 3.5-inch - Interface: SATA 6.0 Gbit/s - Rotational Speed: 7,200 RPM - Buffer Size: 256 MB - Average Latency: 4.17 ms - Recording Technology: SMR - Unrecoverable Error Rate: 1 per 10^14 - Load/Unload Cycles: 600,000 - Operating Power: 5.21 W (typical) - Idle Power: 2.92 W (typical) - Operating Temperature: 0 to 60 °C - Acoustics (idle): 25 dB typical - Dimensions: 147 mm (L) × 101.85 mm (W) × 26.1 mm (H) - Warranty: 2 Years Limited

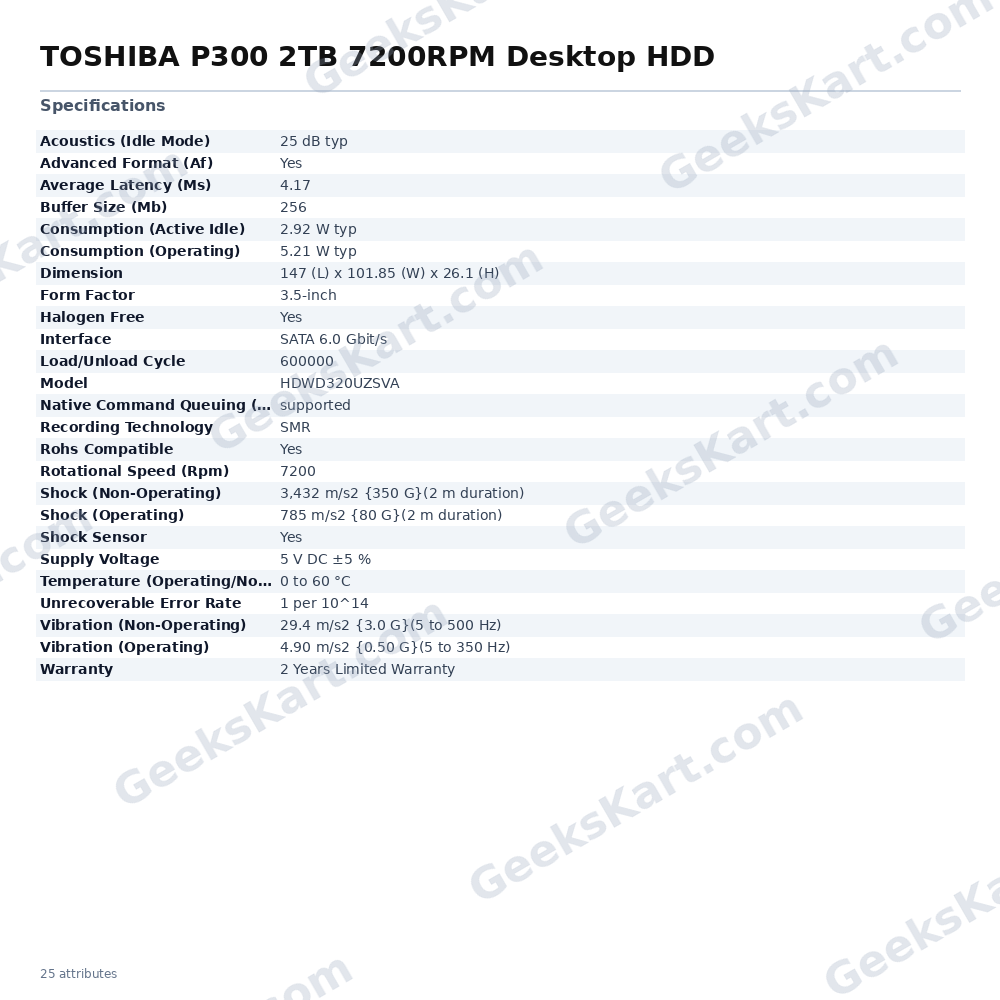

Datasheet
| Warranty | 2 Years |
|---|---|
| Form Factor | 3.5" |
| Interface | SATA 6.0 Gbit/s |
| Model | HDWD320UZSVA |
| Dimension | 147 (L) x 101.85 (W) x 26.1 (H) |
| Halogen Free | Yes |
| Shock Sensor | Yes |
| Supply Voltage | 5 V DC ±5 % |
| Rohs Compatible | Yes |
| Buffer Size (Mb) | 256 |
| Load/Unload Cycle | 600000 |
| Shock (Operating) | 785 m/s2 {80 G}(2 m duration) |
| Advanced Format (Af) | Yes |
| Average Latency (Ms) | 4.17 |
| Recording Technology | SMR |
| Acoustics (Idle Mode) | 25 dB typ |
| Shock (Non-Operating) | 3,432 m/s2 {350 G}(2 m duration) |
| Vibration (Operating) | 4.90 m/s2 {0.50 G}(5 to 350 Hz) |
| Rotational Speed (Rpm) | 7200 |
| Consumption (Operating) | 5.21 W typ |
| Unrecoverable Error Rate | 1 per 10^14 |
| Consumption (Active Idle) | 2.92 W typ |
| Vibration (Non-Operating) | 29.4 m/s2 {3.0 G}(5 to 500 Hz) |
| Native Command Queuing (Ncq) | supported |
| Temperature (Operating/Non-Operating) | 0 to 60 °C |
