Feature of VIEWSONIC TD2223 22 Inch FHD 75Hz VA Panel 104% SRGB 6.5MS VA Gaming Monitor
- Intuitive 10-point touchscreen
- Finger, stylus, and glove touch compatible
- Magnetic pen placeholder
- Adjustable back tilt up to 40-degrees
- Scratch-resistant 7H hardness screen

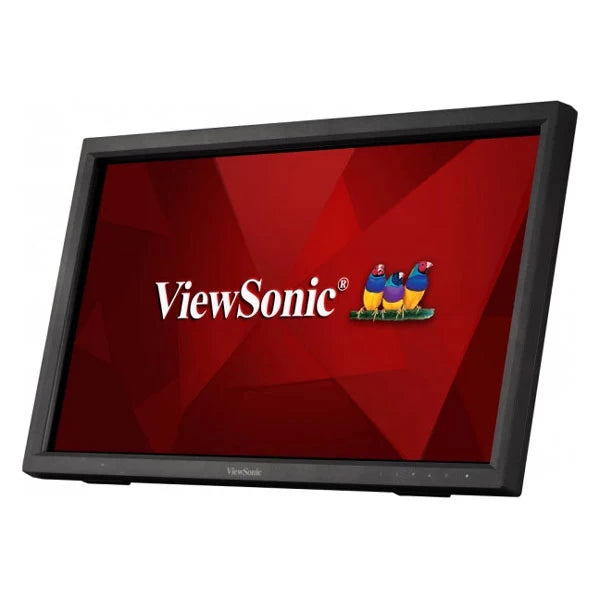

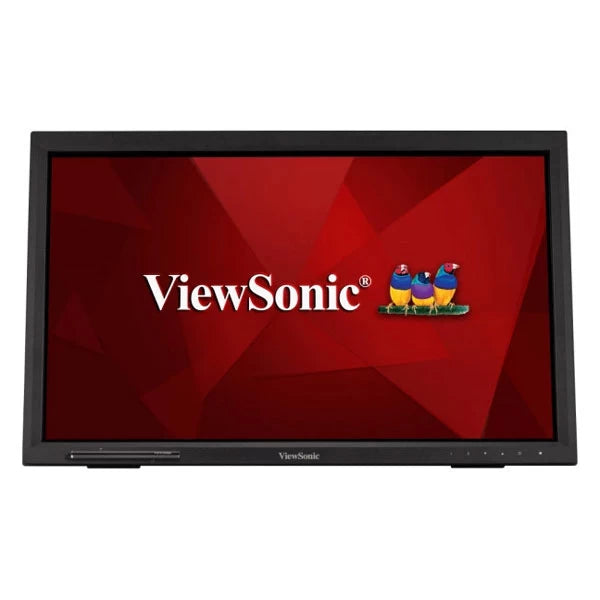

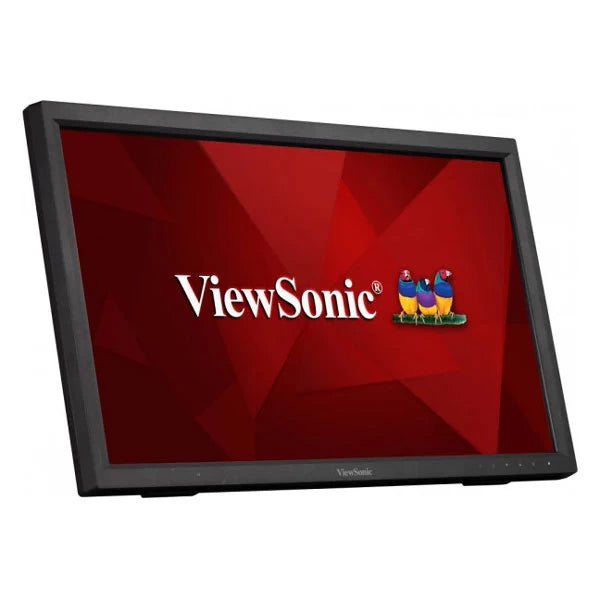

The ViewSonic TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. Get the best computer Screen experience for gaming. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This computer Monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.
Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.
Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
Simple and Safer Way to Interact
This Viewsonic Monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.
Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

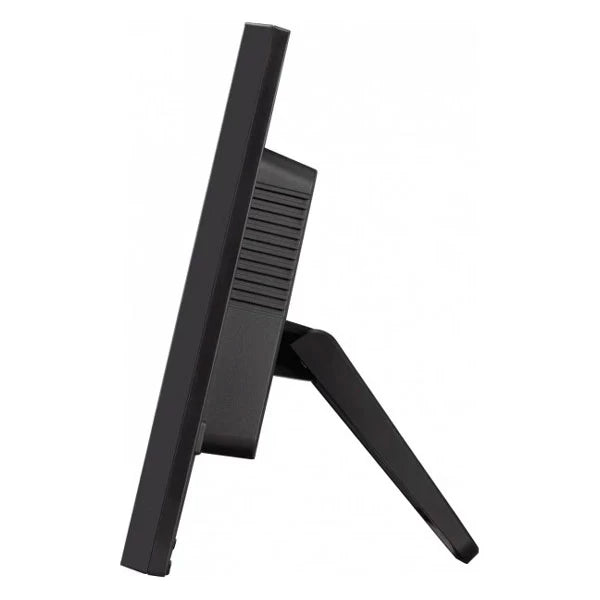

Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Clear Images
This monitor features Full HD 1920×1080 resolution to benefit you with greater image details and more displayable screen contents.
Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.
Specifications of VIEWSONIC TD2223 22 Inch FHD 75Hz VA Panel 104% SRGB 6.5MS VA Gaming Monitor
| Model | TD2223 |
| Display | |
| Display Size | 22 |
| Viewable Area | 21.5 |
| Panel Type | TN Technology |
| Resolution | 1920 x 1080 |
| Resolution Type | FHD (Full HD) |
| Static Contrast Ratio | 1,000:1 |
| Dynamic Contrast Ratio | 20M:1 |
| Light Source | LED |
| Brightness | 250 cd/m² |
| Colors | 16.7M |
| Color Space Support |
8 bit (6 bit + Hi-FRC)
|
| Aspect Ratio | 16:9 |
| Response Time (Typical GTG) | 5ms |
| Response Time (GTG w/OD) | 5ms |
| Response Time (Typical Tr+Tf) | 5ms |
| Viewing Angles |
170º horizontal, 160º vertical
|
| Backlight Life (Hours) | 30000 Hrs (Min) |
| Curvature | Flat |
| Refresh Rate (Hz) | 75 |
| Blue Light Filter | Yes |
| Flicker-Free | Yes |
| Color Gamut |
NTSC: 72% size (Typ)
|
| sRGB | 103% size (Typ) |
| Pixel Size |
0.248 mm (H) x 0.248 mm (V)
|
| Touch Screen |
IR, 10-point multi-touch
|
| Surface Treatment |
Glossy, Hard Coating (7H)
|
| Cover Glass Thickness | 2mm |
| Compatibility | |
| PC Resolution (max) | 1920×1080 |
| Mac Resolution (max) | 1920×1080 |
| PC Operating System |
Windows 7/8.1/10/11 certified; macOS tested
|
| Mac Resolution (min) | 1920×1080 |
| Connector | |
| VGA | 1 |
| USB 2.0 Type A | 2 |
| USB 2.0 Type B | 1 |
| 3.5mm Audio In | 1 |
| 3.5mm Audio Out | 1 |
| HDMI 1.4 | 1 |
| DVI-D | 1 |
| Power in |
3-pin Socket (IEC C14 / CEE22)
|
| Audio | |
| Internal Speakers | 2Watts x2 |
| Power | |
| Eco Mode (Conserve) | 8.5W |
| Eco Mode (optimized) | 10.5W |
| Consumption (typical) | 12.5W |
| Consumption (max) | 14W |
| Voltage | AC 100-240V |
| Stand-by | 0.5W |
| Power Supply |
Internal Power Supply
|
| Additional Hardware | |
| Kensington Lock Slot | 1 |
| Cable Organization | Yes |
| Controls | |
| Physical Controls |
1, 2, Up, Down, Power
|
| On Screen Display | Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall |
| Operating Conditions | |
| Temperature |
32°F to 104°F (0°C to 40°C)
|
| Humidity (non-condensing) | 20% to 90% |
| Wall Mount | |
| VESA Compatible | 100 x 100 mm |
| Input Signal | |
| Frequency Horizontal | 24 ~ 82KHz |
| Frequency Vertical | 50 ~ 75Hz |
| Video Input | |
| Digital Sync |
TMDS – DVI-D, TMDS – HDMI (v1.4)
|
| Analog Sync | Separate/Composite/SOG – RGB Analog |
| Ergonomics | |
| Tilt (Forward/Back) | 20º / 40º |
| Weight (imperial) | |
| Net (lbs) | 9.9 |
| Net Without Stand (lbs) | 8.6 |
| Gross (lbs) | 13.2 |
| Weight (metric) | |
| Net (kg) | 4.5 |
| Net Without Stand (kg) | 3.9 |
| Gross (kg) | 6 |
| Dimensions (imperial) (wxhxd) | |
| Packaging (in.) |
22.8 x 15.9 x 6.5
|
| Physical (in.) | 20.5 x 13.1 x 4 |
| Physical Without Stand (in.) |
20.5 x 12.5 x 2.4
|
| Dimensions (metric) (wxhxd) | |
| Packaging (mm) | 580 x 405 x 164 |
| Physical (mm) | 521 x 334 x 101 |
| Physical Without Stand (mm) | 521 x 318 x 61 |
| Warranty | 3 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice.
|
