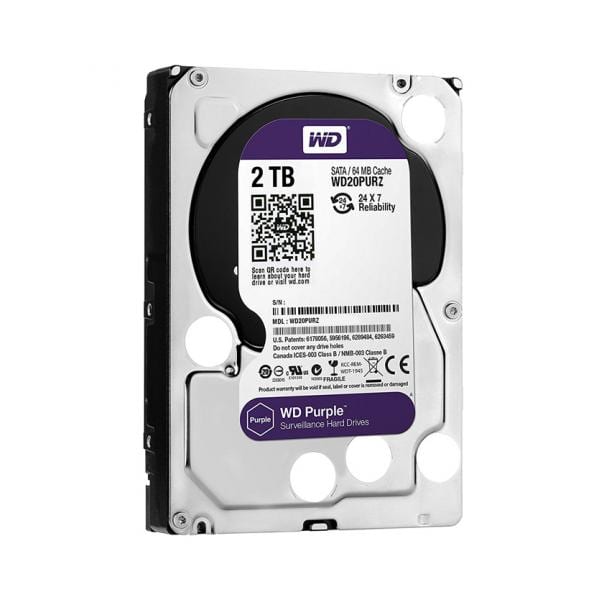

Features of WESTERN DIGITAL Purple 2TB 5400 RPM Desktop HDD
WESTERN DIGITAL Purple drives are engineered specifically for surveillance to help withstand the elevated heat fluctuations and equipment vibrations within NVR environments. An average desktop drive is built to run for only short intervals, not the harsh 24/7 always-on environment of a high-definition surveillance system. With WD Purple, you get reliable, surveillance-class storage that’s tested for compatibility in a wide range of security systems, and some of our latest models (WD22PURZ, WD42PURZ, and WD63PURZ) have improved power efficiency. Exclusive AllFrame™ technology helps reduce frame loss and improve overall video playback.
All WD Purple™ drives are equipped with AllFrame™ technology, which improves ATA streaming to help reduce frame loss and improve overall video playback, within a multitude of security video solutions.
WD Purple™ hard drives are built with compatibility in mind, so you can quickly and seamlessly add capacity to your surveillance system. With a wide range of industry-leading enclosures and chipsets supported, you’re sure to find the DVR or NVR configuration that’s right for you.
- Industry-leading storage. Surveillance you can trust.
- WD’s exclusive AllFrame 4K technology
- Enhanced workload rating
- Expand your view to 64
Specifications of WESTERN DIGITAL Purple 2TB 5400 RPM Desktop HDD
| Specifications | 2TB |
| Model number | WD20PURZ |
| Formatted capacity | 2TB |
| Form factor | 3.5-inch |
| Advanced Format (AF) | Yes |
| RoHS compliant | Yes |
| Cameras supported | Up to 64 |
| Maximum drive bays supported | 8 |
| Tarnish resistant components | No |
| Buffer to host | 6 Gb/s |
| Host to/from drive (sustained) | 110 MB/s |
| Cache (MB) | 64 |
| Performance Class | 5400 RPM Class |
| Load/unload cycles | 300,000 |
| Annualized workload rating | 180TB/yr |
| Non-recoverable read errors per bits read | 1 in 1014 |
| Read/Write | 3.3 |
| Idle | 2.9 |
| Standby and Sleep | 0.4 |
| Operating | 0 to 65 |
| Non-operating | -40 to 70 |
| Operating (2 ms, read/write) | 30 |
| Operating (2 ms, read) | 65 |
| Non-operating (2 ms) | 350 |
| Idle | 21 |
| Seek (average) | 22 |
| Height (in./mm, max) | 1.028/26.1 |
| Length (in./mm, max) | 5.787/147 |
| Width (in./mm, ±.01 in.) | 4/101.6 |
| Weight (lb/kg, ± 10%) | 0.99/0.45 |
| Warranty | 3 Years |
| Note | ***Features, Price and specifications are subject to change without notice. |
