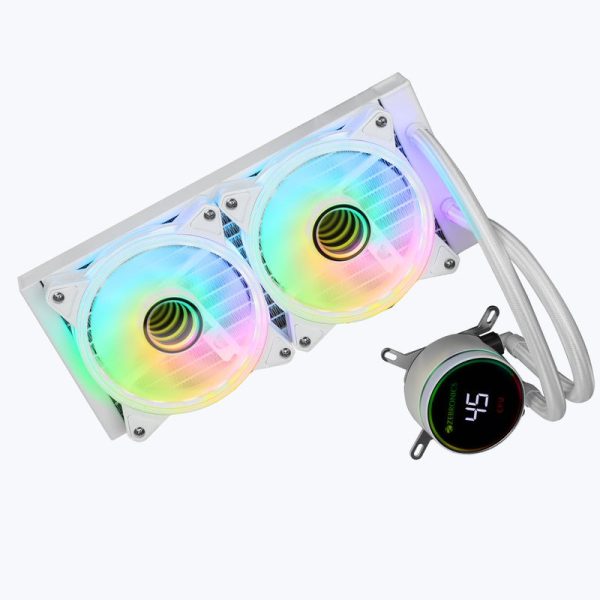

ZEBRONICS ZEB AIO240TW ARGB 240mm CPU Liquid Cooler ( With LCD Display ) ( White )
MPN ZEBRONICS-ZEB-AIO-240TW-ARGB-LIQUID-COOLER-4f1e47 · Brand Zebronics · 240mm
The Zebronics ZEB AIO240TW is a 240mm ARGB all-in-one CPU liquid cooler featuring an LCD display on the pump head, dual 120mm fans delivering 67.96 CFM, and broad compatibility with Intel LGA 115X–1700/2011/2066 and AMD AM4/AM5 platforms
Inclusive of GST · GST invoice available
Overview
The Zebronics ZEB AIO240TW is a 240mm all-in-one CPU liquid cooler designed for builders who want effective thermal management alongside a clean white aesthetic. At its core, the cooler features an aluminium radiator measuring 28 × 12 × 2.7 cm, paired with two 120mm fans (each 12 × 12 × 2.5 cm) that spin up to 1,800 RPM and move up to 67.96 CFM of airflow. Fan noise ranges from 15 to 35 dB depending on load, keeping the system audibly quiet during light workloads. The pump block integrates an LCD display panel, adding real-time system information visibility directly on the cooler head. The pump runs at up to 2,500 RPM with a noise level of 30 dB and draws 3.6 W, while the fans draw 2.16 W at the rated 12 V / 0.3 A. Both fans and pump carry an MTBF rating of 30,000 hours. Connectivity is handled via 4-pin fan power connectors and 3-pin ARGB LED headers, with a 4-pin USB header on the pump for software control through the included Windows application. The ARGB CPU block and fans support addressable RGB sync across compatible motherboards. A 35 cm braided rubber tube (1.2 cm diameter) connects the pump block to the aluminium radiator, providing flexibility during installation. The cooler supports a broad range of platforms: Intel LGA 115X, 1200, 1366, 1700, 2011, and 2066 sockets, plus AMD FM1/FM2/FM2+/FM3, AM2/AM2+/AM3/AM3+/AM4, and AM5 sockets. Total system weight is 1.2 kg. The package includes the AIO unit, AMD bracket, Intel backplate, five screw sets, thermal paste with spreader, and a QR code setup guide. Key Specifications: Radiator size: 240mm | Fans: 2 × 120mm, up to 1,800 RPM, 67.96 CFM, 15–35 dB | Pump: up to 2,500 RPM, 30 dB, 3.6 W | Fan power: 12 V / 0.3 A, 2.16 W | MTBF (fans & pump): 30,000 hours | Tube: braided rubber, 35 cm, 1.2 cm diameter | Radiator material: aluminium | Radiator dimensions: 28 × 12 × 2.7 cm | Pump dimensions: 8.5 × 7.3 × 5.1 cm | Fan connector: 4-pin | ARGB connector: 3-pin | Pump USB: 4-pin | Weight: 1.2 kg | Color: White | Country of origin: China

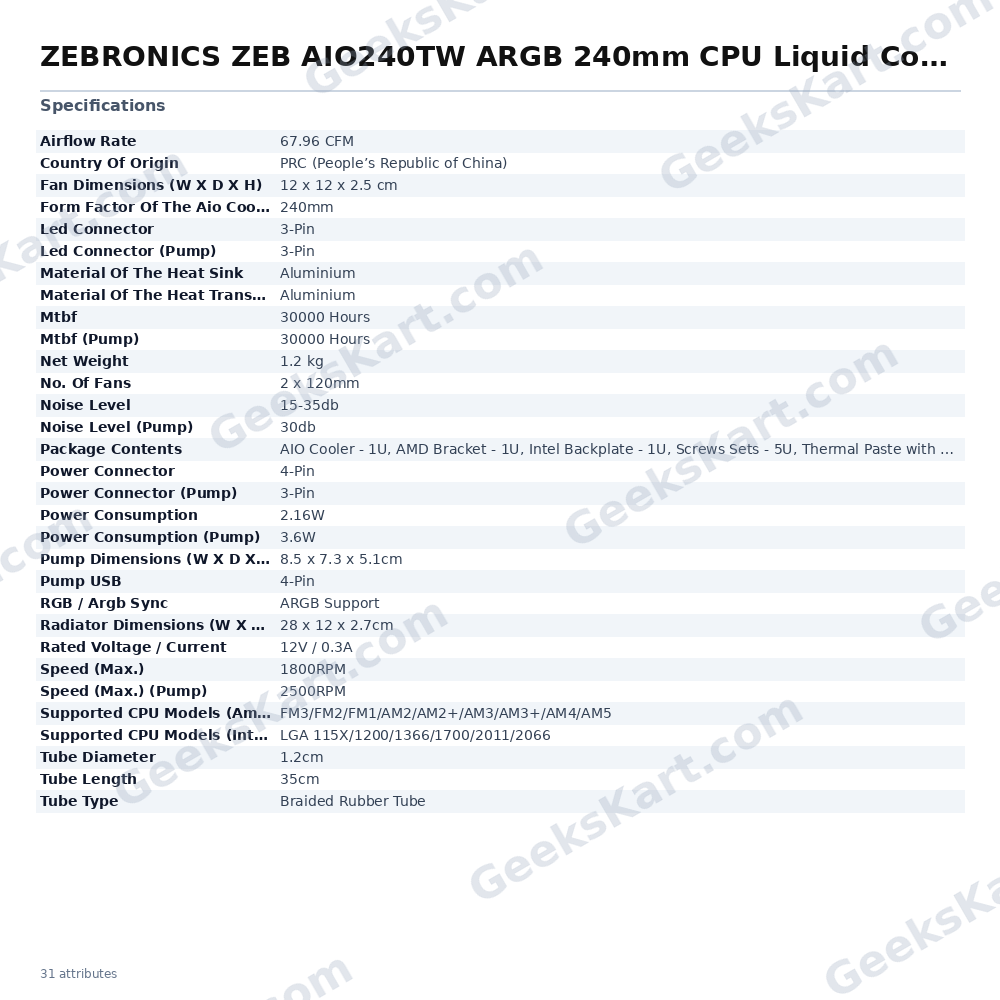

Datasheet
| Power Consumption | 2.16W |
|---|---|
| Mtbf | 30000 Hours |
| Pump USB | 4-Pin |
| Tube Type | Braided Rubber Tube |
| Net Weight | 1.2 kg |
| Mtbf (Pump) | 30000 Hours |
| No. Of Fans | 2 x 120mm |
| Noise Level | 15-35db |
| Tube Length | 35cm |
| Airflow Rate | 67.96 CFM |
| Speed (Max.) | 1800RPM |
| Led Connector | 3-Pin |
| Tube Diameter | 1.2cm |
| Power Connector | 4-Pin |
| RGB / Argb Sync | ARGB Support |
| Package Contents | AIO Cooler – 1U, AMD Bracket – 1U, Intel Backplate – 1U, Screws Sets – 5U, Thermal Paste with Spreader – 1U, QR Code Guide – 1U |
| Country Of Origin | PRC (People’s Republic of China) |
| Noise Level (Pump) | 30db |
| Speed (Max.) (Pump) | 2500RPM |
| Led Connector (Pump) | 3-Pin |
| Power Connector (Pump) | 3-Pin |
| Rated Voltage / Current | 12V / 0.3A |
| Power Consumption (Pump) | 3.6W |
| Material Of The Heat Sink | Aluminium |
| Fan Dimensions (W X D X H) | 12 x 12 x 2.5 cm |
| Supported CPU Models (Amd) | FM3/FM2/FM1/AM2/AM2+/AM3/AM3+/AM4/AM5 |
| Pump Dimensions (W X D X H) | 8.5 x 7.3 x 5.1cm |
| Supported CPU Models (Intel) | LGA 115X/1200/1366/1700/2011/2066 |
| Form Factor Of The Aio Cooler | 240mm |
| Radiator Dimensions (W X D X H) | 28 x 12 x 2.7cm |
| Material Of The Heat Transfer Pipe | Aluminium |
