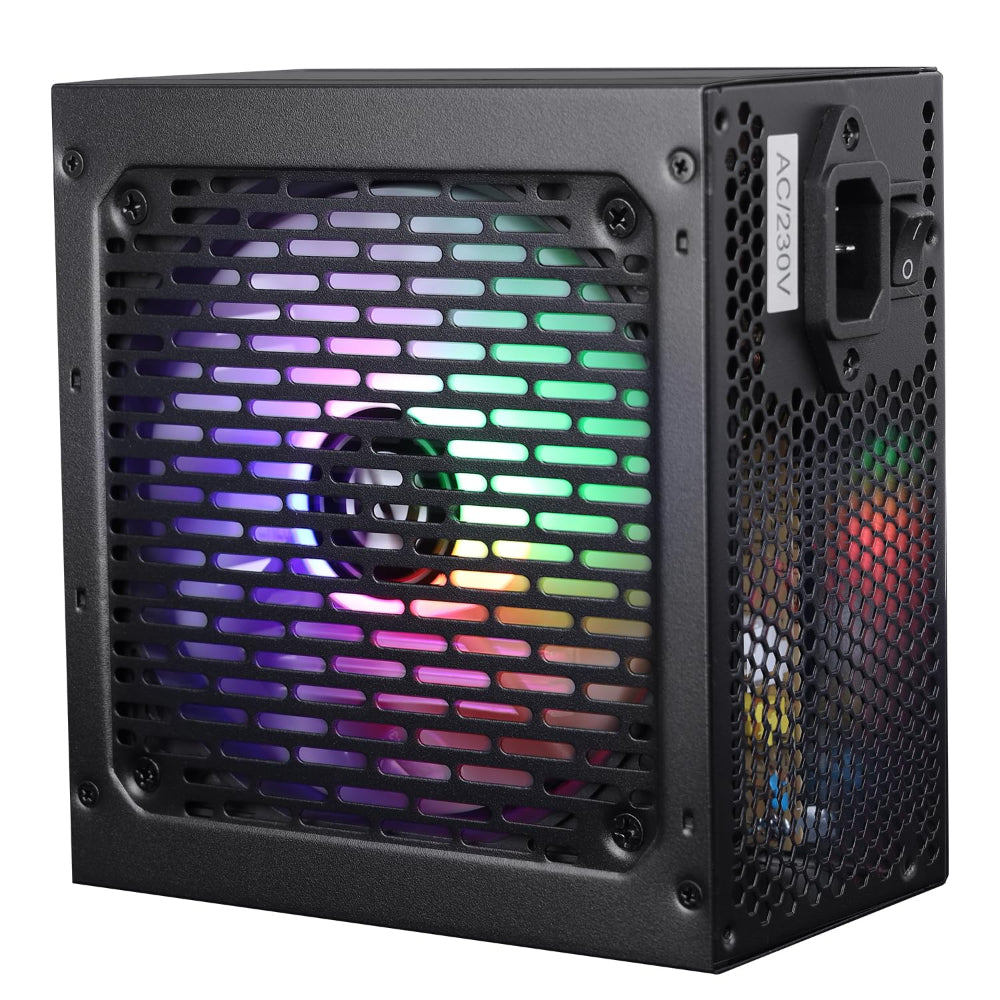

ZEBRONICS Zeb VS500Z 500W Non-Modular Power Supply ( Black )

The Zebronics Zeb VS500Z is a 500W non-modular ATX power supply designed for budget-friendly desktop and entry-level gaming builds. It delivers stable power through a single +12V rail rated at 32A, distributing clean voltage to your CPU, GPU, and storage devices. The fixed cable harness includes a 20+4 pin motherboard connector, a 4+4 pin CPU connector, a single 6+2 pin PCIe connector for graphics cards, Molex connectors for legacy peripherals, and four SATA connectors to power multiple hard drives or SSDs simultaneously. Thermal management is handled by a 120mm hydraulic bearing fan fitted with RGB lighting, providing both efficient airflow and a touch of visual flair inside windowed cases. Hydraulic bearing fans are quieter than sleeve-bearing alternatives and offer improved longevity under sustained loads. The PSU incorporates three essential hardware protections — overvoltage protection (OVP), overcurrent protection (OCP), and short-circuit protection (SCP) — to help safeguard connected components from electrical faults. With a standard ATX form factor measuring 140 × 150 × 85 mm and a weight of 1.1 kg, the Zeb VS500Z fits into most mid-tower and full-tower cases without modification. Input is rated at 230V / 3A, making it suitable for Indian mains voltage. A power-good signal of ≥ 500 ms and a hold-up time of ≥ 16 ms meet standard ATX specifications, ensuring orderly system startup and short-duration power interruptions are handled gracefully. Verified Specifications: • Rated Output Power: 500W • +12V Rail: 32A • Input Voltage: 230V AC • Input Current: 3A • Fan: 120mm hydraulic bearing with RGB lighting • Protections: OVP, OCP, SCP • Power Good Signal: ≥ 500ms • Hold-Up Time: ≥ 16ms • Product Dimensions (W × D × H): 140 × 150 × 85 mm • Weight: 1.1 kg • Country of Origin: China • Connectors: 20+4 pin MB, 4+4 pin CPU, 1× PCIe 6+2, SATA ×4, Molex • In the Box: PSU ×1, Power cord ×1, Mounting screws ×4, User manual ×1 • Efficiency Rating: Not disclosed by manufacturer
