Zotac Gaming Alloy M-ATX Mini Tower Case

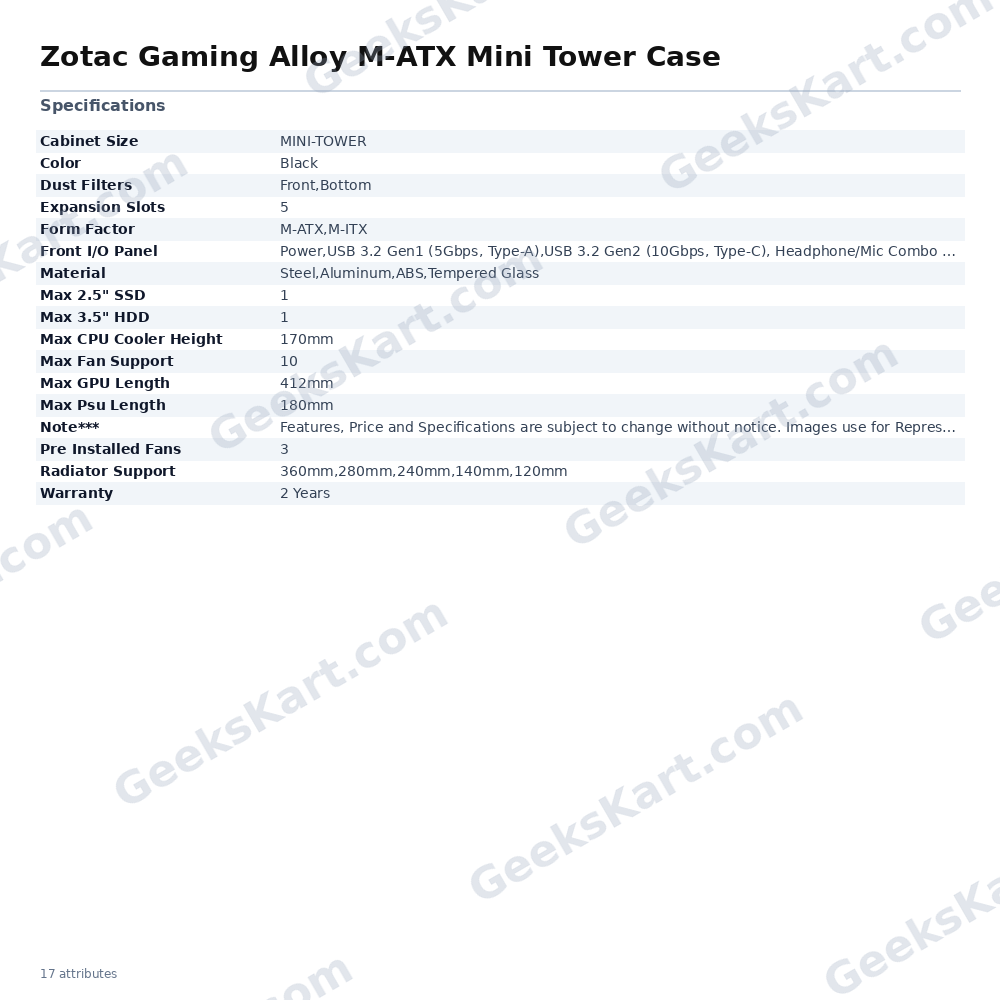

The ZOTAC Gaming Alloy mATX Mini Tower Case (ZC-MAB3F-01) is a compact yet capable chassis built with DIY gaming PC builders in mind. Constructed from a combination of steel, aluminium, ABS plastic, and tempered glass, the Alloy case strikes a balance between structural rigidity and visual appeal. Its minimal geometric design is tailored to complement ZOTAC GAMING graphics cards while remaining compatible with a wide range of hardware. Airflow is a key priority in the Alloy's design. A dedicated air-guide ramp at the base of the case channels cool air directly toward the GPU, helping to reduce thermal throttling under sustained gaming loads. The case ships with three 120mm PWM fans (two pre-installed at the front, one at the rear), spinning between 1,350 and 1,450 RPM, and can accommodate up to 10 fans in total across the front, top, midplate, PSU shroud, and rear positions. For liquid-cooling enthusiasts, the top panel supports radiators up to 360mm, while the rear accepts a single 120mm unit. Assembly is made straightforward through a toolless PCIe screw design, quick-detach side panels, and thumb-tightened fasteners throughout. Push-to-detach dust filters at the front and bottom help keep internals clean without requiring tools for maintenance. Vibration-dampening pads on the included fans and at the 3.5-inch hard drive mounting point reduce noise during operation. The front I/O panel provides a USB 3.2 Gen 2 Type-C port (10 Gbps), a USB 3.2 Gen 1 Type-A port (5 Gbps), and a headphone/microphone combo jack — a useful selection for modern peripherals. Verified Specifications: • Form Factor: Micro-ATX, Mini-ITX • GPU Clearance: up to 412 mm • CPU Cooler Height: up to 170 mm • PSU Length: up to 180 mm • Pre-installed Fans: 3 × 120mm PWM (1,350–1,450 RPM) • Max Fan Support: 10 • Radiator Support: 120 / 140 / 240 / 280 / 360mm (top); 120mm (rear) • Storage: 1 × 3.5-inch HDD, 1 × 2.5-inch SSD • Expansion Slots: 5 • Front I/O: USB 3.2 Gen 2 Type-C (10 Gbps), USB 3.2 Gen 1 Type-A (5 Gbps), headphone/mic combo • Dust Filters: Front, Bottom • Materials: Steel, Aluminium, ABS, Tempered Glass • Colour: Black • Warranty: 2 Years • SKU: ZC-MAB3F-01
