Features of ZOTAC Gaming GeForce RTX 5060 AMP 8GB Nvidia Graphic Card

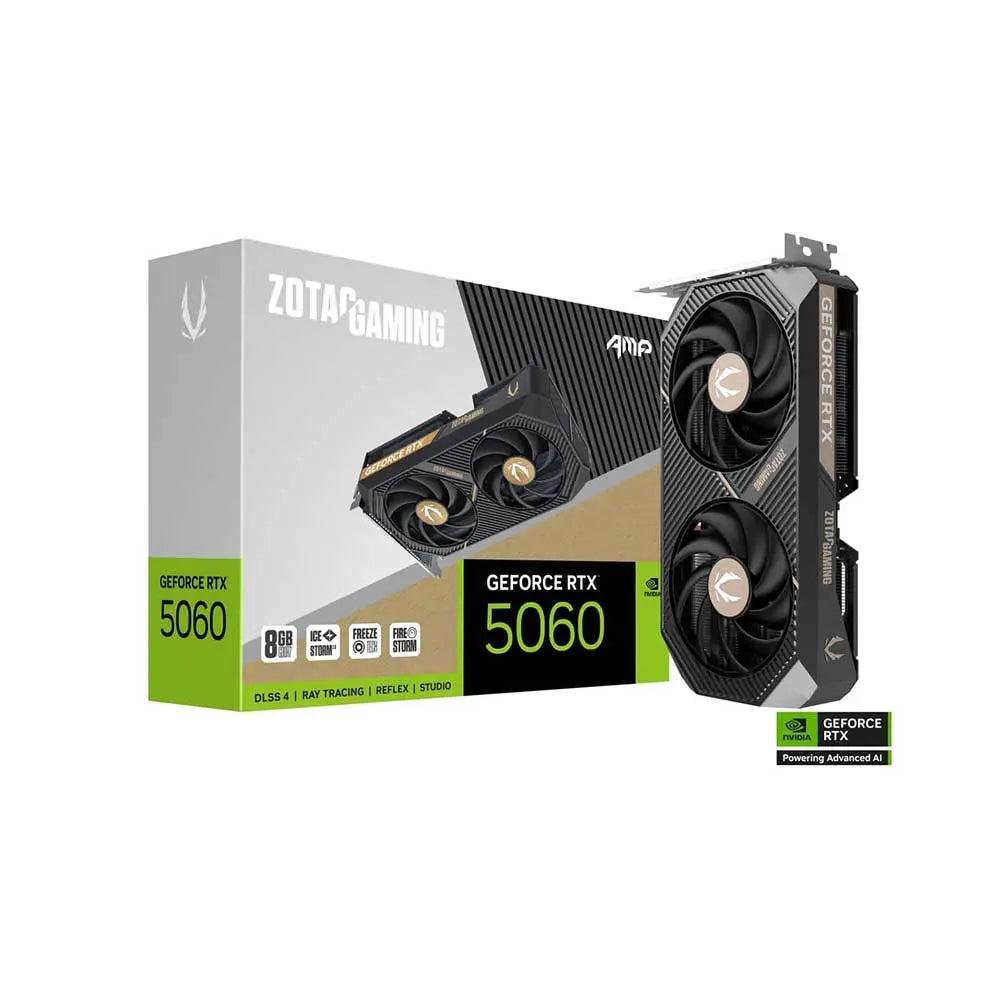

ZOTAC GAMING GeForce RTX 5060 AMP
ZT-B50600F-10M
– Powered by the NVIDIA Blackwell architecture and DLSS 4
– 8-Pin PCIe power connector
– SFF-Ready compact Graphics Card
– BladeLink Fans
– All-new FireStorm Utility
The ZOTAC GAMING GeForce RTX 5060 AMP is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a strong factory OC as well as a solid cooling solution, the AMP is ready to take on the latest title releases with smooth framerates and performance.
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
The Ultimate in Ray Tracing and AI
RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation
Game-Changing Realism
The NVIDIA Blackwell architecture unlocks the game-changing realism of full ray tracing. Experience cinematic quality visuals at unprecedented speed powered by GeForce RTX 50 Series with fourth-gen RT Cores and breakthrough neural rendering technologies accelerated with fifth-gen Tensor Cores.

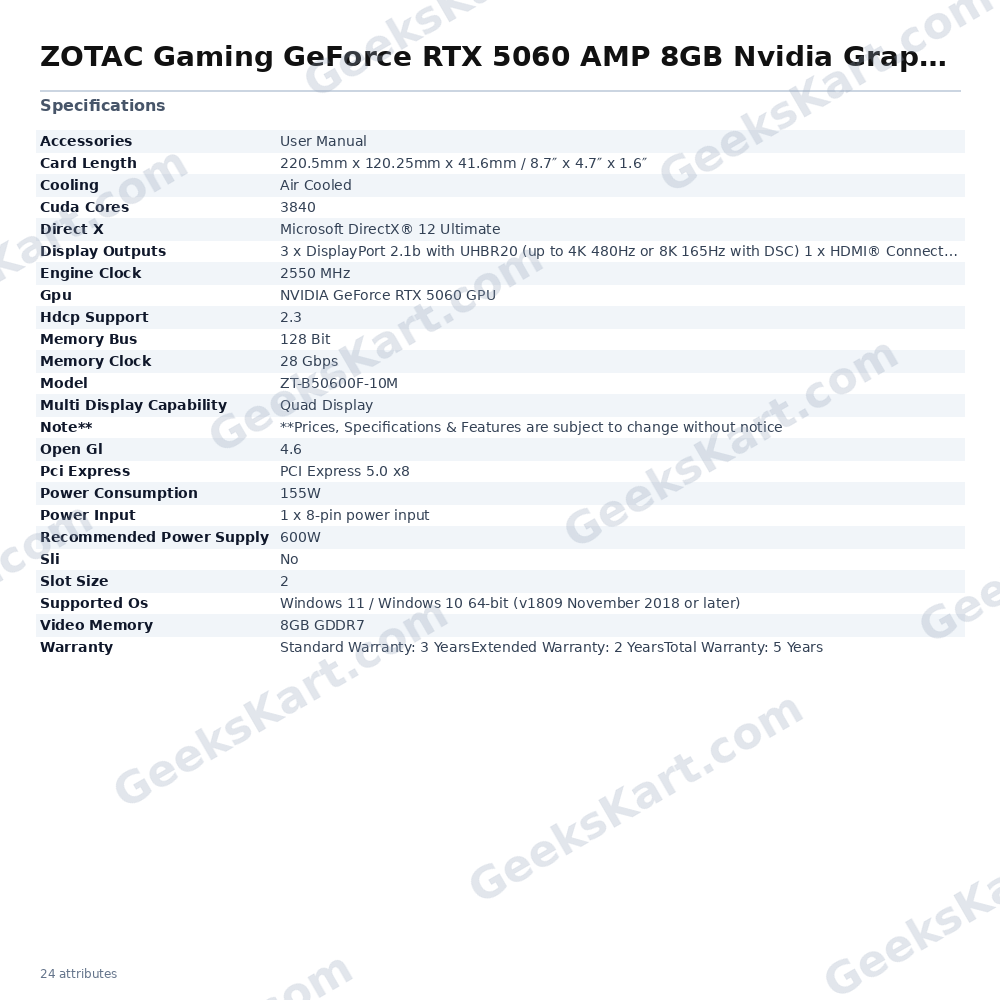

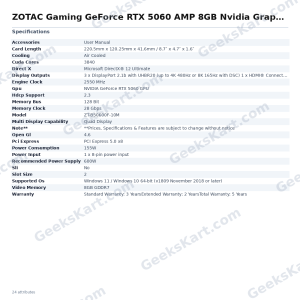

Specifications of ZOTAC Gaming GeForce RTX 5060 AMP 8GB Nvidia Graphic Card
| Model No | ZT-B50600F-10M |
| GPU | NVIDIA GeForce RTX 5060 GPU |
| Cuda Cores | 3840 |
| Video Memory | 8GB GDDR7 |
| Memory Bus | 128 Bit |
| Engine Clock | 2550 MHz |
| Memory Clock | 28 Gbps |
| PCI Express | PCI Express 5.0 x8 |
| Display Outputs | 3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC) 1 x HDMI® Connector (Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification) |
| HDCP Support | 2.3 |
| Multi Display Capability | Quad Display |
| Recommended Power Supply | 600W |
| Power Consumption | 155W |
| Power Input | 1 x 8-pin power input |
| Direct X | Microsoft DirectX® 12 Ultimate |
| Open GL | 4.6 |
| Cooling | Air Cooled |
| Slot Size | 2 |
| SLI | No |
| Supported OS | Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) |
| Card Length | 220.5mm x 120.25mm x 41.6mm / 8.7″ x 4.7″ x 1.6″ |
| Accessories | User Manual |
| Warranty | Standard Warranty: 3 Years Extended Warranty: 2 Years Total Warranty: 5 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
