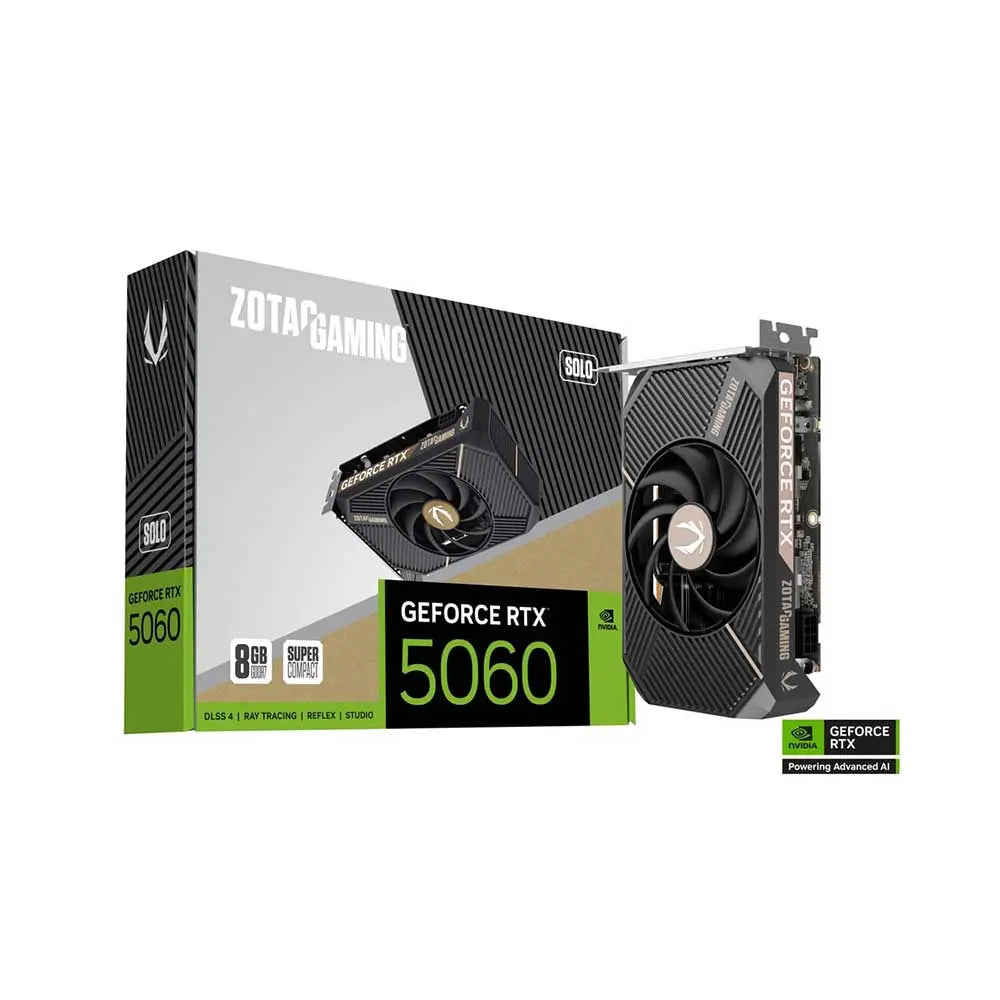

ZOTAC Gaming GeForce RTX 5060 Solo 8GB Nvidia Graphic Card
MPN ZOTAC-RTX-5060-SOLO-8GB-BLACK · Brand Zotac
Features of ZOTAC Gaming GeForce RTX 5060 Solo 8GB Nvidia Graphic Card ZOTAC GAMING GeForce RTX 5060 SOLO ZT-B50600G-10L - Powered by the NVIDIA Blackwell architecture and DLSS 4 - 8-Pin PCIe power connector - ITX-Ready ultra-compact Graphics Card - Fits in 99% of PC builds - BladeLink Fan - All-new FireStorm Utility The ZOTAC GAMING GeForce RTX 5060 SOLO is a super-compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a single-fan, du
Inclusive of GST · GST invoice available
Overview
Features of ZOTAC Gaming GeForce RTX 5060 Solo 8GB Nvidia Graphic Card
ZOTAC GAMING GeForce RTX 5060 SOLO
ZT-B50600G-10L
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- 8-Pin PCIe power connector
- ITX-Ready ultra-compact Graphics Card
- Fits in 99% of PC builds
- BladeLink Fan
- All-new FireStorm Utility
The ZOTAC GAMING GeForce RTX 5060 SOLO is a super-compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a single-fan, dual-dual slot footprint, the SOLO is ready to deliver big performance in a minuscule footprint.
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
The Ultimate in Ray Tracing and AI
RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.
Supreme Speed. Superior Visuals. Powered by AI.
DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX™ 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX is the best way to play, backed by an NVIDIA AI supercomputer in the cloud constantly improving your PC’s gaming capabilities.

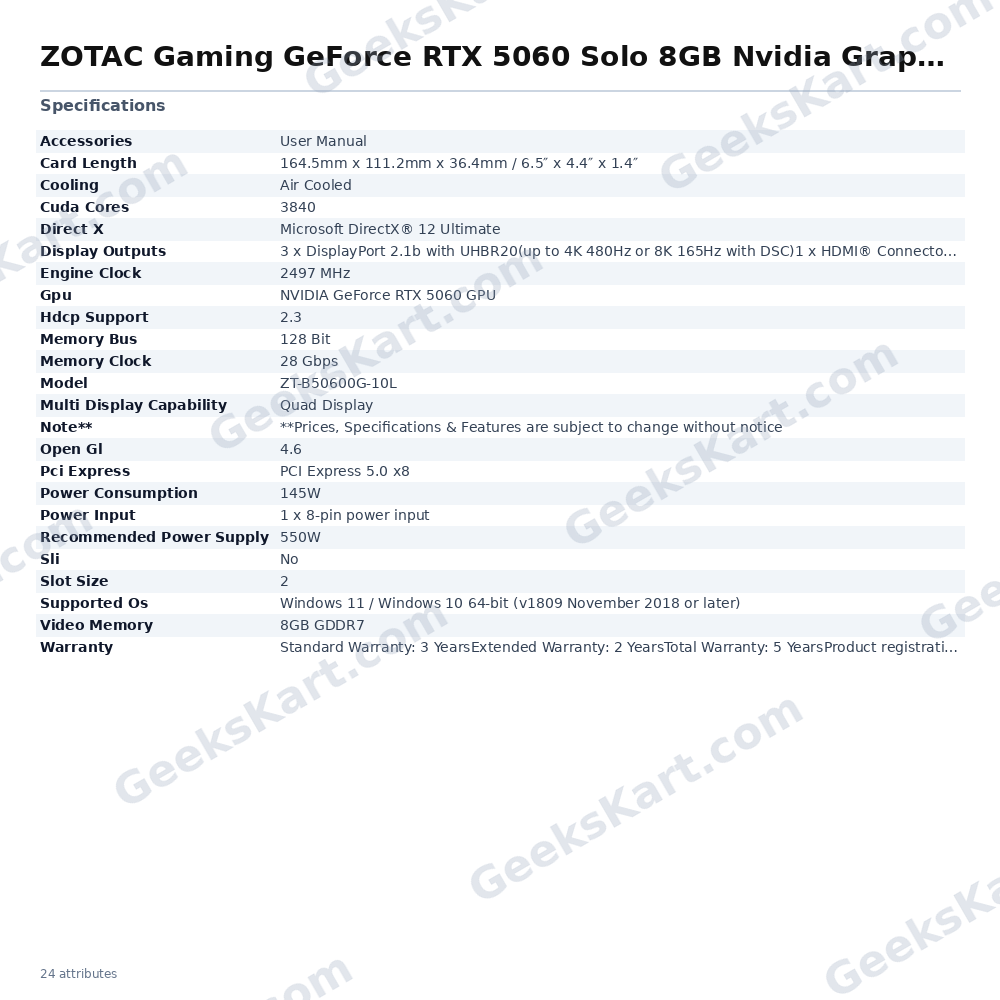

Specifications of ZOTAC Gaming GeForce RTX 5060 Solo 8GB Nvidia Graphic Card
| Model No | ZT-B50600G-10L |
| GPU | NVIDIA GeForce RTX 5060 GPU |
| Cuda Cores | 3840 |
| Video Memory | 8GB GDDR7 |
| Memory Bus | 128 Bit |
| Engine Clock | 2497 MHz |
| Memory Clock | 28 Gbps |
| PCI Express | PCI Express 5.0 x8 |
| Display Outputs | 3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC) 1 x HDMI® Connector (Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification) |
| HDCP Support | 2.3 |
| Multi Display Capability | Quad Display |
| Recommended Power Supply | 550W |
| Power Consumption | 145W |
| Power Input | 1 x 8-pin power input |
| Direct X | Microsoft DirectX® 12 Ultimate |
| Open GL | 4.6 |
| Cooling | Air Cooled |
| Slot Size | 2 |
| SLI | No |
| Supported OS | Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) |
| Card Length | 164.5mm x 111.2mm x 36.4mm / 6.5″ x 4.4″ x 1.4″ |
| Accessories | User Manual |
| Warranty | Standard Warranty: 3 Years Extended Warranty: 2 Years Total Warranty: 5 Years Product registration is must to get Extended Warranty. Register product at https://www.zotac.com/in/support#registration |
| Note** | **Prices, Specifications & Features are subject to change without notice |
Datasheet
| Sli | No |
|---|---|
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Cooling | Air Cooled |
| Open Gl | 4.6 |
| Direct X | Microsoft DirectX® 12 Ultimate |
| Model | ZT-B50600G-10L |
| Slot Size | 2 |
| Cuda Cores | 3840 |
| Memory Bus | 128 Bit |
| Accessories | User Manual |
| Card Length | 164.5mm x 111.2mm x 36.4mm / 6.5″ x 4.4″ x 1.4″ |
| Pci Express | PCI Express 5.0 x8 |
| Power Input | 1 x 8-pin power input |
| Engine Clock | 2497 MHz |
| Hdcp Support | 2.3 |
| Supported Os | Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) |
| Video Memory | 8GB GDDR7 |
| Display Outputs | 3 x DisplayPort 2.1b with UHBR20(up to 4K 480Hz or 8K 165Hz with DSC)1 x HDMI® Connector(Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification) |
| Multi Display Capability | Quad Display |
| Recommended Power Supply | 550W |
| GPU | NVIDIA GeForce RTX 5060 GPU |
| Memory Clock | 28 Gbps |
| Power Consumption | 145W |
| Warranty | Standard Warranty: 3 YearsExtended Warranty: 2 YearsTotal Warranty: 5 YearsProduct registration is must to get Extended Warranty.Register product at https://www.zotac.com/in/support#registration |
