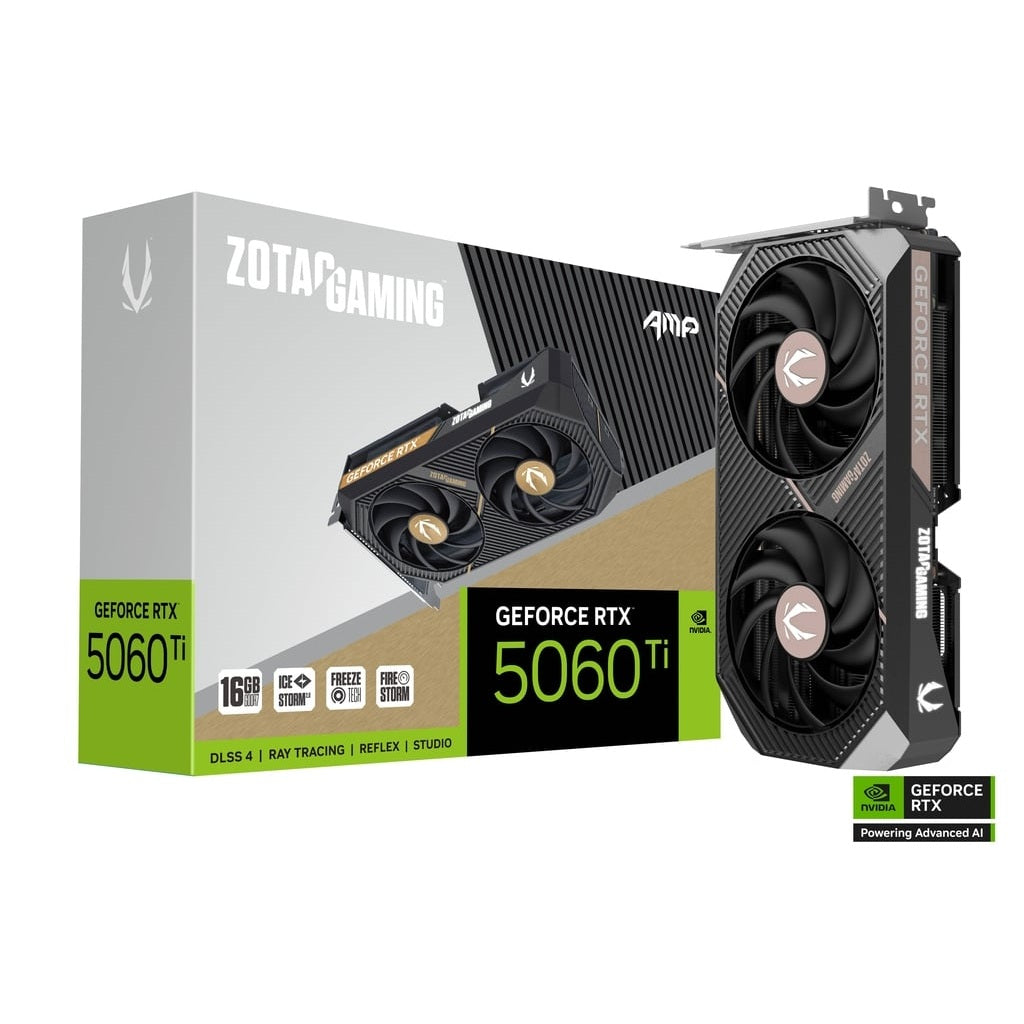

ZOTAC Gaming GeForce RTX 5060 Ti AMP 16GB Nvidia Graphic Card

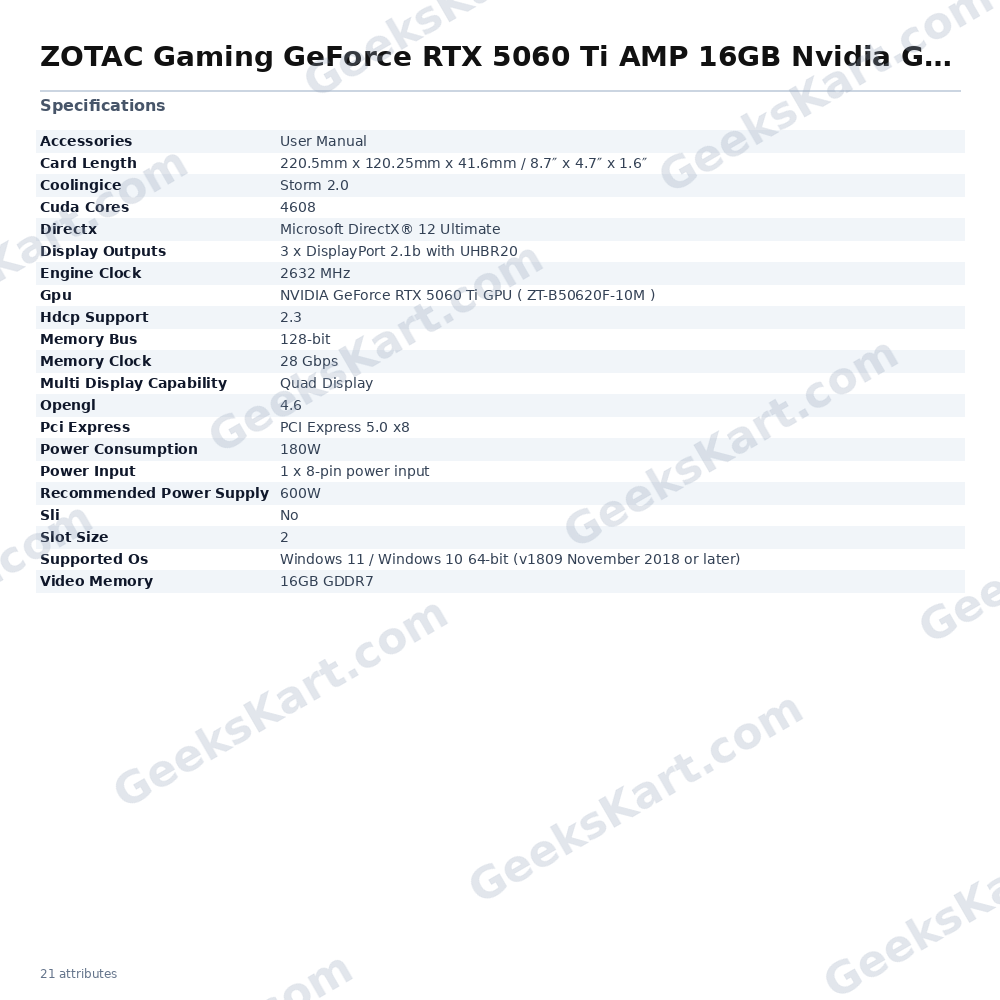

The ZOTAC Gaming GeForce RTX 5060 Ti AMP 16GB is a factory-overclocked graphics card built on NVIDIA’s Blackwell architecture, offering a compelling combination of performance, compact dimensions, and power efficiency for mainstream to mid-range gaming and content creation workloads. At its core, the card carries 4,608 CUDA cores driven by a boost clock of 2,632 MHz, backed by 16 GB of GDDR7 memory running at 28 Gbps across a 128-bit bus. Despite the narrower bus, GDDR7’s bandwidth-per-pin advantage helps sustain strong throughput for 1080p and 1440p gaming. The GPU slots into a PCIe 5.0 x8 interface and draws only 180 W through a single 8-pin power connector, with a recommended PSU of just 600 W — making it a practical drop-in upgrade for many existing systems. ZOTAC’s IceStorm 2.0 Enhanced Cooling solution keeps thermals in check across the card’s compact 220.5 mm × 120.25 mm × 41.6 mm (8.7″ × 4.7″ × 1.6″) 2-slot footprint. That SFF-ready size means the AMP fits virtually all mid-tower and many small-form-factor cases without modification. A metal backplate reinforces structural rigidity, and white LED lighting provides understated visual flair manageable through the ZOTAC FireStorm Utility, which also exposes clock, voltage, fan-curve, and SPECTRA RGB controls. On the display side, three DisplayPort 2.1b outputs with UHBR20 support resolutions up to 4K at 480 Hz or 8K at 165 Hz (with DSC), while the single HDMI 2.1b port handles 4K 120 Hz HDR and 8K 60 Hz HDR. Quad-display output is supported natively, and HDCP 2.3 covers protected content playback. Software-side, the card fully supports NVIDIA DLSS 4 with Multi Frame Generation powered by fifth-generation Tensor Cores, NVIDIA Reflex 2 with Frame Warp for competitive-latency reduction, G-SYNC compatible displays, and the full DirectX 12 Ultimate feature set including hardware ray tracing via fourth-generation RT Cores. The NVIDIA App serves as a unified control centre for driver updates, game optimisation, and overlay monitoring. Verified Specifications: • GPU: NVIDIA GeForce RTX 5060 Ti (ZT-B50620F-10M) • CUDA Cores: 4,608 • Video Memory: 16 GB GDDR7 • Memory Bus: 128-bit • Memory Speed: 28 Gbps • Boost Clock: 2,632 MHz • Interface: PCIe 5.0 x8 • TDP: 180 W • Power Connector: 1 × 8-pin • Recommended PSU: 600 W • Display Outputs: 3 × DisplayPort 2.1b (UHBR20), 1 × HDMI 2.1b • Multi-Display: Quad • HDCP: 2.3 • DirectX: 12 Ultimate | OpenGL: 4.6 • Cooling: IceStorm 2.0 Enhanced (2-slot) • Card Dimensions: 220.5 mm × 120.25 mm × 41.6 mm • OS Support: Windows 11 / Windows 10 64-bit (v1809+)
