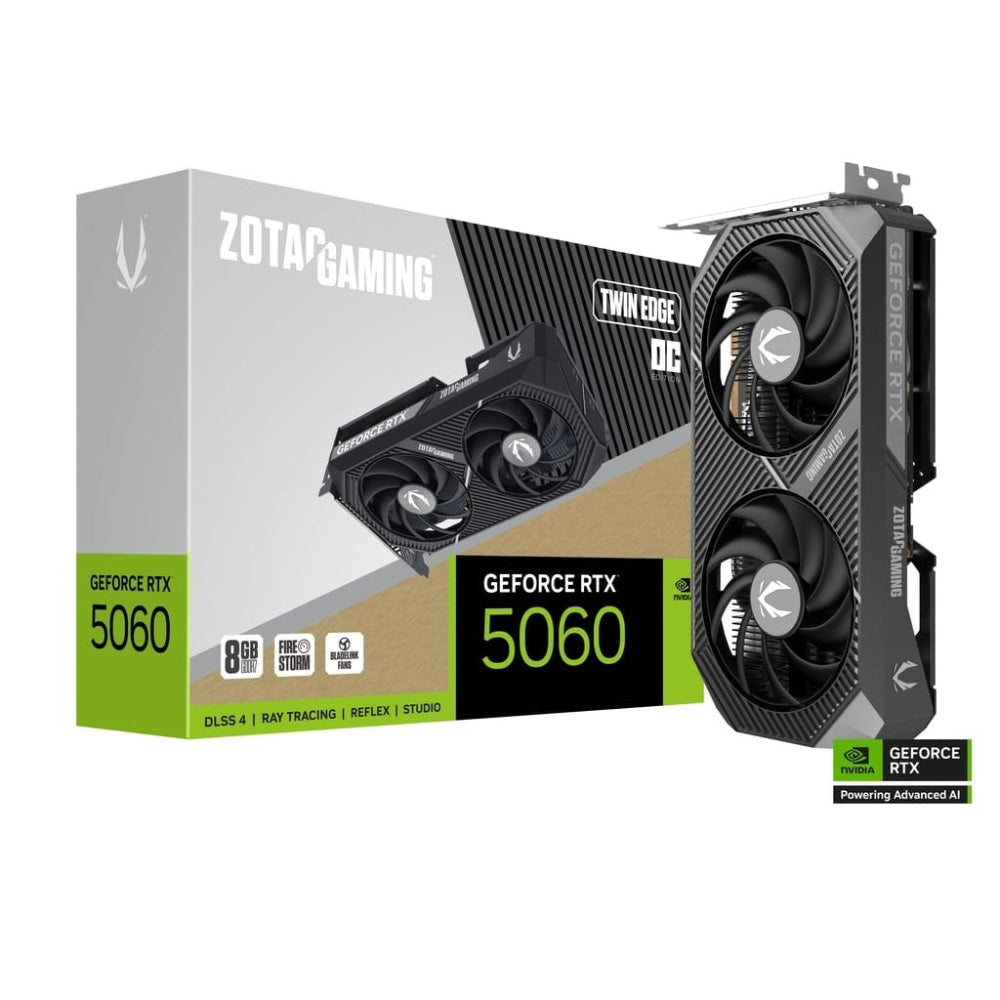

ZOTAC Gaming GeForce RTX 5060 Twin Edge OC 8GB Nvidia Graphic Card

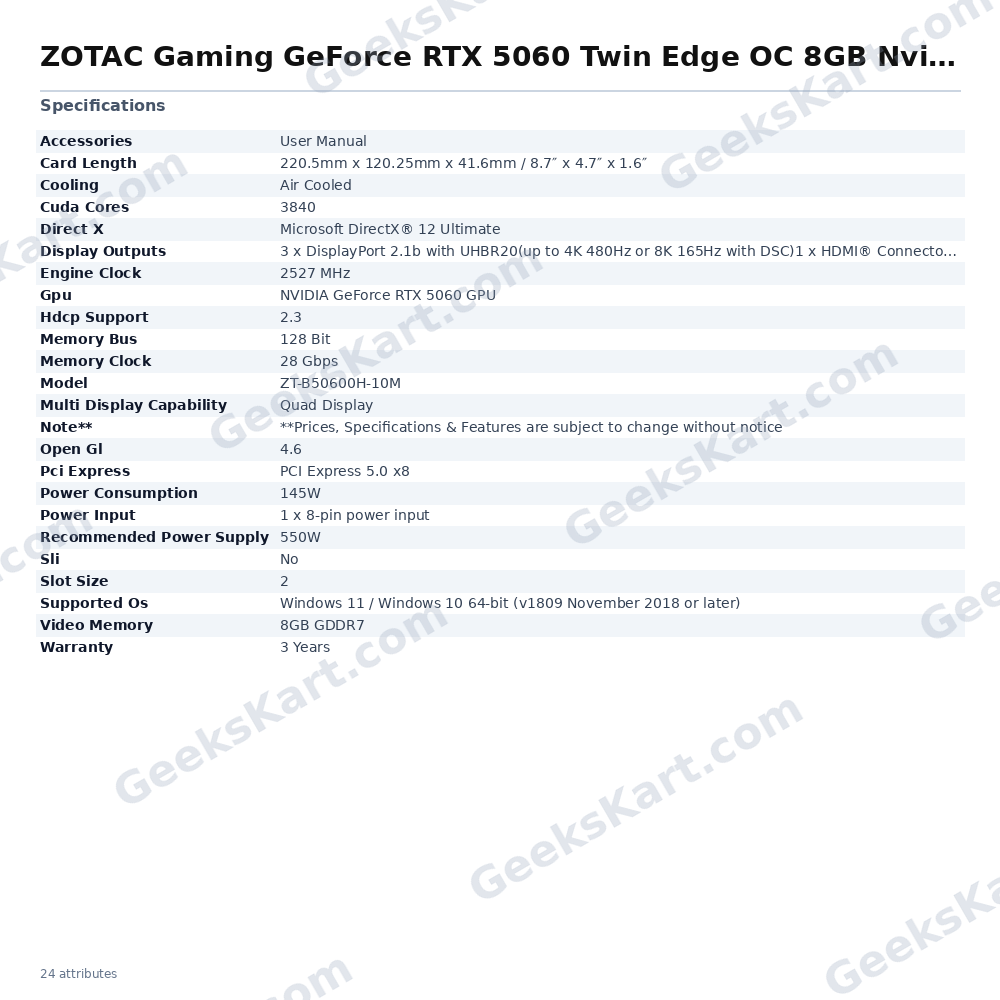

The ZOTAC Gaming GeForce RTX 5060 Twin Edge OC is a compact, factory-overclocked graphics card built on the NVIDIA Blackwell architecture. It pairs 3,840 CUDA cores with 8 GB of GDDR7 memory running at 28 Gbps across a 128-bit memory bus, delivering fast frame delivery for 1080p and 1440p gaming workloads. The card ships with a boost clock of 2,527 MHz from the factory, giving it a performance headstart over reference speeds straight out of the box. The Twin Edge cooling solution uses a dual-fan, air-cooled design housed in a slim 2-slot chassis that measures just 220.5 mm × 120.25 mm × 41.6 mm (8.7 × 4.7 × 1.6 inches). This SFF-ready footprint makes it straightforward to install in a wide range of mid-tower, mini-ITX, and small-form-factor cases without modification. A metal backplate adds structural rigidity and contributes to the overall durability of the build. Power requirements are modest by modern GPU standards: a single 8-pin PCIe power connector and a 550 W recommended power supply are all that is needed. Total board power is rated at 145 W, keeping thermal output manageable for compact systems. Connectivity is handled by four display outputs — three DisplayPort 2.1b ports supporting up to 4K at 480 Hz or 8K at 165 Hz (with DSC), plus one HDMI 2.1b port supporting up to 4K at 480 Hz HDR or 8K at 120 Hz HDR (with DSC). The card supports quad-display output simultaneously and is HDCP 2.3 compliant. The interface is PCI Express 5.0 x8. Software support includes NVIDIA DLSS 4 with Multi Frame Generation, NVIDIA Reflex 2 with Frame Warp for reduced input latency, G-SYNC compatibility, and full ray tracing via fourth-generation RT Cores. AI workloads and creative applications benefit from fifth-generation Tensor Cores. The ZOTAC FireStorm utility enables clock tuning, fan curve adjustment, and voltage monitoring. Game Ready and Studio drivers are supported, and the card is compatible with Windows 10 64-bit (version 1809 or later) and Windows 11. Verified Specifications: • Model: ZT-B50600H-10M • GPU: NVIDIA GeForce RTX 5060 (Blackwell) • CUDA Cores: 3,840 • Video Memory: 8 GB GDDR7 • Memory Bus: 128-bit • Memory Clock: 28 Gbps • Engine Clock: 2,527 MHz (OC) • PCI Express: PCIe 5.0 x8 • Display Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b • Power Connector: 1× 8-pin PCIe • TDP: 145 W • Recommended PSU: 550 W • Dimensions: 220.5 × 120.25 × 41.6 mm • Slot Width: 2-slot • DirectX: 12 Ultimate | OpenGL: 4.6 • Warranty: 3 Years
