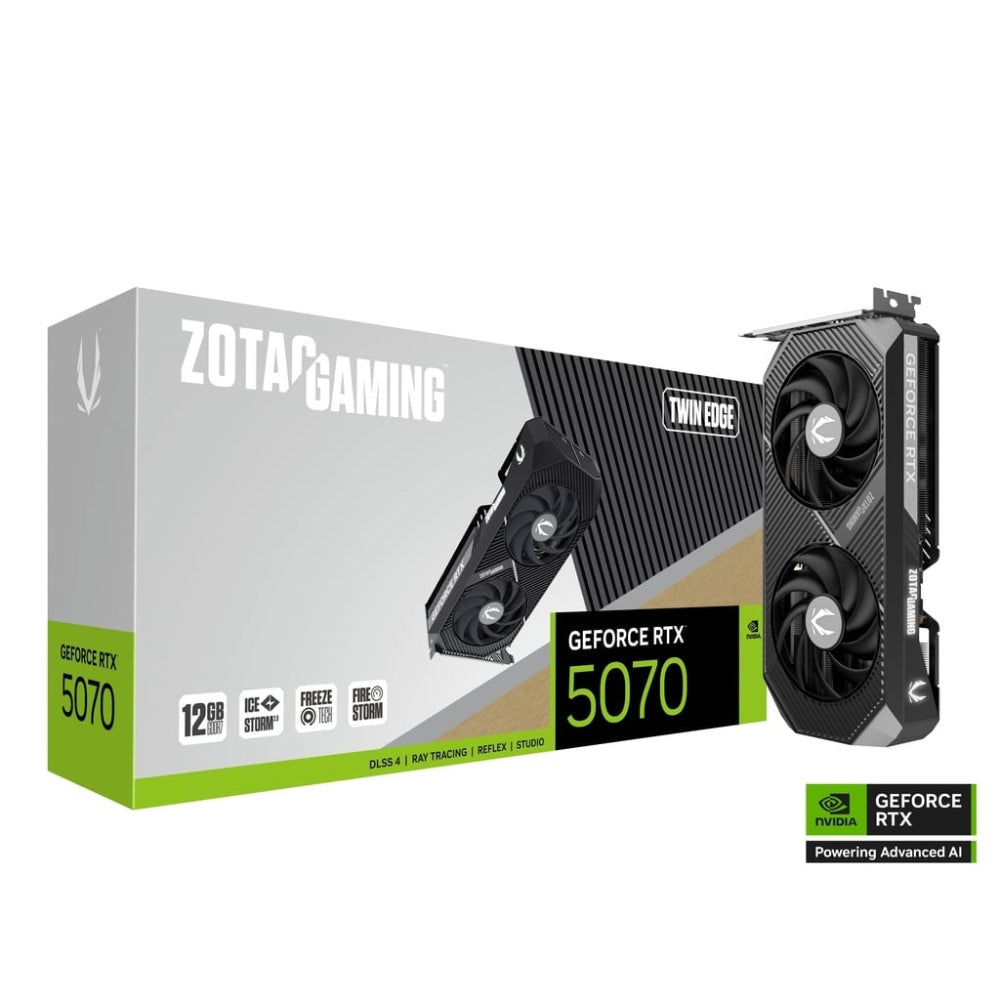

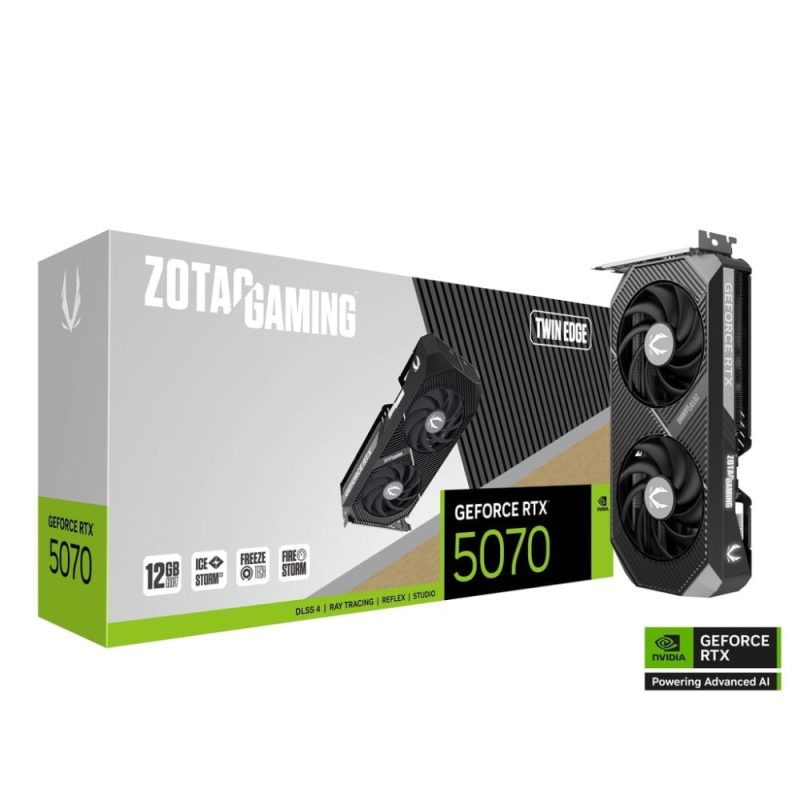

ZOTAC GAMING GeForce RTX 5070 Twin Edge 12GB Nvidia Graphic Card

The ZOTAC GAMING GeForce RTX 5070 Twin Edge 12GB is a dual-slot graphics card built on NVIDIA's Blackwell architecture, delivering capable performance for gaming and AI-accelerated workloads in a compact 241.5 mm form factor. With 6,144 CUDA cores and 12 GB of GDDR7 memory running on a 192-bit bus at 28 Gbps, the card offers substantial memory bandwidth for high-resolution gaming and creative tasks alike. NVIDIA's DLSS 4 technology, supported on this card, uses fifth-generation Tensor Cores to enable Multi Frame Generation, Super Resolution, and Ray Reconstruction — all powered by AI inference. Full ray tracing is handled by fourth-generation RT Cores embedded in the Blackwell die, enabling cinematic lighting and shadow effects in supported titles. NVIDIA Reflex 2 further reduces system latency through its Frame Warp feature, which factors in the latest mouse input to minimise perceived lag in competitive games. The Twin Edge is classified as SFF-Ready Enthusiast, making it a practical choice for compact PC builds. Its dual-fan IceStorm 2.0 cooling system keeps the 250 W TDP in check within the 40.6 mm two-slot footprint. Connectivity is handled by three DisplayPort 2.1b (UHBR20) outputs — capable of driving displays up to 4K at 480 Hz or 8K at 165 Hz with DSC — and one HDMI 2.1b port supporting 4K at 480 Hz HDR or 8K at 120 Hz HDR with DSC. Quad-display output is supported simultaneously. The card connects via PCI Express 5.0 x16 and draws power through a single 12V-2x6 connector; ZOTAC recommends a 650 W system PSU. It ships with two 8-pin-to-16-pin adapter cables. ZOTAC's FireStorm utility provides monitoring and tuning controls including clock speeds, memory frequencies, voltage, fan curves, and SPECTRA RGB lighting management. Verified Specifications: • Model: ZT-B50700E-10P • GPU: NVIDIA GeForce RTX 5070 (Blackwell) • CUDA Cores: 6,144 • Video Memory: 12 GB GDDR7 • Memory Bus: 192-bit • Memory Clock: 28 Gbps • Engine Clock: 2,512 MHz (boost) • Power Consumption (TDP): 250 W • Recommended PSU: 650 W • Power Connector: 1 × 12V-2x6 • Display Outputs: 3 × DisplayPort 2.1b (UHBR20), 1 × HDMI 2.1b • Multi-Display: Quad Display • PCI Express: 5.0 x16 • Slot Size: 2-slot • Card Dimensions: 241.5 mm × 120.1 mm × 40.6 mm • DirectX: 12 Ultimate • OpenGL: 4.6 • HDCP: 2.3 • OS Support: Windows 11 / Windows 10 64-bit (v1809 or later) • Cooling: IceStorm 2.0 • SLI: Not supported
