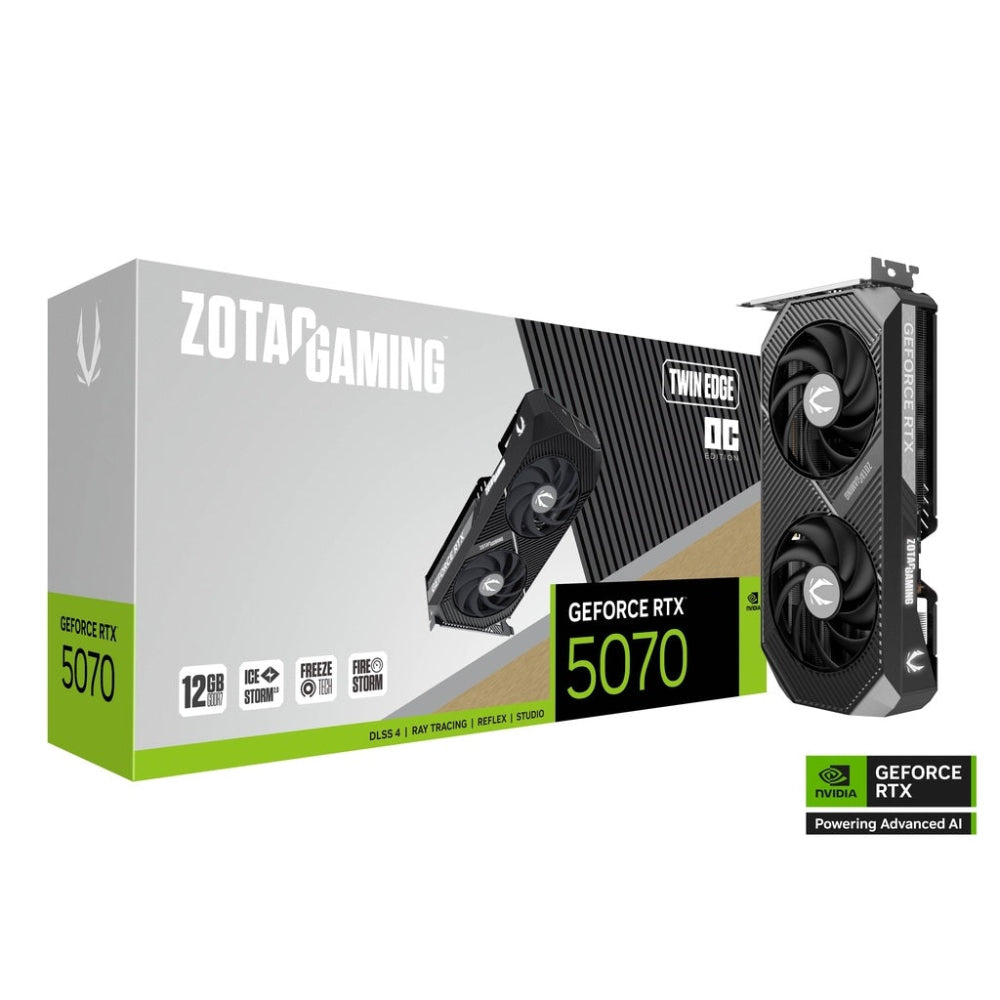

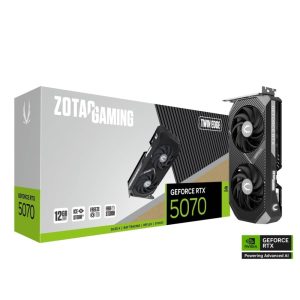

ZOTAC GAMING GeForce RTX 5070 Twin Edge OC 12GB Nvidia Graphic Card

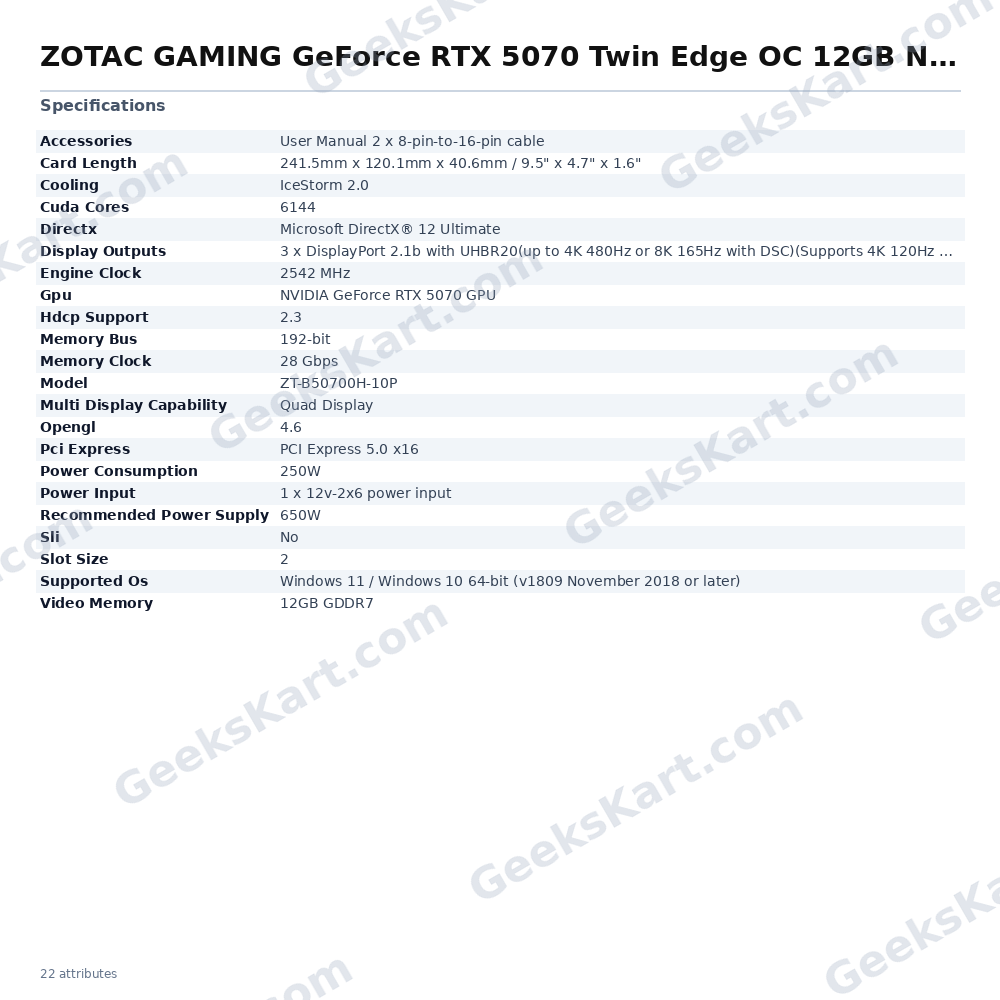

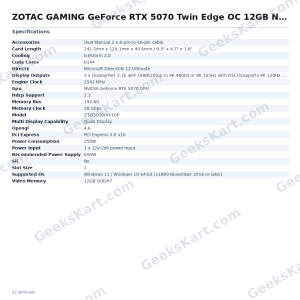

The ZOTAC GAMING GeForce RTX 5070 Twin Edge OC (model ZT-B50700H-10P) is a dual-slot, compact graphics card built on NVIDIA’s Blackwell architecture. Measuring 241.5 mm x 120.1 mm x 40.6 mm, it fits SFF-Ready Enthusiast cases while delivering a full-performance desktop GPU experience. At its core sit 6,144 CUDA cores driven by a boost clock of 2,542 MHz, paired with 12 GB of GDDR7 video memory running at 28 Gbps across a 192-bit memory bus — a combination that sustains high frame rates in demanding titles and AI-accelerated workloads alike. NVIDIA DLSS 4 is supported natively, bringing Multi Frame Generation together with enhanced Ray Reconstruction and Super Resolution to multiply frame rates and sharpen image quality. Full ray tracing is accelerated by fourth-generation RT Cores, while fifth-generation Tensor Cores handle the neural rendering pipeline. NVIDIA Reflex 2 with Frame Warp reduces system latency by aligning the final render with the very latest mouse input, giving competitive players a measurable edge. Connectivity covers three DisplayPort 2.1b outputs with UHBR20 bandwidth, supporting resolutions up to 4K at 480 Hz or 8K at 165 Hz with DSC, plus 4K 120 Hz HDR and 8K 60 Hz HDR. Quad-display operation is supported simultaneously. The card draws power through a single 12V-2×6 connector and carries a rated TDP of 250 W; a 650 W system PSU is recommended. DirectX 12 Ultimate and OpenGL 4.6 are supported, and the card is compatible with Windows 11 and Windows 10 64-bit (version 1809 or later). Cooling is handled by ZOTAC’s IceStorm 2.0 system with a dual-fan arrangement suited to the card’s slim 2-slot profile. The FireStorm utility enables monitoring and adjustment of clock speeds, memory frequencies, voltage, fan curves, and SPECTRA RGB lighting. The card connects via PCI Express 5.0 x16 and ships with a user manual and two 8-pin-to-16-pin adapter cables. Key Specifications: – Model: ZT-B50700H-10P – GPU: NVIDIA GeForce RTX 5070 (Blackwell) – CUDA Cores: 6,144 – Video Memory: 12 GB GDDR7 – Memory Bus: 192-bit – Memory Clock: 28 Gbps – Engine Clock (Boost): 2,542 MHz – TDP: 250 W | Recommended PSU: 650 W – Power Connector: 1 x 12V-2×6 – Display Outputs: 3 x DisplayPort 2.1b (UHBR20) – Multi-Display: Quad Display – PCI Express: 5.0 x16 – Cooling: IceStorm 2.0 (2-slot) – DirectX: 12 Ultimate | OpenGL: 4.6 – Dimensions: 241.5 mm x 120.1 mm x 40.6 mm – OS Support: Windows 11 / Windows 10 64-bit (v1809+)
