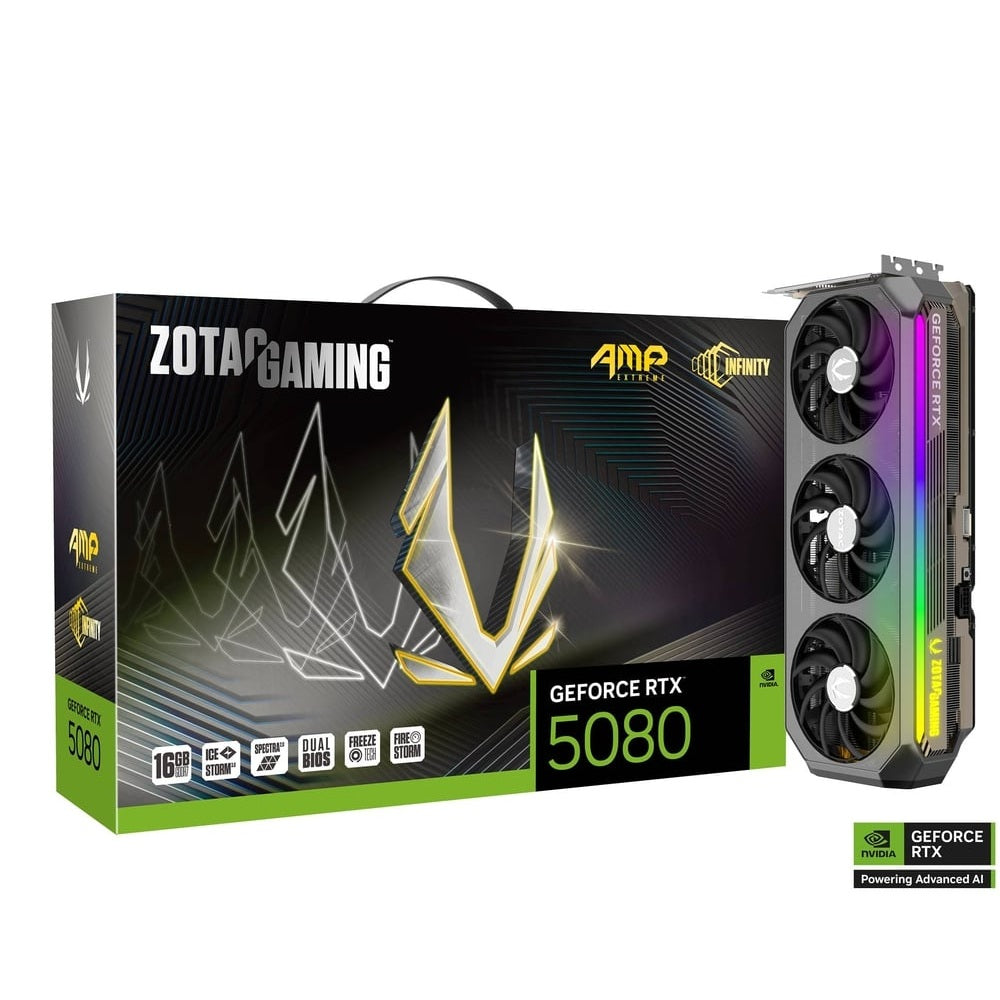

ZOTAC GAMING GeForce RTX 5080 AMP Extreme Infinity 16GB Nvidia Graphic Card

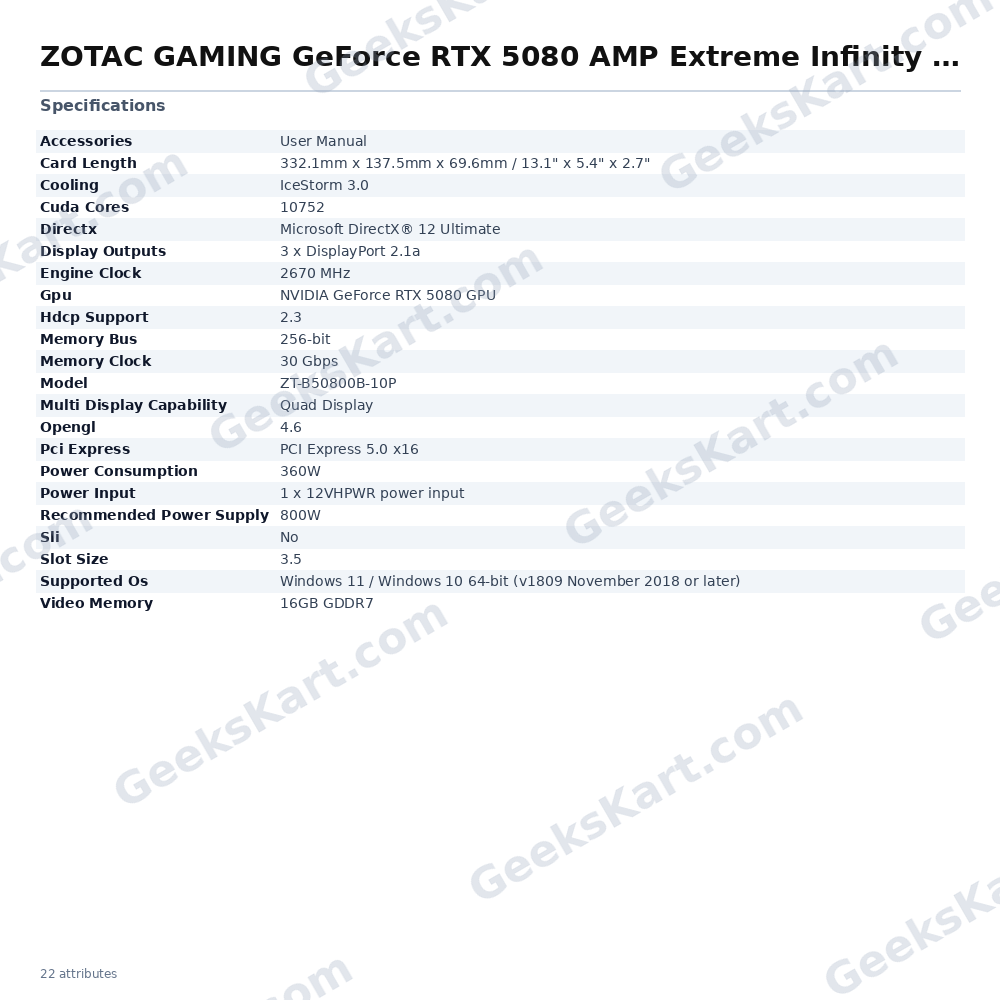

The ZOTAC GAMING GeForce RTX 5080 AMP Extreme Infinity (model ZT-B50800B-10P) is a flagship graphics card built on the NVIDIA Blackwell architecture, delivering support for DLSS 4 and Microsoft DirectX 12 Ultimate. At the heart of the card sit 10,752 CUDA cores paired with 16 GB of GDDR7 video memory across a 256-bit memory bus running at 30 Gbps, providing substantial bandwidth for high-resolution workloads. The engine boost clock reaches 2,670 MHz, and the card connects via a PCI Express 5.0 x16 interface. Cooling is handled by the IceStorm 3.0 Advanced Cooling system, centred around a vapour chamber that is up to 34% larger than the previous generation. BladeLink fans optimise airflow intake while reinforcing structural rigidity. Active Fan Control 2.0 lets each fan be tuned independently, FREEZE Fan Stop keeps the fans stationary during light or idle loads, and a Dual BIOS switch allows toggling between noise-priority and temperature-priority cooling profiles. The AMP Extreme Infinity’s defining visual element is its front-mounted infinity mirror, which uses ARGB lighting to produce a receding-reflection effect. SPECTRA 2.0 RGB lighting covers the card body and supports lighting modes including Glide, Prism, Fusion, and Tide. A dedicated SPECTRA LINK port enables synchronisation with compatible motherboard RGB headers via the included SPECTRA LINK cable. Software control is provided by the updated ZOTAC GAMING FireStorm utility, which offers tuning for clock speeds, memory frequencies, voltage, fan curves, and SPECTRA lighting effects. For durability, a reinforced metal mid-frame runs the full length of the card, and a metal die-cast backplate adds rigidity. A 12VHPWR safety light indicates a fully seated power connector, and the reverse power connector improves cable routing. Despite its flagship tier, the card measures just 332.1 mm × 137.5 mm × 69.6 mm — a 3.5-slot design that is more compact than Zotac’s previous-generation RTX 4090 AMP Extreme. Display outputs consist of three DisplayPort 2.1a ports and one HDMI connector (supporting up to 4K 120 Hz HDR, 8K 60 Hz HDR, and Variable Refresh Rate per the HDMI 2.1b specification), enabling quad-display configurations. HDCP 2.3 is supported. Verified Specifications: — GPU: NVIDIA GeForce RTX 5080 (Blackwell architecture) — CUDA Cores: 10,752 — Video Memory: 16 GB GDDR7 — Memory Bus: 256-bit — Memory Clock: 30 Gbps — Engine Clock: 2,670 MHz — PCI Express: 5.0 x16 — Display Outputs: 3× DisplayPort 2.1a, 1× HDMI 2.1b — Power Consumption: 360 W TDP — Recommended PSU: 800 W — Power Connector: 1× 12VHPWR — DirectX: 12 Ultimate | OpenGL: 4.6 | HDCP: 2.3 — Dimensions: 332.1 mm × 137.5 mm × 69.6 mm (3.5-slot) — OS Support: Windows 11 / Windows 10 64-bit (v1809 or later) — In the box: User manual, 3× 8-pin-to-12VHPWR cable, SPECTRA LINK cable, GPU Support Stand
