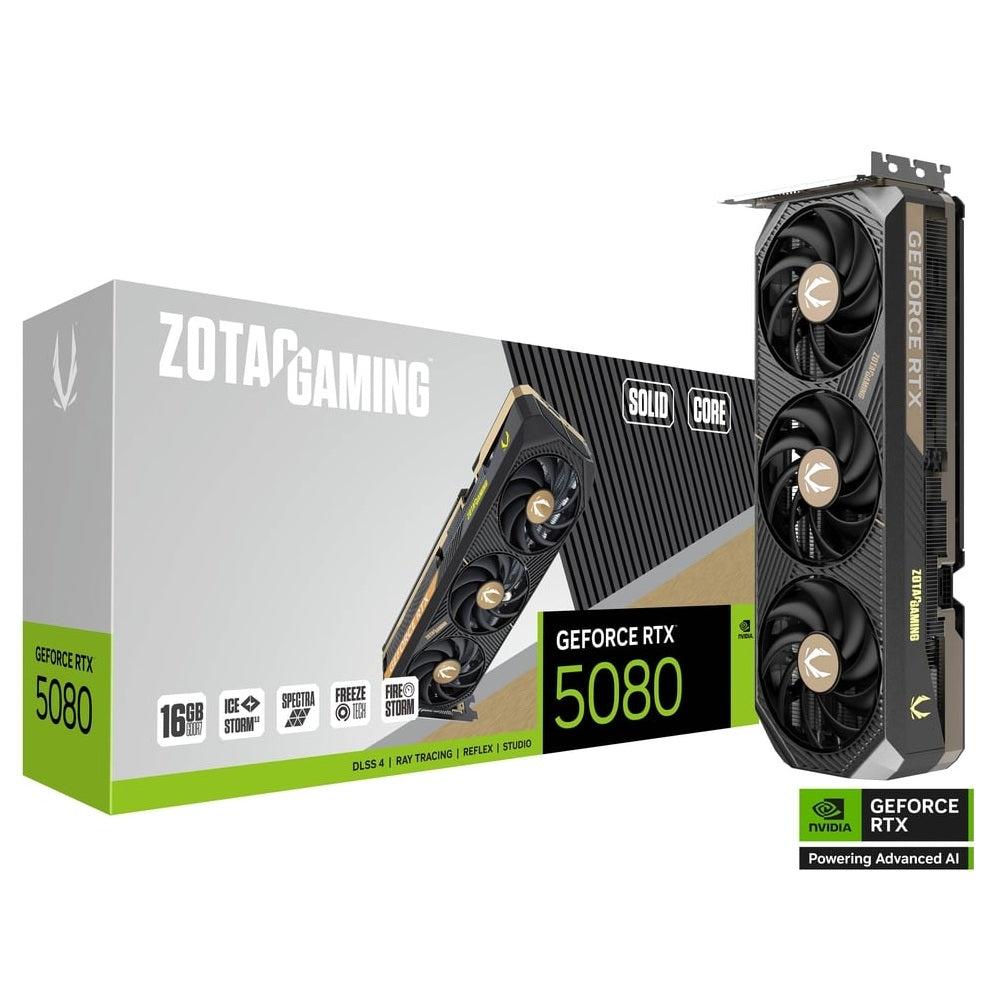

ZOTAC GAMING GeForce RTX 5080 Solid Core 16GB Nvidia Graphic Card

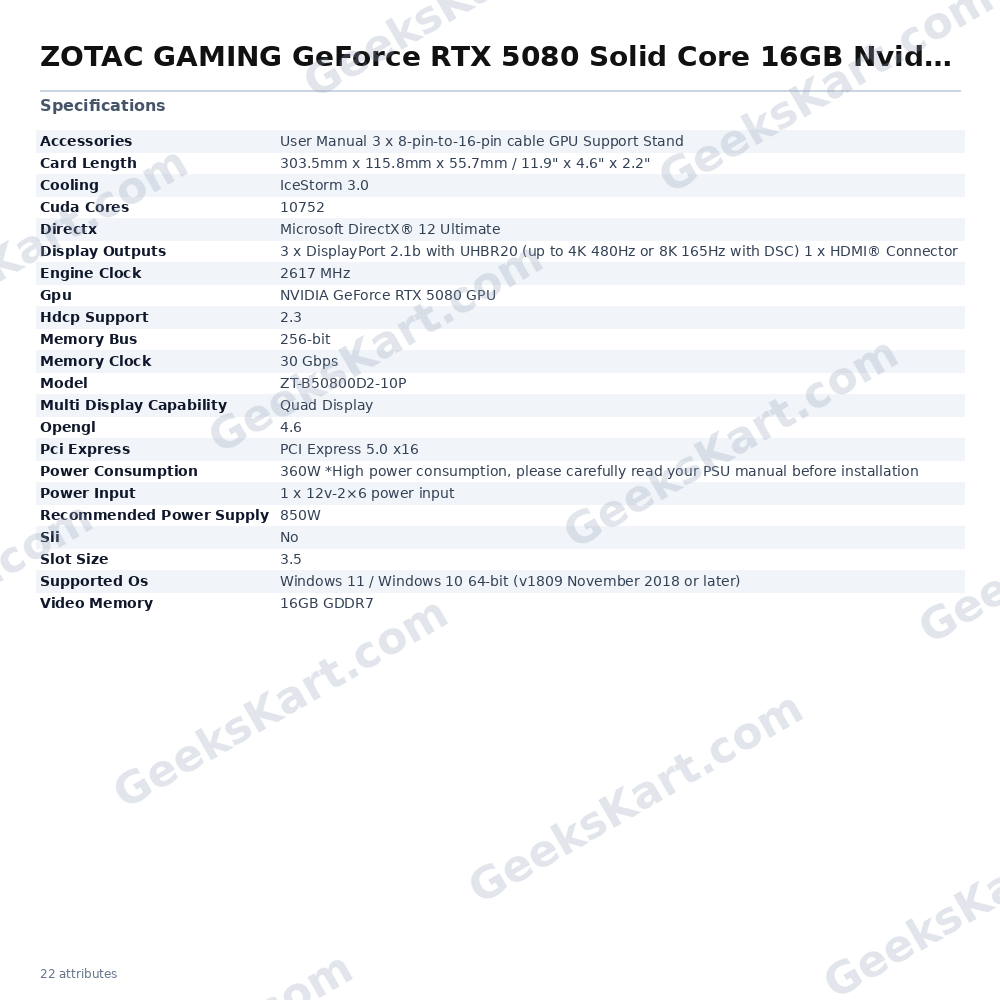

The ZOTAC GAMING GeForce RTX 5080 Solid Core (model ZT-B50800D2-10P) is a high-end desktop graphics card built on NVIDIA’s Blackwell architecture. It pairs 10,752 CUDA cores with 16 GB of GDDR7 video memory running across a 256-bit memory bus at 30 Gbps, delivering substantial bandwidth for demanding 4K gaming and content-creation workloads. The card ships with ZOTAC’s IceStorm 3.0 cooling solution housed in a 3.5-slot chassis measuring 303.5 mm × 115.8 mm × 55.7 mm. An all-metal mid-frame reinforces structural rigidity, and the design is tuned to balance thermal performance with build-system flexibility. There is no SLI support, keeping driver overhead minimal. Display connectivity covers up to four simultaneous outputs: three DisplayPort 2.1b ports with UHBR20 bandwidth — supporting up to 4K at 480 Hz or 8K at 165 Hz with DSC — and one HDMI connector. HDCP 2.3 is supported across all outputs. The card draws power through a single 16-pin (12V-2×6) connector; ZOTAC bundles three 8-pin-to-16-pin adapter cables in the box alongside a GPU support stand and user manual. On the software side, the Blackwell GPU enables NVIDIA DLSS 4, which introduces Multi Frame Generation alongside enhanced Ray Reconstruction and Super Resolution powered by fifth-generation Tensor Cores. NVIDIA Reflex 2’s Frame Warp feature further reduces system latency in competitive titles. Full ray tracing is accelerated by fourth-generation RT Cores, and the ninth-generation NVENC encoder accelerates video export in applications such as DaVinci Resolve and Adobe Premiere Pro. ZOTAC’s FireStorm utility provides clock-speed tuning, voltage and fan-curve adjustments, and SPECTRA RGB lighting control. Verified Specifications: • Model: ZT-B50800D2-10P • GPU: NVIDIA GeForce RTX 5080 (Blackwell) • CUDA Cores: 10,752 • Video Memory: 16 GB GDDR7 • Memory Bus: 256-bit • Memory Clock: 30 Gbps • Engine Clock (boost): 2,617 MHz • PCI Express: PCIe 5.0 x16 • Display Outputs: 3× DisplayPort 2.1b (UHBR20), 1× HDMI • Max Resolution: 4K 480 Hz / 8K 165 Hz (with DSC) • HDCP: 2.3 • Multi-Display: Quad Display • Power Consumption: 360 W (TDP) • Recommended PSU: 850 W • Power Connector: 1× 12V-2×6 (16-pin) • Cooling: IceStorm 3.0 • Slot Size: 3.5 • Card Dimensions: 303.5 mm × 115.8 mm × 55.7 mm • DirectX: 12 Ultimate • OpenGL: 4.6 • Supported OS: Windows 11 / Windows 10 64-bit (v1809 or later) • SLI: Not supported
