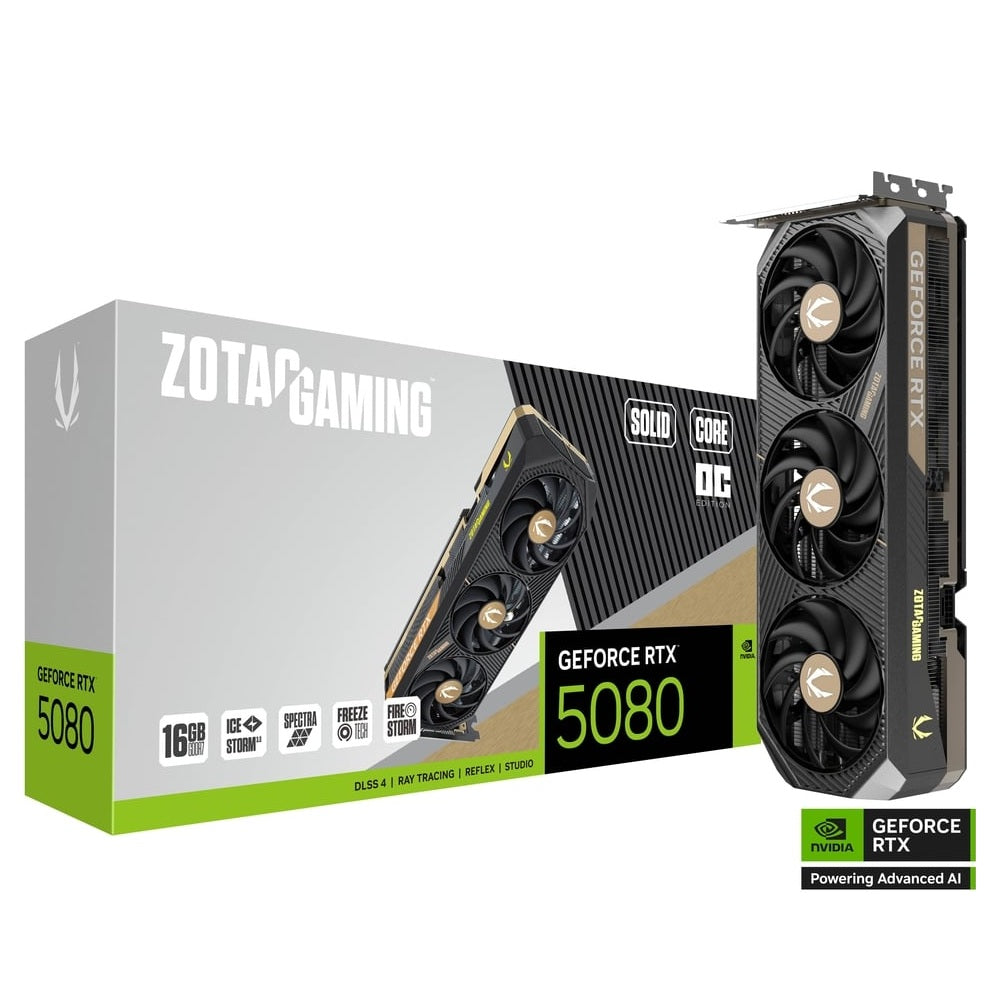

ZOTAC GAMING GeForce RTX 5080 Solid Core OC 16GB Nvidia Graphic Card

The ZOTAC GAMING GeForce RTX 5080 Solid Core OC 16GB is a high-end graphics card built on NVIDIA's Blackwell architecture, designed to deliver a compelling experience across demanding PC gaming workloads and content creation tasks. The card carries the model number ZT-B50800J2-10P and occupies a 3.5-slot footprint measuring 303.5 mm × 115.8 mm × 55.7 mm, making it suitable for most mid-tower and full-tower chassis. At its core, the RTX 5080 GPU houses 10,752 CUDA cores running at a boost clock of 2,640 MHz, supported by 16 GB of GDDR7 video memory across a 256-bit memory bus at 30 Gbps effective bandwidth. The PCIe 5.0 x16 interface ensures maximum throughput from compatible platforms, while the single 12V-2×6 power connector simplifies cable management. ZOTAC specifies a 360 W TDP for this model and recommends a minimum 850 W power supply unit. Cooling is handled by ZOTAC's IceStorm 3.0 thermal solution, which manages heat across the card's 3.5-slot heatsink assembly. The GPU leverages NVIDIA's fourth-generation RT Cores for ray tracing and fifth-generation Tensor Cores that accelerate DLSS 4 — including Multi Frame Generation, enhanced Ray Reconstruction, and Super Resolution. NVIDIA Reflex 2 with Frame Warp is also supported, optimising pipeline latency for competitive gaming. Display connectivity consists of three DisplayPort 2.1b outputs with UHBR20 support (capable of up to 4K at 480 Hz or 8K at 165 Hz with DSC) and one HDMI connector, enabling quad-display operation. HDCP 2.3 is supported. The card is compliant with Microsoft DirectX 12 Ultimate and OpenGL 4.6. On the software side, ZOTAC's FireStorm utility provides clock speed, voltage, fan curve, and SPECTRA RGB lighting control. NVIDIA Studio drivers and Game Ready drivers offer compatibility with creative applications including DaVinci Resolve and Adobe Premiere Pro, powered by the ninth-generation NVENC hardware encoder. SLI is not supported. In the box: user manual, three 8-pin-to-16-pin adapter cables, and a GPU support stand. Verified Specifications: • Model: ZT-B50800J2-10P • GPU: NVIDIA GeForce RTX 5080 (Blackwell) • CUDA Cores: 10,752 • Video Memory: 16 GB GDDR7 • Memory Bus: 256-bit • Memory Bandwidth: 30 Gbps effective • Boost Clock: 2,640 MHz • PCI Express: PCIe 5.0 x16 • Display Outputs: 3× DisplayPort 2.1b (UHBR20) + 1× HDMI • Max Resolution: 4K @ 480 Hz / 8K @ 165 Hz (with DSC) • Power Consumption: 360 W • Recommended PSU: 850 W • Power Connector: 1× 12V-2×6 • Cooling: IceStorm 3.0 • Slot Size: 3.5 • Dimensions: 303.5 mm × 115.8 mm × 55.7 mm • DirectX: 12 Ultimate | OpenGL: 4.6 | HDCP: 2.3 • OS: Windows 11 / Windows 10 64-bit (v1809+)
