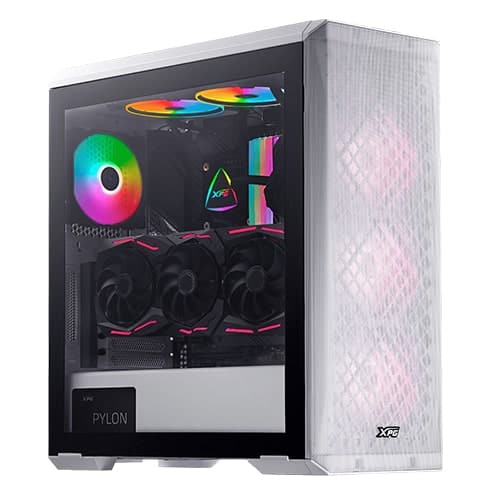

ADATA XPG Defender EATX Mid Tower Cabinet (White)
MPN ADATA-XPG-DEFENDER-WH · Brand ADATA
Features of ADATA XPG Defender EATX Mid Tower Cabinet (White) E-ATX Dimension Chassis with MESH Panel Design ADATA XPG DEFENDER is a full size pc cabinet E-ATX chassis, premium for its spacious layout design and its MESH gaming front panel style. Magnetic MESH Front Panel Design with Detachable Dust Filter Magnetic front panel acts as a frontier dust filter, preventing and tecting any other internal components. Its removable dust filter further blocks out unwanted dusts and ashes. Efficient Airf
Inclusive of GST · GST invoice available
Overview
Features of ADATA XPG Defender EATX Mid Tower Cabinet (White)
E-ATX Dimension Chassis with MESH Panel Design
ADATA XPG DEFENDER is a full size pc cabinet E-ATX chassis, premium for its spacious layout design and its MESH gaming front panel style.
Magnetic MESH Front Panel Design with Detachable Dust Filter
Magnetic front panel acts as a frontier dust filter, preventing and tecting any other internal components. Its removable dust filter further blocks out unwanted dusts and ashes.
Efficient Airflow Design
XPG DEFENDER’s efficient airflow design begins with the MESH front panel, its x3 XPG VENTO 120 included fans, and supports up 360mm Radiator (front) and 280mm Radiator (top).
Perforated Cooling PSU Chamber
PSU is also cooled with the perforated PSU chamber designwith a removable dust filter.
Support Vertical VGA installation
XPG DEFENDER supports vertical VGA installation. Show off your graphic card and other components with lighting effects.
Storage Options
Supports up to x2 2.5” HDD/SSD at the back of the chassis, and x2 2.5”/3.5” Combo Drive at storage bays.
Dimensions and Form Factor
XPG DEFENDER supports E-ATX motherboards with dimensions (HxWxD) of 492 x 220 x 441mm (19.37 x 8.66 x 17.36 inch): CPU Cooler Height Limitation: 170mm Graphic Card Length Limitation: 380mm Graphic Card Vertical Installation
Limitation: 27.3mm PSU Length Limitation: 220mm
Technical Details
Brand: Adata
Model: XPG Defender
Dimension (H*W*D): 492 x 220 x 441mm (19.37 x 8.66 x 17.36 inch)
Color: Exterior & Interior：Black / White
Material: SGCC
Side Panels: 3mm Tempered Glass Side Panel
Form Factor: Mini-ITX, Micro-ATX, ATX, EATX Cabinet, CEB, EEB
3.5" HDD/HDD Tray: 2
2.5" HDD/SSD Tray: 2+2 (Combo 3.5”/2.5”)
I/O Port: x2 USB 3.0: x1 Hybrid Audio Port
Fan Included: Front: 2 x XPG VENTO 120 Fan, Rear: 1 x XPG VENTO 120 Fan
Fan Support: Front: 120mm x3, 140mm x2, Top: 120mm x2, 140mm x2, Rear: 120mm x1
Radiator Support: Front: 360 / 280 / 240mm, Top: 280 / 240 / 120mm, Rear: 120mm
Clearance: CPU Cooler Height Limitation: 170mm, Graphic Card Length Limitation: 380mm, Graphic Card Vertical Installation Limitation: 27.3mm, PSU Length Limitation: 220mm
Specifications of ADATA XPG Defender EATX Mid Tower Cabinet (White)
| Model | |
| Brand | ADATA |
| Model | XPG Defender |
| Spec | |
| Type | Mid Tower chassis |
| Color | White |
| Case Material | SGCC |
| Motherboard Compatibility | Mini ITX, Micro ATX, ATX, E-ATX |
| Expansion | |
| External 3.5" Drive Bays | 2 |
| Expansion Slots | 7 |
| Front Ports | |
| Front Ports | 2 x USB 3.0 |
| Cooling System | |
| 120mm Fans | 3 x 120mm |
| 140mm Fans | 2 |
| Physical Spec | |
| Dimensions | 492 x 220 x 441mm (19.37 x 8.66 x 17.36 inch) |
| Weight | 9 kg |
Datasheet
| Color | White |
|---|---|
| Model | XPG Defender |
| Weight | 9 kg |
| 120Mm Fans | 3 x 120mm |
| 140Mm Fans | 2 |
| Dimensions | 492 x 220 x 441mm (19.37 x 8.66 x 17.36 inch) |
| Front Ports | 2 x USB 3.0 |
| Case Material | SGCC |
| Expansion Slots | 7 |
| External 3.5" Drive Bays | 2 |
| Motherboard Compatibility | Mini ITX, Micro ATX, ATX, E-ATX |
