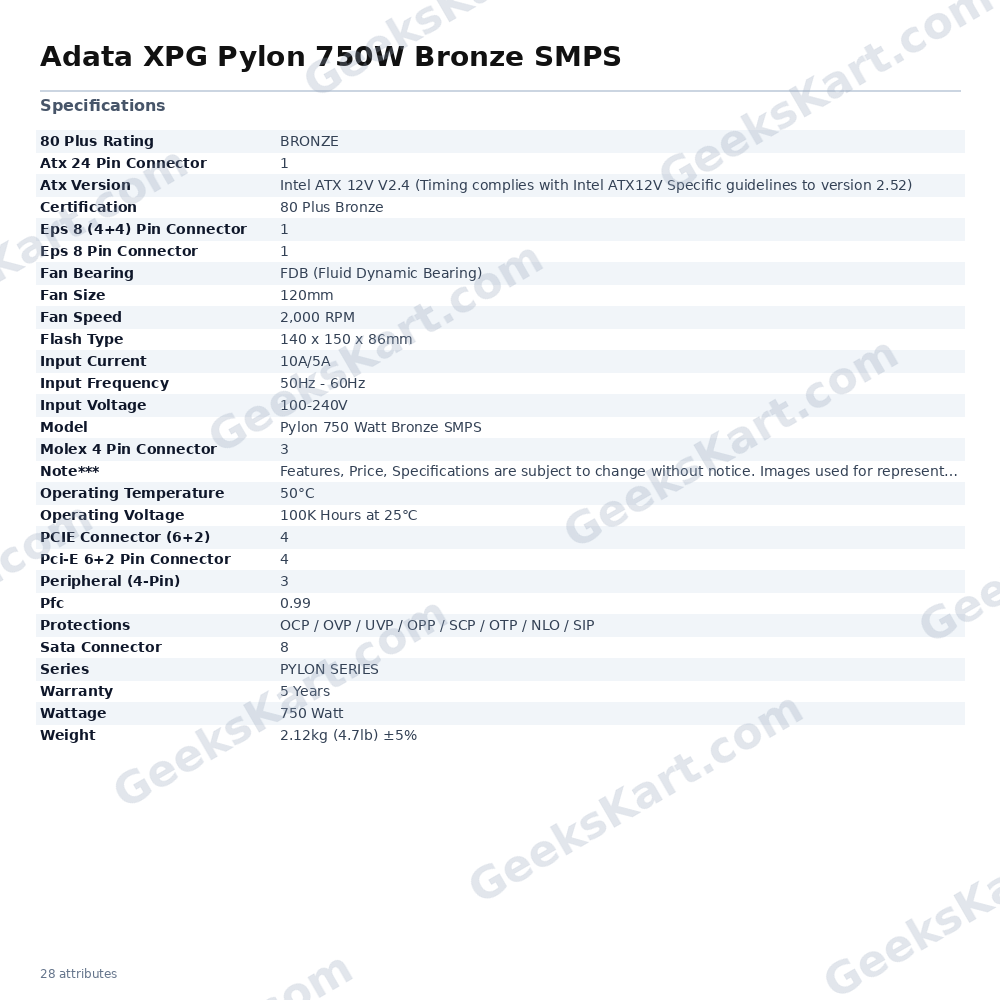

Adata XPG Pylon 750W Bronze SMPS

The ADATA XPG Pylon 750W is a non-modular ATX power supply designed for mid to high-end desktop PC builds that demand reliable, efficient power delivery around the clock. Built around a DC-to-DC conversion architecture, the Pylon 750W draws 100% of its secondary rail power from the +12V rail, ensuring stable voltage delivery to demanding CPUs and discrete graphics cards alike. This design approach reduces ripple noise and cross-load variation compared to traditional group-regulated designs. The unit carries an 80 Plus Bronze certification, confirming independently verified efficiency of at least 82% at 20% load, 85% at 50% load, and 82% at 100% load. It is also certified under the Cybenetics ETA (efficiency) and LAMBDA (acoustic) standards, placing it among the quieter and more efficient units in its category. Compliance with ErP 2014 Lot 3 ensures low standby power consumption for energy-conscious users. Cooling is handled by a 120 mm Fluid Dynamic Bearing (FDB) fan that spins up from approximately 700 RPM at 25 °C ambient and holds low speed until roughly 70% load, keeping acoustics minimal during light to moderate workloads. The main capacitor is sourced from a Japanese manufacturer and rated to 105 °C, supporting long-term durability in warm chassis environments. Safety is addressed through eight discrete protection circuits: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), No Load Operation (NLO), and Surge & Inrush Protection (SIP). The unit ships with a manufacturer-backed 5-year warranty. Verified Specifications: - Wattage: 750 W continuous - 80 Plus Rating: Bronze - ATX Standard: Intel ATX 12V V2.4 (timing complies with ATX12V v2.52 guidelines) - Dimensions: 140 × 150 × 86 mm - Weight: 2.12 kg (±5%) - Fan: 120 mm FDB, up to 2,000 RPM max - PFC: 0.99 (Active) - Input Voltage: 100–240 V AC - Input Frequency: 50–60 Hz - Input Current: 10 A / 5 A - Operating Temperature: up to 50 °C - MTBF: 100,000 hours at 25 °C - Connectors: ATX 24-pin ×1, EPS 8-pin ×1, EPS 4+4-pin ×1, PCIe 6+2-pin ×4, SATA ×8, Molex 4-pin ×3 - Protections: OCP, OVP, UVP, OPP, SCP, OTP, NLO, SIP - Certifications: 80 Plus Bronze, CE, UKCA, CB, FCC (IC), EAC, CCC, TUV, cTUVus, TUV S-Mark, RCM, NOM, BSMI, KC - Modular: Non-modular - Warranty: 5 years
