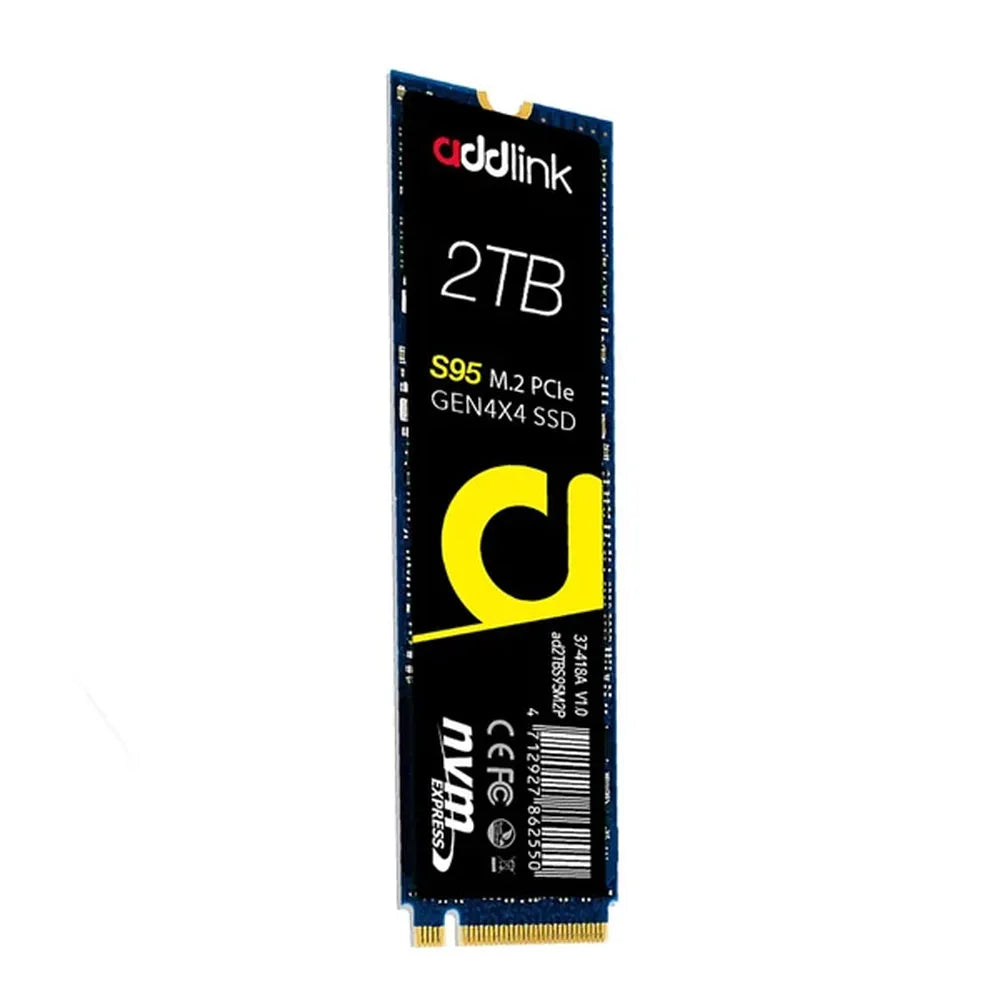

ADDLINK S95 2TB M.2 NVMe Gen4 Internal Solid State Drive ( SSD )

The Addlink S95 2TB is a high-performance M.2 2280 internal solid-state drive built on the PCIe Gen4x4 NVMe 1.4 interface. Designed for users who demand fast sequential throughput, the S95 2TB (model AD2TBS95M2P) delivers sequential read and write speeds of up to 7000 MB/s and 6800 MB/s respectively, making it a strong choice for gaming rigs, creative workstations, and enthusiast PC builds that require rapid file transfers and fast application load times. Underpinning the S95’s performance is 3D TLC NAND flash paired with an external DDR4 @2666 MHz DRAM cache. This cache-assisted architecture helps sustain consistent throughput during mixed workloads and large sequential transfers. The drive is also backwards compatible with PCIe Gen3x4 platforms, so it can be installed in older systems and will operate at Gen3 speeds when a Gen4 slot is unavailable. Endurance and reliability are addressed through a rated 1,400 TBW (terabytes written) and a mean time between failures (MTBF) of 1.8 million hours. Addlink backs the drive with a 5-year or 1,400 TBW warranty, whichever comes first. The controller integrates SmartECC™ and SmartRefresh™ technologies for error correction and data integrity, alongside advanced flash management features including Wear Leveling, Bad Block Management, TRIM, SMART monitoring, and Over-Provisioning. Thermal throttling and end-to-end data path protection further contribute to sustained operation within the rated 0 °C to 70 °C operating temperature range. The M.2 2280 form factor (80 mm × 22 mm × 3.5 mm, dimensions noted for 1TB variant in source data) fits standard M.2 slots found on most modern motherboards from major manufacturers. The drive ships without a heatsink, so users with motherboard-integrated heatsink covers can apply those directly. Addlink also provides a free SSD Toolbox application that enables users to view drive information and firmware version, run diagnostics, check SMART status, monitor drive health, and perform secure erase operations. Key Specifications: – Model: AD2TBS95M2P – Capacity: 2 TB – Form Factor: M.2 2280 – Interface: NVMe 1.4, PCIe Gen4x4 (backwards compatible with PCIe Gen3x4) – NAND Flash: 3D TLC – DRAM Cache: External DDR4 @2666 MHz – Sequential Read: up to 7000 MB/s (1TB variant; 2TB figure not separately confirmed in source) – Sequential Write: up to 6800 MB/s – Endurance: 1400 TBW – MTBF: 1.8 million hours – Operating Temperature: 0 °C – 70 °C – Storage Temperature: -40 °C – 85 °C – Warranty: 5 years or 1400 TBW
