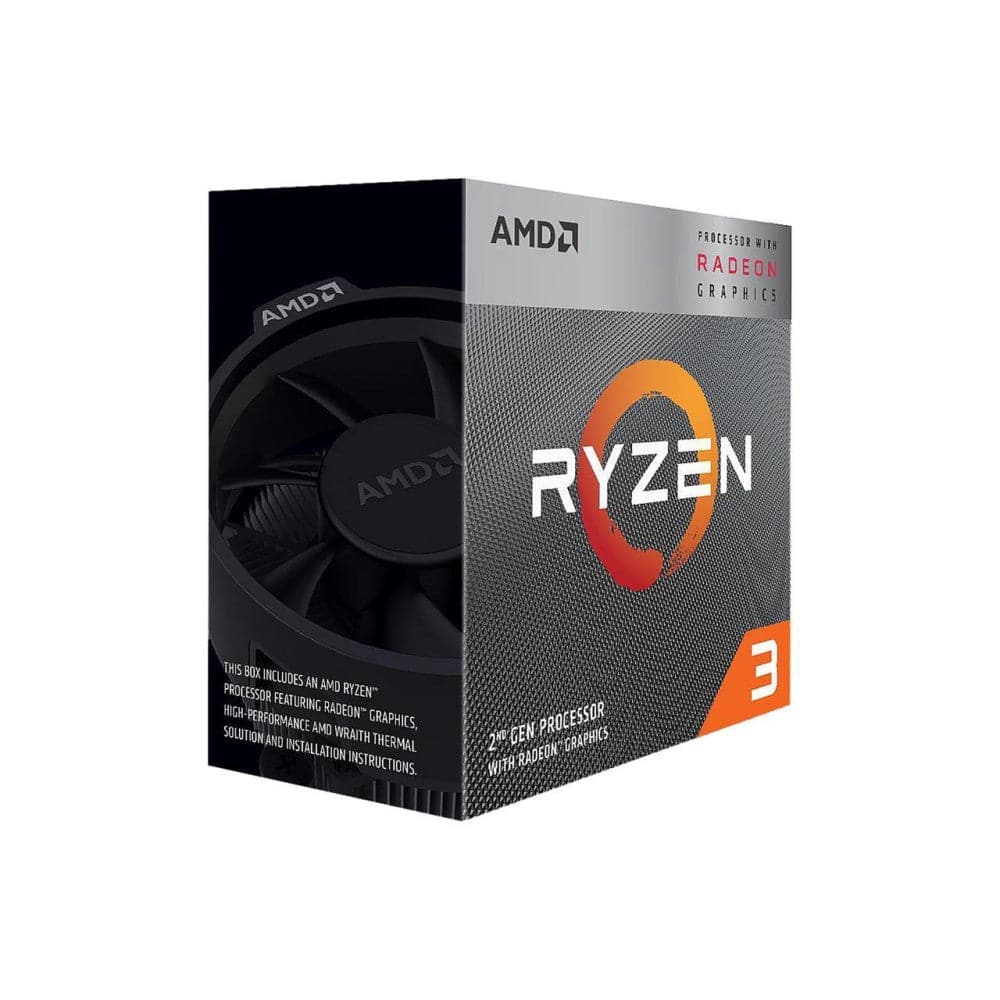

AMD Ryzen 3 3200G 3rd Generation Processor ( 4GHz / 4 Cores / 4 Threads )
MPN AMD-RYZEN-3-3200G-APU · Brand AMD
The AMD Ryzen 3 3200G is a quad-core AM4 APU with Radeon Vega 8 integrated graphics, a 3.6–4.0 GHz clock range, and a 65W TDP — ideal for budget desktop builds that don't require a discrete GPU
Inclusive of GST · GST invoice available
Overview
The AMD Ryzen 3 3200G is a desktop APU (Accelerated Processing Unit) built on AMD's AM4 platform, combining a quad-core CPU with integrated Radeon Vega 8 graphics in a single package. It is a practical choice for users who want a capable, all-in-one computing solution without the added cost of a discrete graphics card. On the CPU side, the Ryzen 3 3200G features 4 cores and 4 threads, with a base clock speed of 3.6 GHz that boosts up to 4.0 GHz under load. This configuration handles everyday productivity tasks such as web browsing, document editing, media playback, and light multitasking with ease. The processor is unlocked, allowing enthusiasts to explore overclocking within the limits of their cooling setup. The integrated Radeon Vega 8 graphics engine includes 8 compute units running at up to 1250 MHz, enabling light gaming and hardware-accelerated video playback without a dedicated GPU. Display output is available via DisplayPort and HDMI, supporting modern monitors out of the box. The Ryzen 3 3200G supports dual-channel DDR4 memory at up to 2933 MHz across two memory channels, helping to maximise integrated graphics performance since the iGPU shares system RAM. The processor ships with AMD's Wraith Stealth cooler, which keeps thermals in check under typical workloads within its 65W TDP envelope (configurable down to 45W via cTDP). Fabricated on a 12nm FinFET process, this APU fits the widely available AM4 socket, making it compatible with a broad range of B350, B450, X370, and X470 motherboards (with appropriate BIOS updates). PCIe 3.0 x8 connectivity is supported for add-in cards. Verified Specifications: - Model: AMD Ryzen 3 3200G | Part Number: YD3200C5FHBOX - CPU Cores / Threads: 4 / 4 - Base Clock: 3.6 GHz | Max Boost Clock: 4.0 GHz - Integrated Graphics: Radeon Vega 8 (8 CUs, 1250 MHz) - L1 Cache: 384 KB | L2 Cache: 2 MB | L3 Cache: 4 MB - Process Node: 12nm FinFET | Socket: AM4 - TDP: 65W (cTDP: 45–65W) | Max Operating Temp: 95°C - Memory: DDR4 up to 2933 MHz, Dual-Channel - PCIe: 3.0 x8 | Thermal Solution: Wraith Stealth - Display Output: DisplayPort, HDMI - Unlocked Multiplier: Yes - Warranty: 3 Years
Datasheet
| Cmos | 12nm FinFET |
|---|---|
| Hdmi | Yes |
| Ctdp | 45-65W |
| Package | AM4 |
| Unlocked | YES |
| Max Temps | 95°C |
| Base Clock | 3.6GHz |
| Display Port | Yes |
| Product Code | YD3200C5FHBOX |
| # Of Gpu Cores | 8 |
| Integrated Graphics | Radeon™ Vega 8 Graphics |
| Total L1 Cache | 384KB |
| Total L2 Cache | 2MB |
| Boost Clock | 4GHz |
| Memory Channels | 2 |
| Thermal Solution | Wraith Stealth |
| Default Tdp / Tdp | 65W |
| Graphics Frequency | 1250 MHz |
| Graphics Core Count | 8 |
| Pci Express® Version | PCIe 3.0 x8 |
| System Memory Specification | 2933MHz |
| Memory Type | DDR4 |
| Warranty | 3 Years |
| Cores | 4 |
| Threads | 4 |
| Cache | 4MB |
