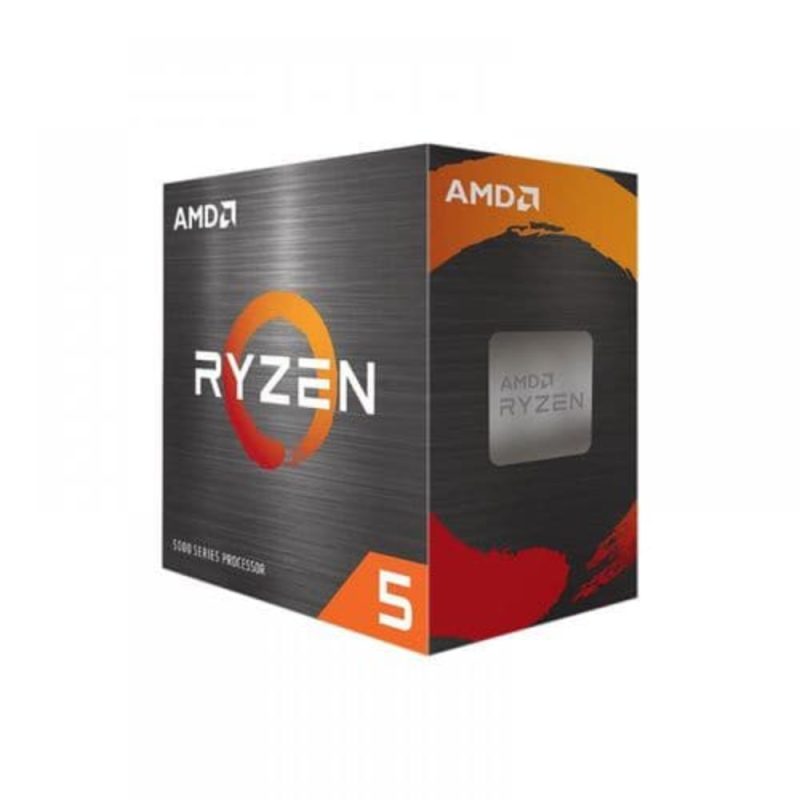

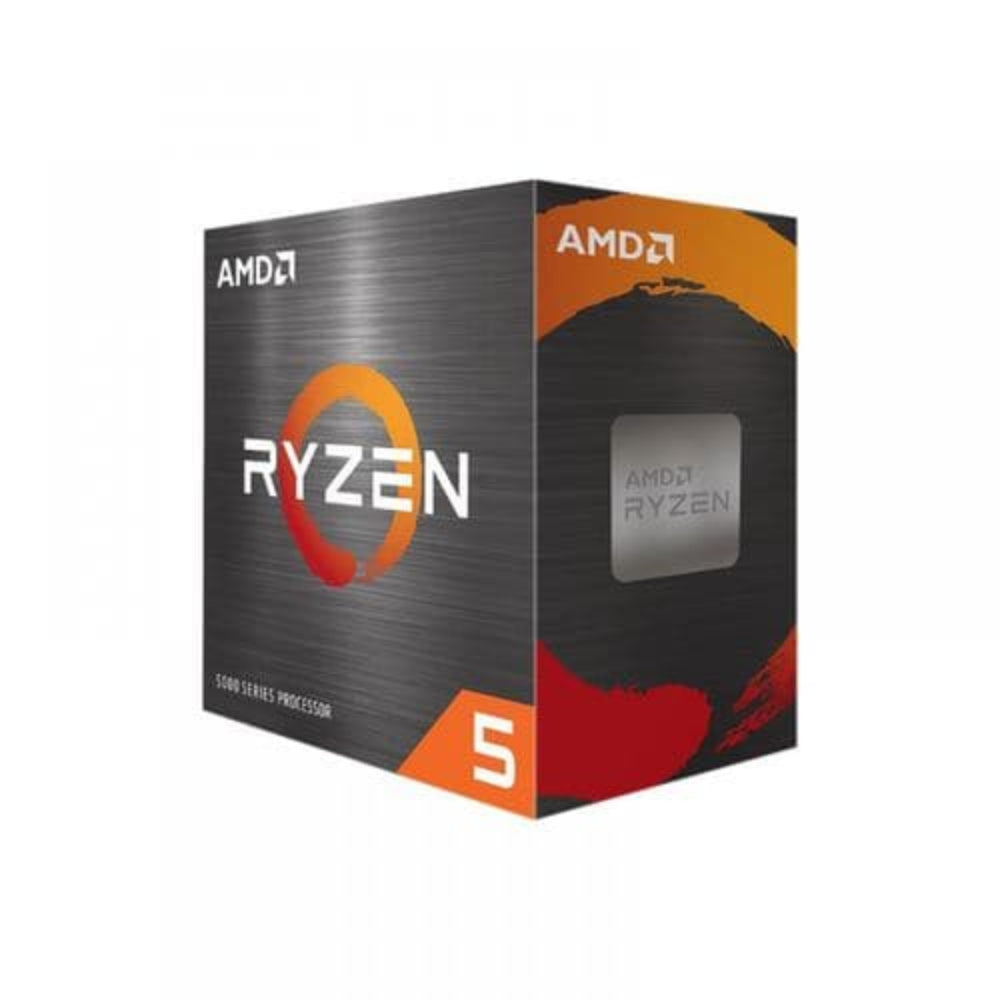

AMD Ryzen 5 5600F 5th Generation Processor ( 4 GHz / 6 Cores / 12 Threads )

The AMD Ryzen 5 5600F is a mainstream desktop processor built on the Zen 3 microarchitecture (codename Vermeer) and fits the widely adopted AM4 socket, making it an accessible upgrade option for a large number of existing platforms. It delivers 6 physical cores and 12 threads through AMD Simultaneous Multithreading (SMT), enabling smooth multi-tasking and responsive performance across productivity, content creation, and gaming workloads. The processor operates at a base clock of 3 GHz and can boost up to 4 GHz via AMD Precision Boost 2 technology, which dynamically adjusts frequency based on workload demand, thermal headroom, and power budget. With 384 KB of L1 cache, 3 MB of L2 cache, and a generous 32 MB of L3 cache, the Ryzen 5 5600F benefits from the Zen 3 architecture’s unified cache topology, reducing latency and improving data throughput for core-sensitive tasks. The CPU cores are fabricated on TSMC’s 7nm FinFET process, while the I/O die uses GlobalFoundries’ 12nm node. This chiplet design — comprising a 74 mm² Compute Die (CCD) and a 125 mm² I/O Die (IOD) — provides an efficient balance between performance and power. The default TDP is 65W, keeping thermal and power demands modest. A Wraith Stealth cooler is included in the box. The Ryzen 5 5600F supports dual-channel DDR4 memory up to 3200 MT/s officially, with a maximum capacity of 128 GB using UDIMM modules. ECC memory is supported where the motherboard also provides support. Connectivity is handled via PCIe 4.0, offering 24 total PCIe lanes (20 usable) along with 4 native USB 3.2 Gen 2 (10 Gbps) ports and 2 native SATA ports. NVMe storage is supported in Boot, RAID 0, RAID 1, and RAID 10 configurations. This processor does not include integrated graphics; a discrete GPU is required. The multiplier is unlocked, enabling straightforward overclocking. Supported instruction set extensions include AVX, AVX2, AES, AMD-V, FMA3, SHA, and SSE4.2, among others. AVX-512 is not supported. Hardware virtualisation (AMD-V) is enabled, making it suitable for VM workloads. Compatible chipsets include X570, X470, X370, B550, B450, B350, and A520. OS support covers Windows 11 (64-bit), Windows 10 (64-bit), RHEL x86 64-bit, and Ubuntu x86 64-bit. Maximum operating temperature (Tjmax) is 95°C. Key Verified Specifications: • Architecture: Zen 3 (Vermeer) | Socket: AM4 • Cores / Threads: 6 / 12 • Base Clock: 3 GHz | Boost Clock: up to 4 GHz • L1 Cache: 384 KB | L2 Cache: 3 MB | L3 Cache: 32 MB • TDP: 65W | Tjmax: 95°C • Process Node: TSMC 7nm FinFET (CCD), 12nm GlobalFoundries (IOD) • Memory: DDR4 dual-channel, up to 3200 MT/s, max 128 GB • PCIe: 4.0, 24 lanes total / 20 usable • Integrated Graphics: None (discrete GPU required) • Unlocked Multiplier: Yes | Cooler Included: Wraith Stealth
